New

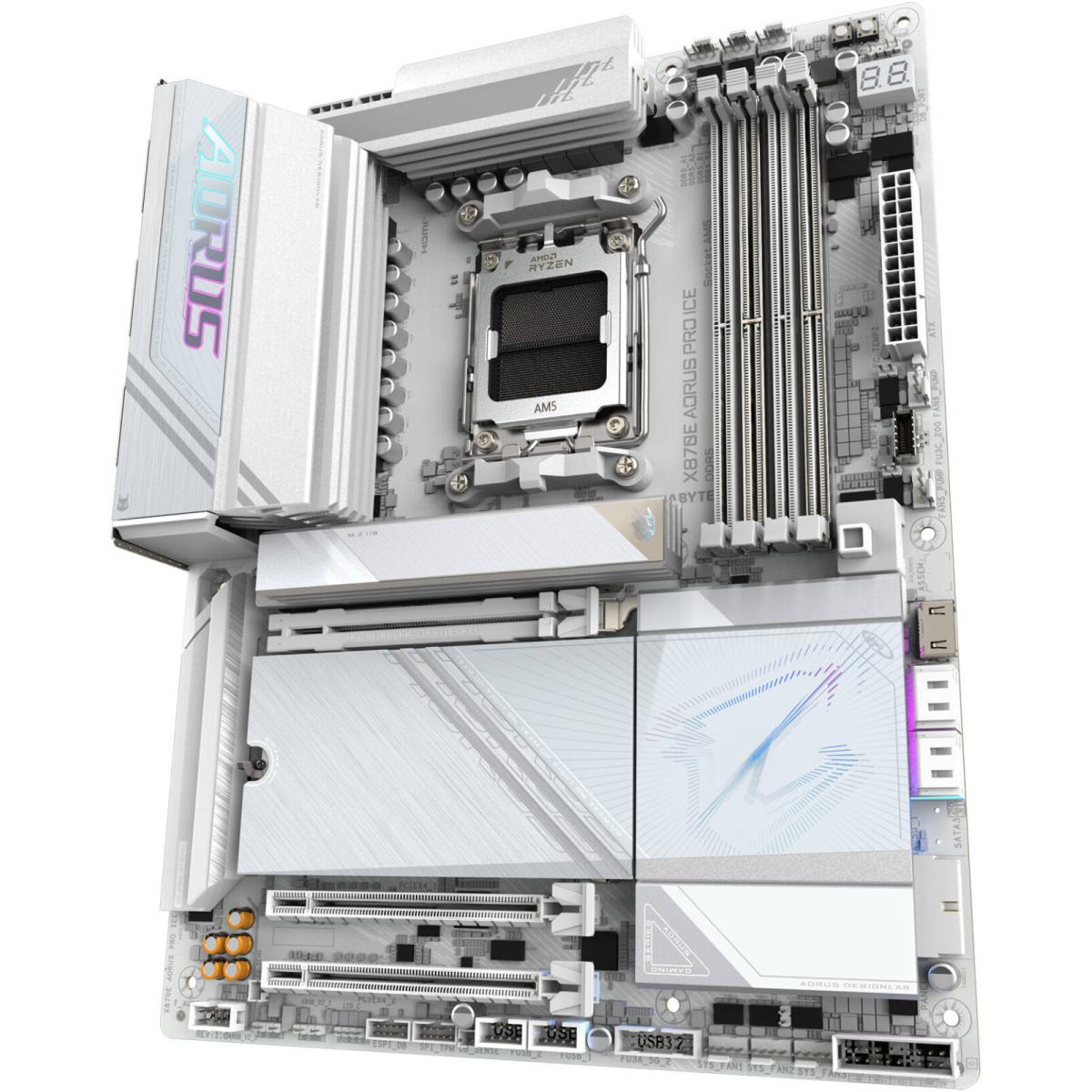

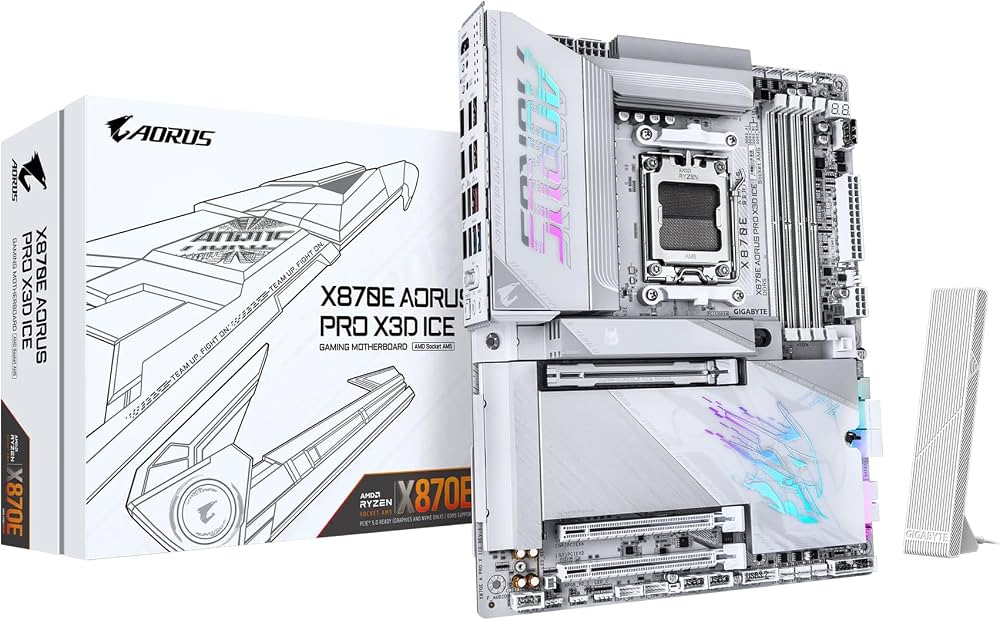

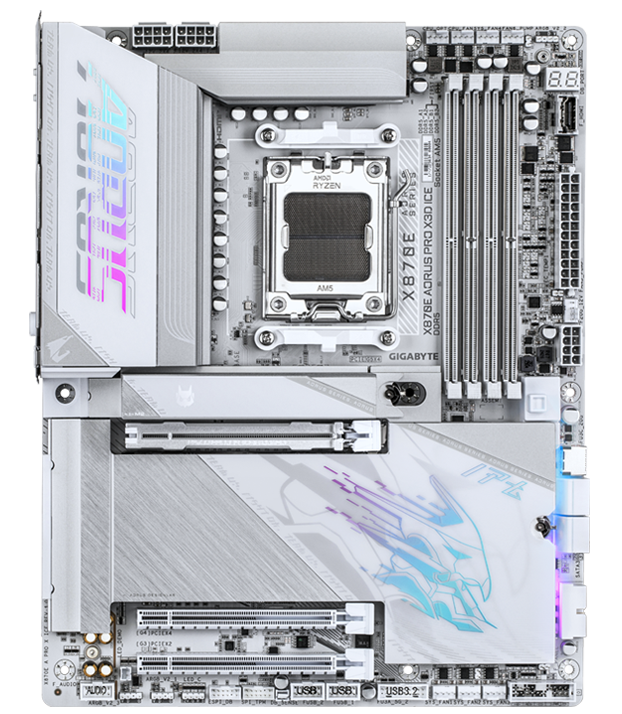

GIGABYTE X870E AORUS PRO X3D ICE ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slots, 4x M.2 Slots

Gigabyte

GIGABYTE X870E AORUS PRO X3D ICE ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slots, 4x M.2 Slots

1 year warranty

  • Availability: In Stock
459.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • AORUS • ICE
X870E AORUS PRO X3D ICE
AMD X870E • AM5 • DDR5 • ATX • WHITE EDITION
A premium white AMD AM5 gaming motherboard designed for high-performance Ryzen systems, featuring PCIe 5.0 graphics, four M.2 NVMe slots, DDR5 memory support, USB4 connectivity, advanced AORUS thermal engineering and X3D gaming technologies.
ICE AM5 X870E DDR5 PCIe 5.0 X3D
AM5 CPU SOCKET
256GB MAX DDR5
4× M.2 SLOTS
PCIe 5.0 GPU INTERFACE
AORUS X3D ICE PLATFORM

Extreme Gaming Performance. Signature ICE Design.

The X870E AORUS PRO X3D ICE combines AMD X870E platform technology with high-speed DDR5 memory, PCIe 5.0 graphics, four M.2 storage interfaces and USB4 connectivity inside a striking white AORUS ICE design.

01

X3D Gaming Technology

Designed for AMD Ryzen X3D processors with dedicated AORUS performance technologies for high-end gaming and demanding workloads.

02

PCIe 5.0 Graphics

The primary PCIe x16 slot supports PCIe 5.0 x16 with GIGABYTE PCIe UD Slot reinforcement for modern high-performance graphics cards.

03

Four M.2 NVMe Slots

Four M.2 connectors provide extensive NVMe storage expansion, with two CPU-connected PCIe 5.0 slots and two chipset-connected PCIe 4.0 slots.

AORUS X3D ICE

White Performance. No Compromise.

Built for powerful AMD gaming systems with PCIe 5.0, high-speed DDR5, four M.2 slots, USB4 and advanced AORUS thermal and power technologies.

256GB MAX DDR5
PCIe 5.0 GPU SLOT
4× M.2 STORAGE
40Gbps USB4

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E
Platform
AMD AM5
Gaming Technology
X3D Turbo Mode
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Architecture
Dual Channel
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
On-Die ECC
Supported
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot Mode
x16
Primary Slot Source
CPU
Secondary PCIe Slot
1 × PCIe 4.0 x16
Secondary Slot Mode
x4
Third PCIe Slot
1 × PCIe 3.0 x16
Third Slot Mode
x2
PCIe Reinforcement
PCIe UD Slot
Storage
M.2 Slots
4 × M.2
M2A_CPU
PCIe 5.0 x4/x2
M2B_CPU
PCIe 5.0 x4/x2
M2C_SB
PCIe 4.0 x4/x2
M2D_SB
PCIe 4.0 x4/x2
M.2 Form Factors
25110 / 22110 / 2580 / 2280
SATA
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 10
RAID 5
Available with AMD Ryzen 9000 Series
M2B_CPU Sharing
Shares Bandwidth with ASMedia USB4 Controller
USB Connectivity
USB4
2 × USB-C — 40Gbps
Rear USB-C
1 × USB 3.2 Gen 2
Rear USB 3.2 Gen 2 Type-A
5 ×
Rear USB 3.2 Gen 1
3 ×
Front USB-C
USB 3.2 Gen 2x2 — Up to 20Gbps
USB-C Fast Charging
Up to 65W PD 3.0 / QC 4+
Internal USB 3.2 Gen 1
4 × Ports via Headers
Internal USB 2.0
4 × Ports via Headers
Display Outputs
USB4 Display
2 × USB-C DisplayPort
USB4 Maximum Resolution
3840 × 2160 @ 240Hz
DisplayPort Standard
DisplayPort 1.4
HDMI
1 × HDMI 2.1
HDMI Maximum Resolution
4096 × 2160 @ 60Hz
Networking
Wireless
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Wireless Bands
2.4GHz / 5GHz / 6GHz
Wireless Standard
802.11be
Wireless Technology
2×2 Wi-Fi 7
Audio
Audio Codec
Realtek High Definition Audio
Audio Channels
High Definition Audio
Digital Audio
S/PDIF Out
Rear I/O
USB4
2 × USB-C — 40Gbps
USB-C
1 × USB 3.2 Gen 2
USB 10Gbps Type-A
5 ×
USB 5Gbps
3 × USB 3.2 Gen 1
Wireless
Wi-Fi 7 + Bluetooth 5.4
Display
HDMI 2.1 + USB4 DisplayPort
Audio
Audio Connectors + S/PDIF
BIOS Update
Q-Flash Plus
Cooling & Thermal Design
VRM Cooling
Advanced AORUS VRM Heatsink
M.2 Cooling
M.2 Thermal Guard
Chipset Cooling
Chipset Heatsink
Fan Control
Smart Fan 6
Fan Management
PWM / DC Fan Control
AORUS Features & EZ DIY
PCIe Reinforcement
PCIe UD Slot
BIOS Update
Q-Flash Plus
Gaming Technology
X3D Turbo Mode
Memory Technology
AMD EXPO / Intel XMP
System Management
GIGABYTE Control Center
Fan Management
Smart Fan 6
RGB & ICE Design
RGB System
RGB Fusion
Addressable RGB
Addressable LED Headers
Lighting Software
GIGABYTE Control Center
Edition
AORUS ICE White Edition
BIOS & Software
BIOS
AMI UEFI BIOS
BIOS Flash
Q-Flash / Q-Flash Plus
System Software
GIGABYTE Control Center
Backup Software
Smart Backup
Operating System
Supported OS
Windows 11 64-bit
Additional Support
Windows 10 64-bit
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Color
White / ICE
Product Identification
Model
X870E AORUS PRO X3D ICE
Brand
GIGABYTE
Series
AORUS
Chipset
AMD X870E
Platform
AMD AM5
Edition
ICE / White
Form Factor
ATX
GIGABYTE X870E AORUS PRO X3D ICE AMD X870E • AM5 • DDR5 • PCIe 5.0 • 4× M.2 • X3D Gaming • USB4 • ICE WHITE • ATX
