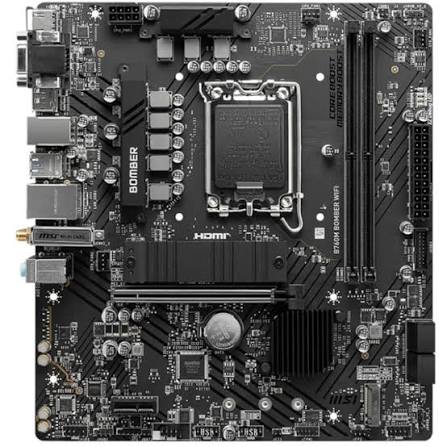

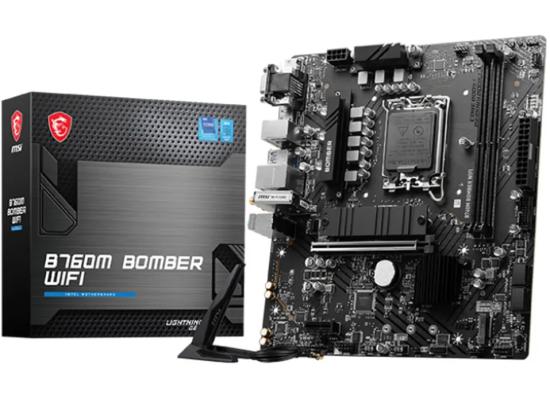

MSI B760M BOMBER WIFI DDR5 Intel 14th/13th Gen Motherboard PCIe 4.0 DDR5 2xM.2 Gen4 x4 PCIe 4.0 Mainboard

1 year warranty

Availability: In Stock

110.000 JOD

Order Via WhatsApp Get offer by email

SH Certified / inspected
Delivery across Jordan
1 year warranty
Expert help on WhatsApp

Product Specifications

Full technical details for this system

MSI • BOMBER SERIES

B760M BOMBER WIFI

INTEL B760 • LGA1700 • DDR5 • WI-FI 6E • MICRO ATX

A gaming-focused Micro ATX motherboard built for Intel Core processors, featuring DDR5 Memory Boost, PCIe 4.0 graphics, dual Lightning Gen4 M.2 slots, 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3 and MSI's performance-enhancing technologies.

MSI BOMBER LGA1700 B760 DDR5 WI-FI 6E 2.5G LAN

LGA1700 CPU SOCKET

128GB MAX DDR5

2× M.2 GEN4 x4

2.5GbE LAN

MSI BOMBER GAMING PLATFORM

Fast Connectivity. Gaming-Ready Performance.

The B760M BOMBER WIFI combines Intel's B760 platform with high-speed DDR5 memory, PCIe 4.0 expansion, dual Gen4 NVMe storage, 2.5Gb networking and Wi-Fi 6E connectivity in a compact Micro ATX gaming motherboard.

Intel LGA1700 Platform

Supports Intel Core processors from the 14th, 13th and 12th generations, plus compatible Pentium Gold and Celeron processors.

Dual Gen4 NVMe

Two PCIe 4.0 x4 M.2 slots provide high-speed storage connectivity with up to 64Gbps theoretical bandwidth.

Wi-Fi 6E + 2.5G LAN

Intel Wi-Fi 6E and Realtek 2.5Gb Ethernet provide fast, low-latency wired and wireless connectivity for gaming and high-speed networking.

MSI B760M BOMBER WIFI

Built to Game. Built to Connect.

A compact gaming platform featuring DDR5-6400+ support, PCIe 4.0, Lightning Gen4 M.2 storage, 2.5G LAN and next-generation Wi-Fi 6E wireless connectivity.

128GB MAX DDR5

6400+ MT/s OC

2× M.2 GEN4 x4

Wi-Fi 6E WIRELESS

Technical Specifications

Processor & Chipset

CPU Socket

Intel LGA1700

Processor Support

Intel Core 14th / 13th / 12th Gen

Additional CPU Support

Intel Pentium Gold / Celeron

Chipset

Intel B760

DDR5 Memory

Memory Type

DDR5

Memory Slots

2 × DDR5 DIMM

Maximum Capacity

128GB

Memory Architecture

Dual-Controller Dual-Channel

Maximum OC Speed

DDR5-6400+ MT/s

1DPC 1R

Up to 6400+ MT/s

1DPC 2R

Up to 5600+ MT/s

JEDEC Speed

DDR5-5600 / 5400 / 5200 / 5000 / 4800

Memory Profiles

Intel XMP 3.0

Memory Type

Non-ECC Unbuffered

PCI Express & Expansion

Primary PCIe Slot

1 × PCIe 4.0 x16

Primary Slot Source

CPU

Secondary PCIe Slot

1 × PCIe 4.0 x1

Secondary Slot Source

Intel B760 Chipset

GPU Protection

PCIe Steel Armor

Storage

M.2 Slots

2 × M.2 Key M

M.2_1 Interface

PCIe 4.0 x4

M.2_1 Source

CPU

M.2_1 Sizes

2242 / 2260 / 2280

M.2_2 Interface

PCIe 4.0 x4 / SATA Mode

M.2_2 Source

Intel B760 Chipset

M.2_2 Sizes

2242 / 2260 / 2280

M.2 Bandwidth

Up to 64Gbps

SATA

4 × SATA 6Gb/s

Storage RAID

RAID 0 / 1 / 5 / 10

Storage Note

SATA7 unavailable when M.2 SATA SSD is installed in M.2_2

Networking

LAN Controller

Realtek RTL8125B

LAN Speed

2.5Gbps

Wireless

Intel Wi-Fi 6E

Wi-Fi Bands

2.4GHz / 5GHz / 6GHz

Wi-Fi Channel Width

Up to 160MHz

Wi-Fi Maximum Speed

Up to 2.4Gbps

Bluetooth

Bluetooth 5.3

Wireless Technology

MU-MIMO / 802.11 a/b/g/n/ac/ax

Display Outputs

HDMI

1 × HDMI 2.1

HDMI Maximum

4K @ 60Hz

DisplayPort

1 × DisplayPort 1.4

DisplayPort Maximum

4K @ 60Hz

VGA

1 × D-Sub

VGA Maximum

2048 × 1536 @ 50Hz

Graphics Requirement

Processor with Integrated Graphics Required

USB Connectivity

Rear USB 2.0

2 × Type-A

Front USB 2.0

4 × Type-A

Rear USB 5Gbps

4 × Type-A

Front USB 5Gbps

2 × Type-A

Total USB 3.2 Gen 1

6 × Type-A

Total USB 2.0

6 × Type-A

Audio

Audio Codec

Realtek ALC897

Audio Channels

7.1-Channel High Definition Audio

Audio Technology

MSI Audio Boost

Cooling & Thermal Design

Cooling Technology

Frozr AI Cooling

CPU Fan Header

1 × CPU Fan

System Fan Headers

2 × System Fan

Fan Management

Automatic CPU & GPU Temperature Detection

Power & Design

CPU Power

1 × CPU Power Connector

Main Power

1 × ATX Power Connector

CPU Performance

MSI Core Boost

Memory Technology

MSI Memory Boost

RGB & Lighting

Addressable RGB

2 × Addressable V2 RGB Headers

RGB Header

1 × RGB LED Header

Lighting Software

MSI Mystic Light

Internal I/O

CPU Fan

1 × Header

System Fans

2 × Headers

Front Panel

2 × JFP Headers

Chassis Intrusion

1 × JCI Header

Front Audio

1 × JAUD Header

COM Port

1 × JCOM Header

TPM

1 × TPM 2.0 Header

Addressable RGB

2 × JARGB_V2 Headers

RGB

1 × JRGB Header

USB 2.0

4 × Internal Ports

USB 5Gbps

2 × Internal Type-A

MSI Gaming Features

CPU Technology

Core Boost

Memory Technology

Memory Boost

PCIe Protection

PCIe Steel Armor

Storage Technology

Lightning Gen4

Audio Technology

Audio Boost

Thermal Technology

Frozr AI Cooling

Diagnostics

EZ Debug LED

M.2 Cooling

M.2 Shield Frozr

BIOS & Software

BIOS Interface

MSI Click BIOS

Memory Profiles

Intel XMP 3.0

System Software

MSI Center

RGB Software

MSI Mystic Light

Operating System

Supported OS

Windows 11 64-bit / Windows 10 64-bit

Physical Specifications

Form Factor

Micro ATX

Dimensions

220 × 243.84mm

Product Identification

Model

B760M BOMBER WIFI

Brand

MSI

Series

BOMBER

Chipset

Intel B760

Socket

LGA1700

Memory

DDR5

Memory Slots

2 × DIMM

Maximum Memory
