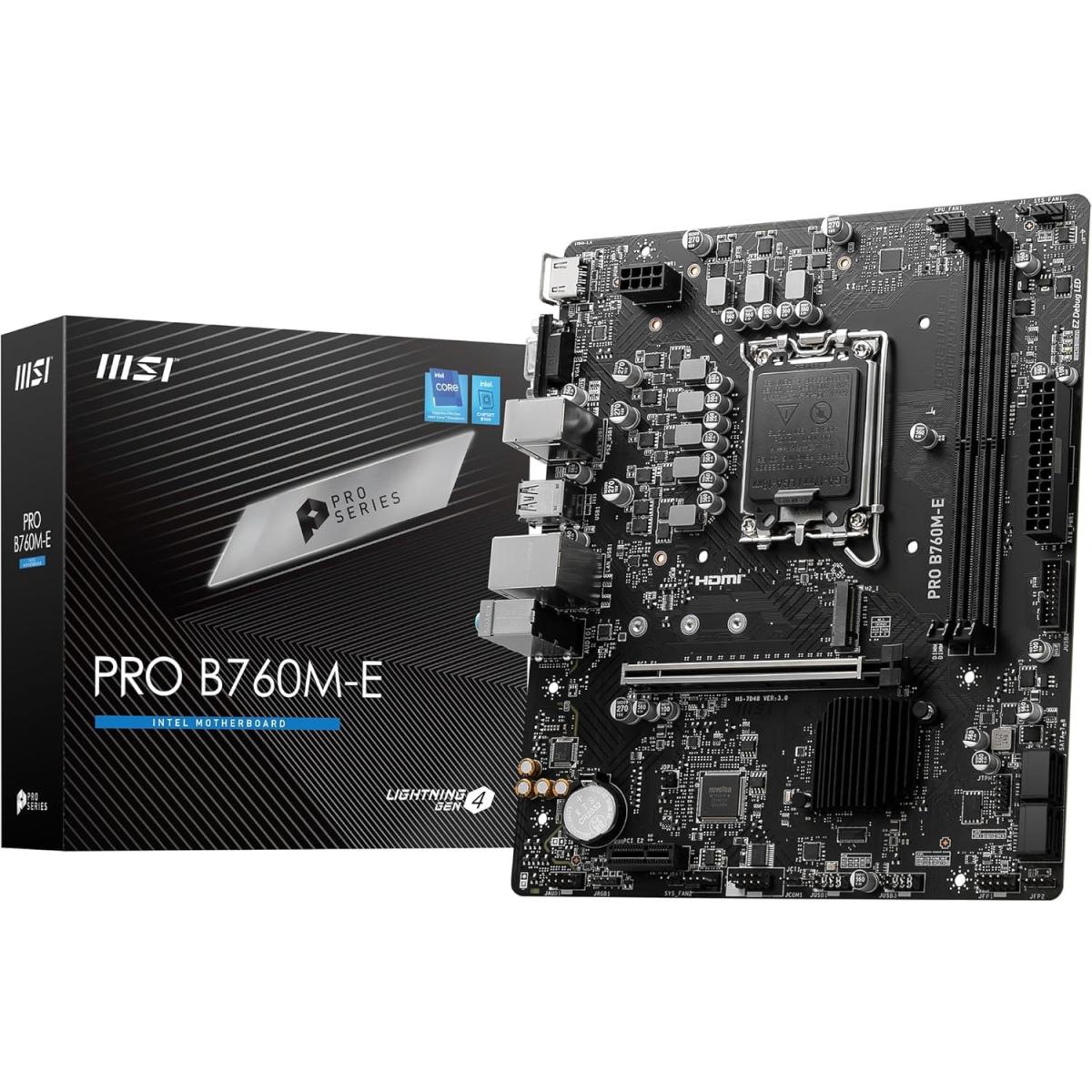

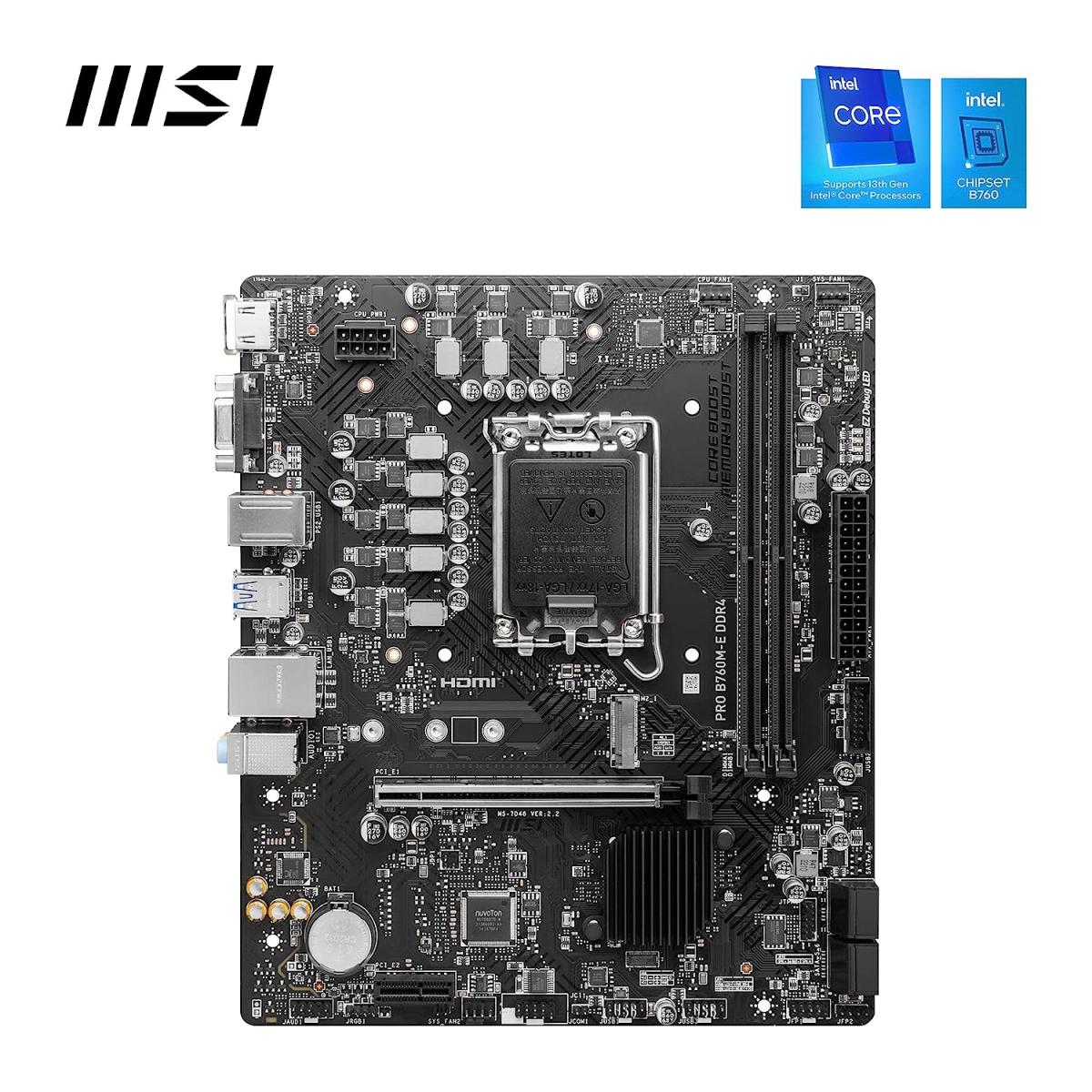

MSI PRO B760M-E DDR5 Intel 13th Gen Motherboard PCIe 4.0 DDR5 1xM.2 Gen4 x4 PCIe 4.0 Mainboard

MSI

MSI PRO B760M-E DDR5 Intel 13th Gen Motherboard PCIe 4.0 DDR5 1xM.2 Gen4 x4 PCIe 4.0 Mainboard

1 year warranty

  • Availability: In Stock
95.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

MSI • PRO SERIES
PRO B760M-E
INTEL B760 • LGA1700 • DDR5 • MICRO ATX
A compact Intel motherboard designed for modern productivity and gaming systems, featuring DDR5 memory support, PCIe 4.0 graphics, a high-speed Gen4 M.2 slot, Gigabit LAN and MSI PRO Series reliability features.
MSI PRO LGA1700 B760 DDR5 PCIe 4.0 GEN4 M.2
LGA1700 CPU SOCKET
128GB MAX DDR5
PCIe 4.0 GPU SLOT
64Gbps GEN4 M.2
MSI PRO PLATFORM

Practical Performance. Professional Reliability.

The PRO B760M-E combines Intel's B760 platform with DDR5 memory, PCIe 4.0 expansion and Gen4 NVMe storage in a compact Micro ATX design. It is built for efficient everyday computing, gaming and productivity systems.

01

Intel LGA1700 Platform

Supports Intel Core processors from the 14th, 13th and 12th generations, along with compatible Pentium Gold and Celeron processors.

02

DDR5 Memory Boost

Two DDR5 DIMM slots support up to 128GB of memory, with dual-channel operation and Intel XMP 3.0 overclocking support.

03

Lightning Gen4 Storage

A dedicated Gen4 x4 M.2 slot delivers up to 64Gbps bandwidth for compatible high-speed NVMe SSDs.

MSI PRO B760M-E

Essential Features in a Compact Platform.

Designed around Intel B760 with DDR5, PCIe 4.0, Gen4 M.2 storage, Gigabit networking and MSI's PRO Series hardware technologies.

128GB MAX DDR5
PCIe 4.0 GPU SLOT
64Gbps GEN4 M.2
1GbE LAN

Technical Specifications

Processor & Chipset
CPU Socket
Intel LGA1700
Supported Processors
Intel Core 14th / 13th / 12th Gen
Additional CPU Support
Intel Pentium Gold / Celeron
Chipset
Intel B760
Platform
Intel LGA1700
Memory
Memory Type
DDR5
Memory Slots
2 × DIMM
Maximum Capacity
128GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-6400+ MT/s
JEDEC Speed
DDR5-5600
Supported Speeds
4800 / 5000 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400+
Memory Profiles
Intel XMP 3.0
Memory Type
Non-ECC Unbuffered
Expansion Slots
Primary PCIe Slot
1 × PCIe 4.0 x16
Primary Slot Source
CPU
Secondary PCIe Slot
1 × PCIe 3.0 x1
Secondary Slot Source
B760 Chipset
PCIe Protection
MSI Steel Armor
Storage
M.2 Slots
1 × M.2 Key M
M.2 Interface
PCIe 4.0 x4 / SATA
M.2 Bandwidth
Up to 64Gbps
Supported M.2 Sizes
2242 / 2260 / 2280
SATA
4 × SATA 6Gb/s
M.2 SATA Sharing
SATA_5 Unavailable When M.2 SATA SSD Is Installed
RAID
RAID 0 / 1 / 5 / 10
Networking
LAN Controller
Realtek RTL8111H Gigabit LAN
LAN Speed
10 / 100 / 1000 Mbps
Network Protection
MSI LAN Protection
USB Connectivity
Rear USB 5Gbps
2 × USB Type-A
Rear USB 2.0
4 × USB Type-A
Front USB 5Gbps
2 × USB Type-A
Front USB 2.0
4 × USB 2.0
Rear USB 3.2 Gen 1
5Gbps
Display Outputs
HDMI
1 × HDMI 1.4
HDMI Maximum
4K @ 30Hz
VGA
1 × VGA
VGA Maximum
2048 × 1536 @ 50Hz
Graphics Requirement
Requires Processor with Integrated Graphics
Audio
Audio Codec
Realtek ALC897
Audio Channels
7.1-Channel High Definition Audio
Audio Technology
MSI Audio Boost
Audio Design
Isolated Audio Signal
Audio Components
High-Quality Audio Capacitors
Audio Protection
De-Pop Protection
Rear I/O
Video
HDMI 1.4 + VGA
USB 5Gbps
2 × USB Type-A
USB 2.0
4 × USB Type-A
LAN
1 × Gigabit LAN
Keyboard / Mouse
PS/2 Combo Port
Audio
Audio Connectors
Internal I/O
CPU Fan
1 × CPU Fan Header
System Fans
2 × System Fan Headers
Main Power
1 × 24-pin ATX
CPU Power
1 × CPU Power Connector
Front Panel
2 × Front Panel Headers
Front Audio
1 × Front Audio Header
COM Port
1 × COM Header
RGB
1 × JRGB Header
TPM
1 × TPM 2.0 Header
Chassis Intrusion
1 × JCI Header
MSI PRO Features
Power Design
Core Boost
Memory Technology
Memory Boost
PCIe Protection
PCIe Steel Armor
Diagnostics
4 × EZ Debug LED
Storage
Lightning Gen4 M.2
Audio
Audio Boost
RGB
Mystic Light Extension
BIOS & Software
BIOS
MSI Click BIOS 5
BIOS Update
M-FLASH
Memory Profiles
Intel XMP
Hardware Monitoring
Hardware Monitor
Memory Tuning
Memory Try It!
System Software
MSI Center
RGB Software
MSI Mystic Light
Operating System
Supported OS
Windows 11 64-bit / Windows 10 64-bit
Physical Specifications
Form Factor
Micro ATX
Dimensions
23.6 × 20.0cm
PCB Size
mATX
Product Identification
Model
PRO B760M-E
Brand
MSI
Series
PRO Series
Chipset
Intel B760
Socket
LGA1700
Memory
DDR5
Maximum Memory
128GB
Form Factor
Micro ATX
MSI PRO B760M-E INTEL B760 • LGA1700 • DDR5 • PCIe 4.0 • GEN4 M.2 • 1GbE • MICRO ATX
