LGA1851
CPU SOCKET
128GB
MAX DDR5
PCIe 5.0
GPU SLOT
2.5GbE
NETWORK
MSI PRO PLATFORM
Modern Intel Performance. Professional Reliability.

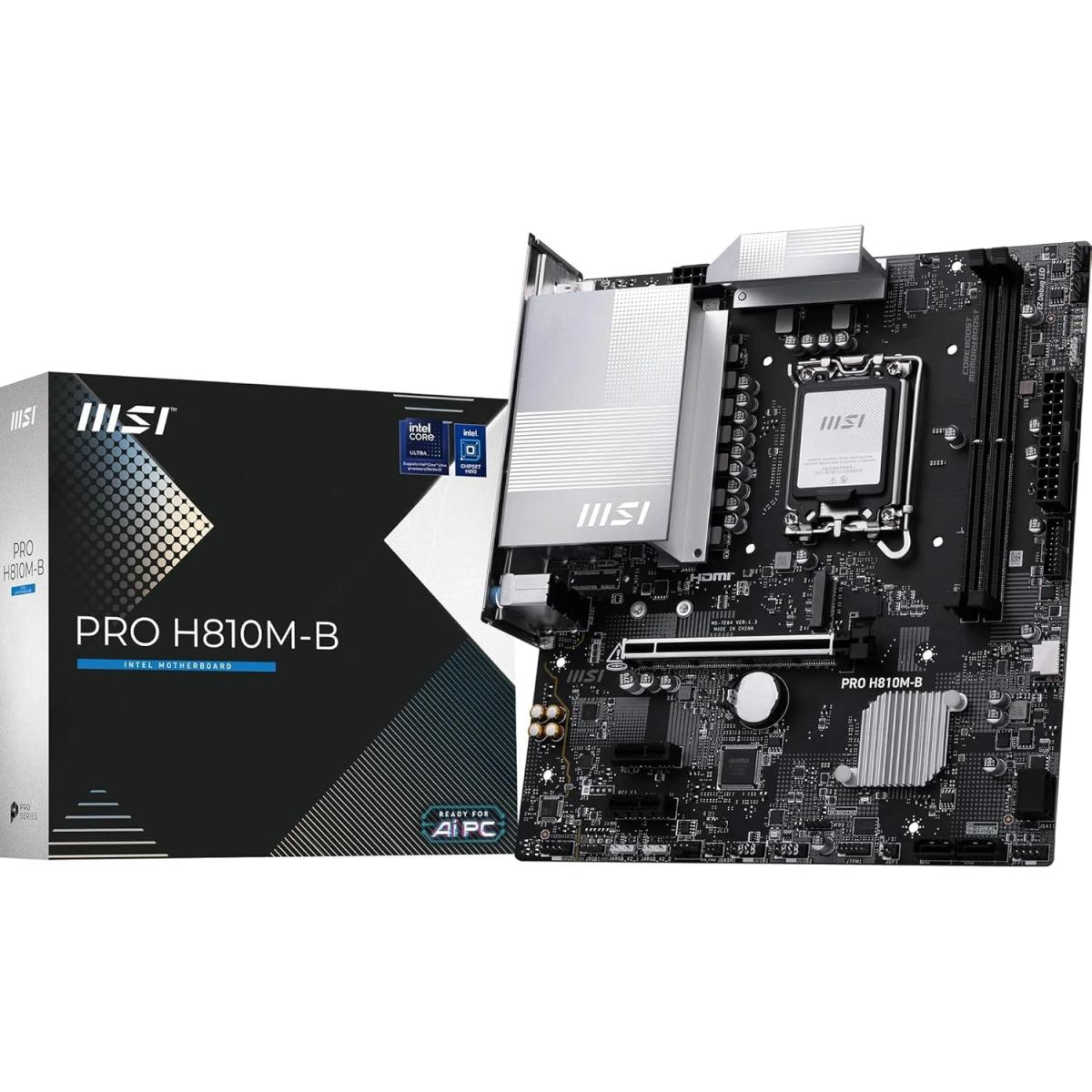

The MSI PRO H810M-B brings Intel's LGA1851 platform to compact
systems with support for Core Ultra Series 2 processors,
high-speed DDR5 memory, PCIe 5.0 graphics, Gen4 NVMe storage
and 2.5 Gigabit networking.
01
Intel Core Ultra Platform
Built around the LGA1851 socket and Intel H810 chipset
for Intel Core Ultra processors (Series 2), providing
a modern foundation for productivity, gaming and AI PCs.
02
Lightning Gen 5
The primary PCIe 5.0 x16 graphics slot provides next-generation
bandwidth for high-performance graphics cards and is reinforced
with MSI Steel Armor.
03
Lightning Gen4 M.2
A PCIe 4.0 x4 M.2 interface delivers up to 64Gbps of
bandwidth for high-performance NVMe solid-state drives.

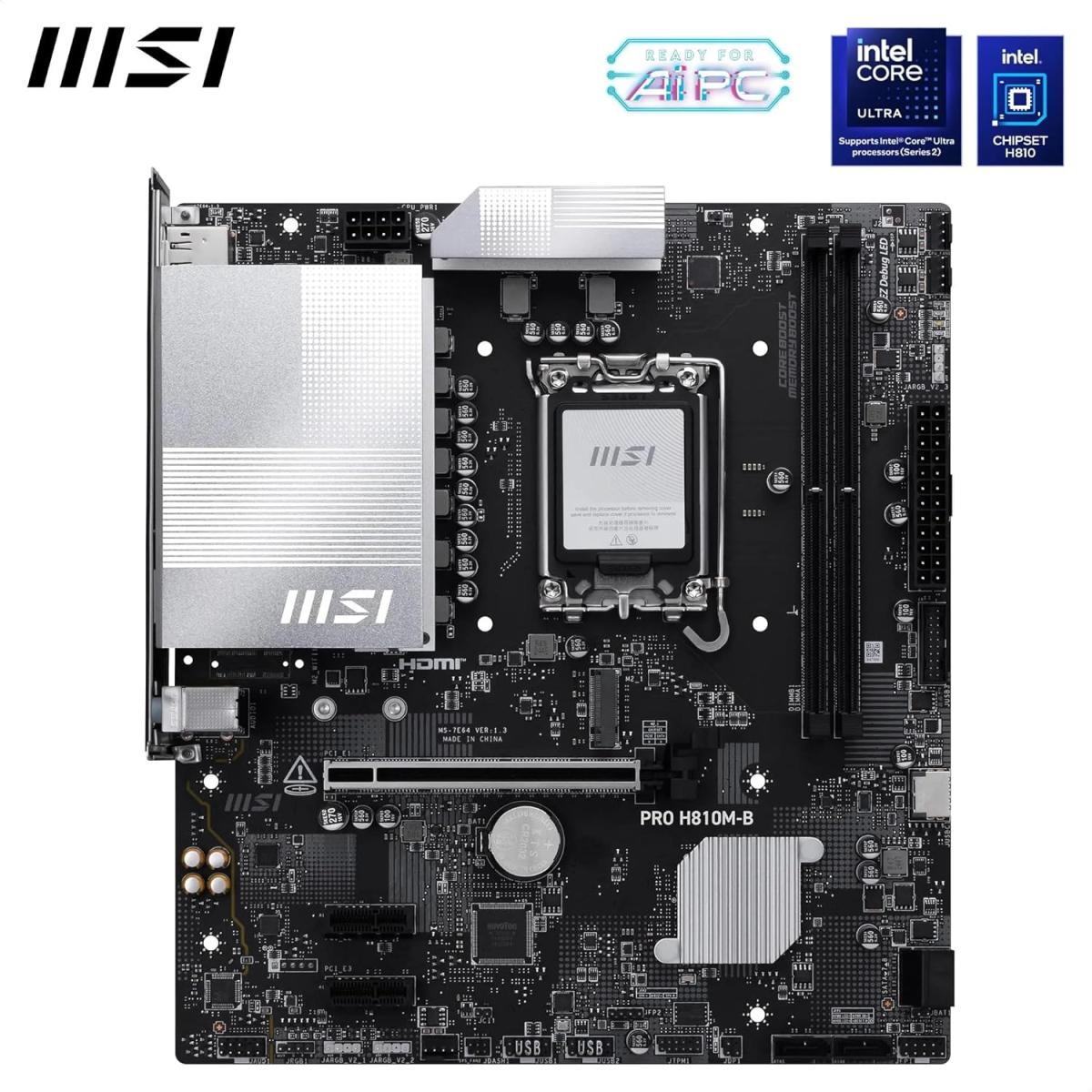

MSI PRO H810M-B
Ready for the Latest Intel Platform.
Combining Intel Core Ultra Series 2 support with DDR5,
PCIe 5.0, Gen4 NVMe storage and 2.5 Gigabit networking
in an efficient Micro ATX design.
7200
DDR5 MT/s MAX*
PCIe 5.0
x16 GRAPHICS
64Gbps
GEN4 M.2
2.5G
ETHERNET
Technical Specifications
Processor & Chipset
Supported Processors
Intel Core Ultra Processors (Series 2)
Memory
Memory Slots
2 × DDR5 UDIMM
Memory Architecture
Dual-Controller Dual-Channel
Maximum Memory Speed
Up to DDR5-7200 MT/s*
1DPC 1R Maximum
Up to 7200 MT/s
1DPC 2R Maximum
Up to 6400 MT/s
Memory Range
DDR5-4800 – 7200 MT/s
Memory Profiles
Intel XMP 3.0
ECC
Non-ECC, Unbuffered Memory
Expansion & Graphics
Primary PCIe Slot
PCIe 5.0 x16
PCIe Generation
PCI Express 5.0
PCIe Reinforcement
MSI Steel Armor
GPU Installation
EZ PCIe Clip II
Maximum PCIe 5.0 Bandwidth
Up to 128GB/s
Storage
M.2 Interface
PCIe 4.0 x4
M.2 Bandwidth
Up to 64Gbps
M.2 Technology
Lightning Gen4
M.2 Installation
EZ M.2 Clip II
Networking
LAN Controller
Realtek RTL8125
LAN Speed
2.5 Gigabit Ethernet
Network Technology
MSI 2.5G Network Solution
Network Software
AI LAN Manager
Display Outputs
DisplayPort
1 × DisplayPort 1.4
DisplayPort Maximum
4K @ 60Hz
Graphics Requirement
Dependent on Installed CPU Graphics Support
USB Connectivity
USB 2.0
8 Ports Supported
Fastest USB Interface
USB 10Gbps Type-C
Audio
Audio Channels
8-Channel / 7.1 HD Audio
Audio Technology
MSI Audio Boost
Audio Design
Isolated Audio Circuitry
Audio Components
High-Quality Audio Capacitors
Power & Thermal Design
Power Design
Direct 6-Phase Power Design
CPU Power Technology
MSI Core Boost
Memory Technology
MSI Memory Boost
VRM Cooling
Extended Heatsink Design
Thermal Pads
7W/mK MOSFET Thermal Pads
Cooling Technology
Frozr Guard
Smart Cooling
Frozr AI Cooling
MSI EZ DIY Features
GPU Installation
EZ PCIe Clip II
M.2 Installation
EZ M.2 Clip II
M.2 Tool
EZ M.2 Clip II Remover

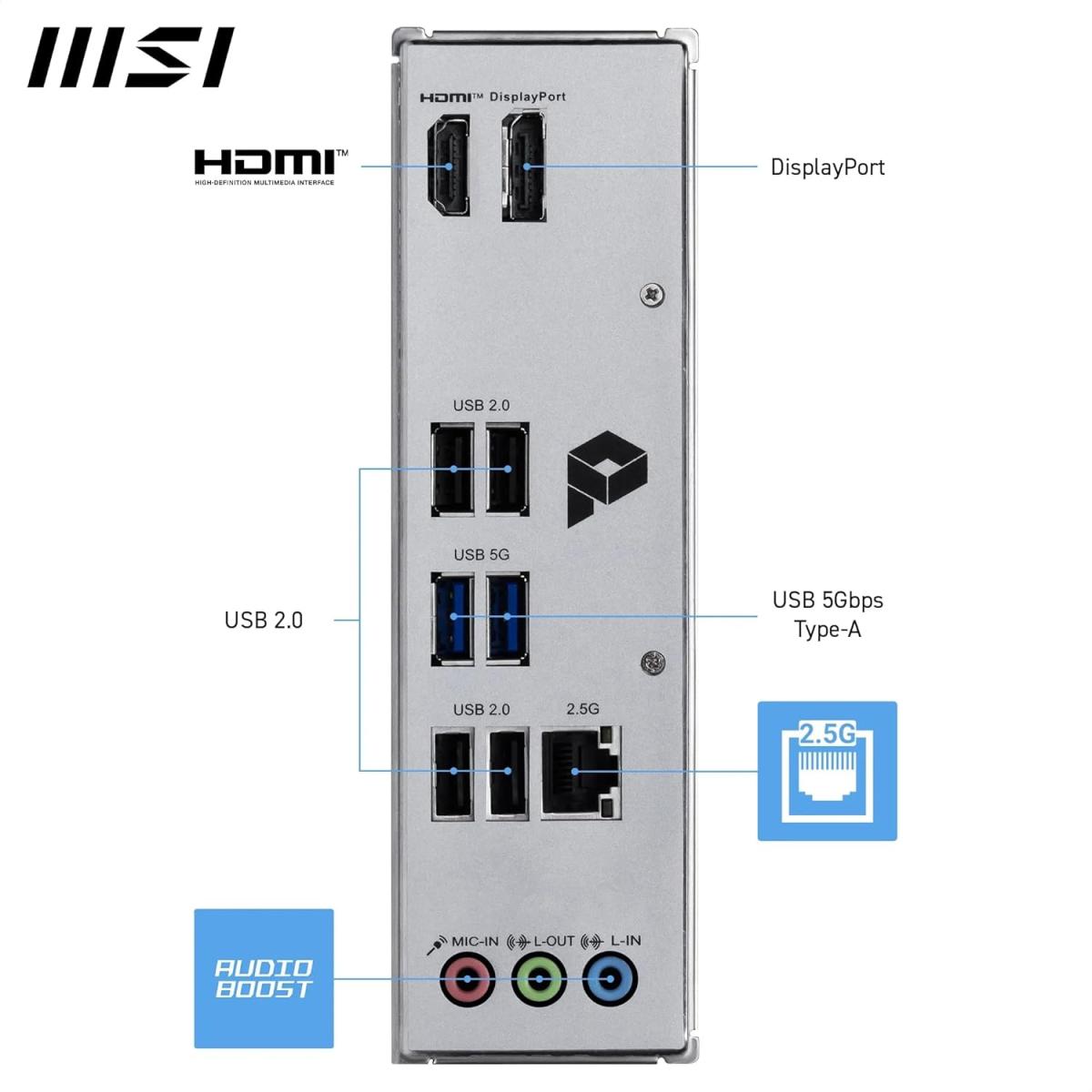

Rear I/O
Pre-Installed I/O Shield
Memory Diagnostics
EZ Memory Detection LED
AI & Smart Features
AI Networking
AI LAN Manager
AI Cooling
Frozr AI Cooling
BIOS & Software
BIOS Interface
MSI Click BIOS X
System Software
MSI Center
Memory Profiles
Intel XMP 3.0
Network Management
AI LAN Manager
AI Optimization
MSI AI Engine
Physical Specifications
Color Scheme
Black / Silver
* Maximum memory speed depends on the installed processor,
DIMM configuration and memory module. MSI currently specifies
up to 7200 MT/s for 1DPC 1R and up to 6400 MT/s for 1DPC 2R.
