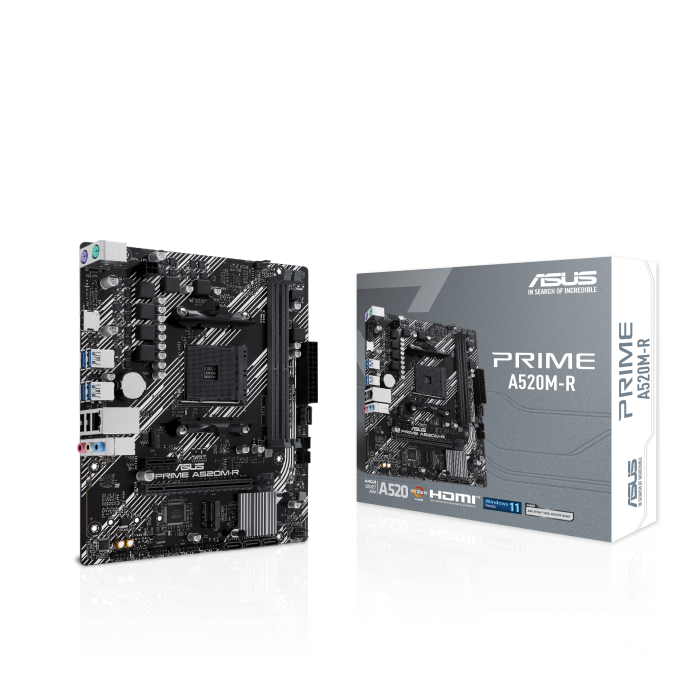

Asus Prime A520M-R AMD A520 (Ryzen AM4) Micro ATX Motherboard with M.2 Slot USB 3.2 Gen 2 Type-A

ASUS

Asus Prime A520M-R AMD A520 (Ryzen AM4) Micro ATX Motherboard with M.2 Slot USB 3.2 Gen 2 Type-A

1 year warranty

  • Availability: In Stock
69.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS PRIME • A520 SERIES

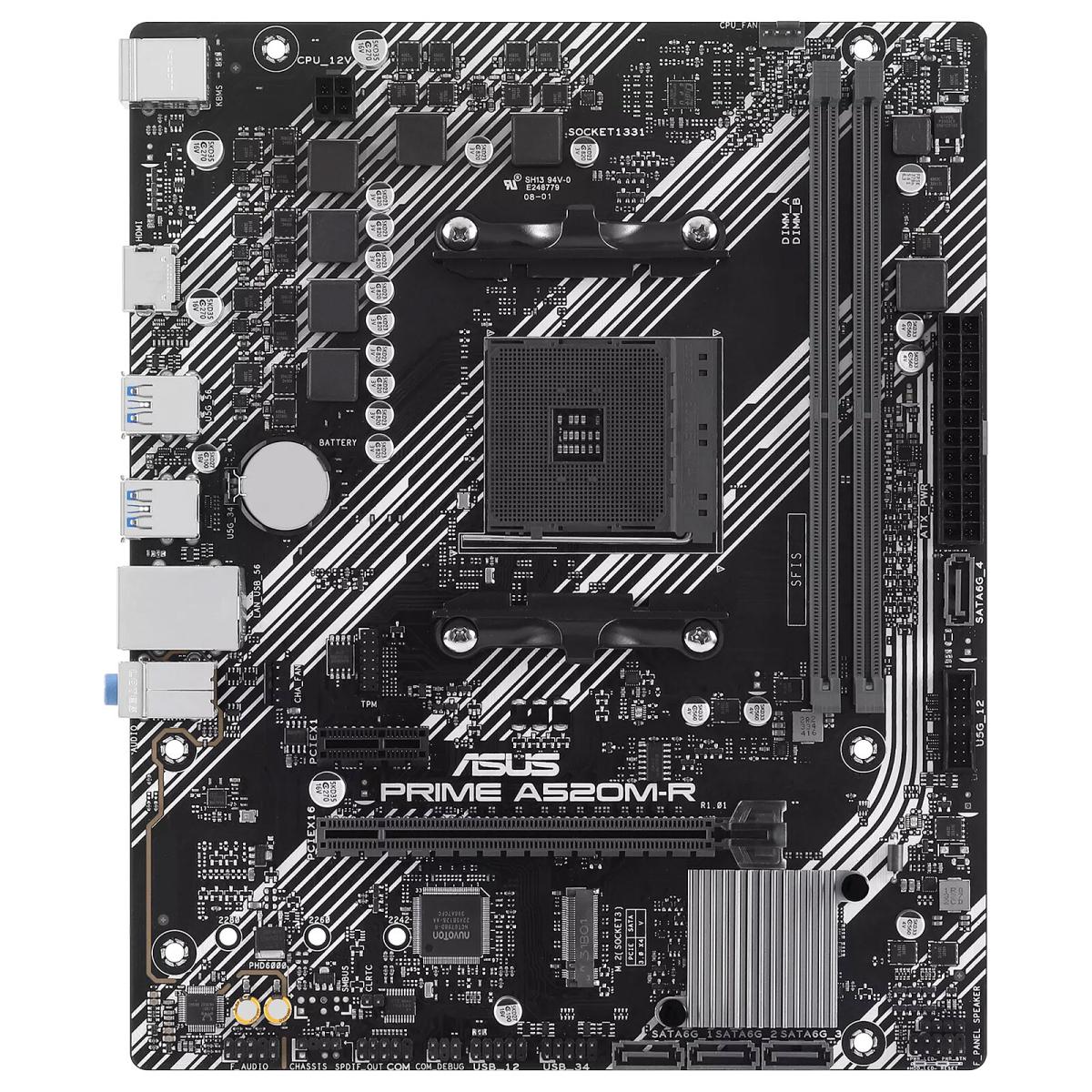

PRIME A520M-R
AMD A520 • AM4 • micro-ATX • DDR4
A reliable AMD AM4 motherboard designed for Ryzen desktop processors, featuring DDR4 memory support, PCIe 3.0 expansion, M.2 storage, 1Gb Ethernet and high-speed USB connectivity.
AM4 A520 DDR4 M.2 NVMe micro-ATX
AM4 CPU SOCKET
64GB MAX MEMORY
PCIe 3.0 GPU INTERFACE
1Gb ETHERNET
ASUS PRIME PLATFORM

Built for Reliable Ryzen Systems

The ASUS PRIME A520M-R provides a practical foundation for AMD Ryzen systems with support for DDR4 memory, PCIe expansion, M.2 storage, SATA drives, high-speed USB connectivity and Realtek Gigabit Ethernet.

01

AMD AM4 Platform

Supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000 and 3000 G-Series desktop processors.

02

M.2 Storage

One M.2 Key M slot supports 2242, 2260 and 2280 devices with PCIe 3.0 x4 and SATA modes.

03

ASUS 5X Protection III

Includes DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core and stainless-steel rear I/O protection.

PRIME A520M-R

Essential Connectivity for Your Build

Everything you need for a compact AMD Ryzen desktop system, from M.2 storage and PCIe expansion to Gigabit Ethernet and high-speed USB connectivity.

2 DDR4 DIMM SLOTS
1 M.2 SLOT
4 SATA 6Gb/s
6 REAR USB PORTS

Technical Specifications

Processor
CPU Socket
AMD Socket AM4
Supported CPUs
AMD Ryzen 5000 / 5000 G / 4000 G / 3000 / 3000 G Series
Chipset
AMD A520
Memory
Memory Type
DDR4
Memory Slots
2 × DIMM
Maximum Capacity
64GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR4-5100 (OC)
Standard Speed
DDR4-3200
ECC Support
ECC Mode Support Varies by CPU
Expansion Slots
Primary PCIe Slot
1 × PCIe 3.0 x16
Secondary PCIe Slot
1 × PCIe 3.0 x1
Graphics Interface
PCIe 3.0 x16
Storage
M.2 Slots
1 × M.2 Key M
M.2 Form Factors
2242 / 2260 / 2280
M.2 Interface
PCIe 3.0 x4 & SATA Mode
SATA Ports
4 × SATA 6Gb/s
RAID Support
RAID 0 / 1 / 10
USB Connectivity
Rear USB
4 × USB 5Gbps Type-A
Rear USB 2.0
2 × USB 2.0 Type-A
Front USB Header
1 × USB 5Gbps Header
Front USB 2.0 Headers
2 × USB 2.0 Headers
Networking
LAN Controller
Realtek 1Gb Ethernet
Network Speed
10 / 100 / 1000 Mbps
Protection
ASUS LANGuard
Audio
Audio Codec
Realtek 7.1 Surround Sound HD Audio
Maximum Playback
24-bit / 192kHz
Audio Features
Audio Shielding / Premium Capacitors / Dedicated PCB Layers
Audio Jacks
3 × Audio Jacks
Display Output
HDMI
1 × HDMI
Maximum Resolution
4K @ 60Hz
Display Output
Dependent on CPU Integrated Graphics
Rear I/O
USB 5Gbps
4 × Type-A
USB 2.0
2 × Type-A
Video
1 × HDMI
LAN
1 × Realtek 1Gb Ethernet
Audio
3 × Audio Jacks
Keyboard
1 × PS/2
Mouse
1 × PS/2
Internal Connectivity
CPU Fan Header
1 × 4-pin
Chassis Fan Header
1 × 4-pin
Main Power
1 × 24-pin
CPU Power
1 × 4-pin +12V
TPM
1 × SPI TPM Header
Front Panel Audio
1 × F_AUDIO
ASUS Features
Protection
ASUS 5X Protection III
VRM
DIGI+ VRM
PCIe Protection
SafeSlot Core
Memory Design
Q-DIMM
PCIe Design
Q-Slot
Diagnostic
Q-LED Core
Cooling
Aluminum Heatsink Design
BIOS & Software
BIOS
UEFI AMI BIOS
BIOS ROM
128Mb Flash ROM
BIOS Update
ASUS EZ Flash 3
BIOS Recovery
ASUS CrashFree BIOS 3
Software
Armoury Crate / AI Suite 3 / ASUS CPU-Z
Operating System
Supported OS
Windows 11 / Windows 10 64-bit
Physical Specifications
Form Factor
micro-ATX
Dimensions
23.6 × 19.3cm
Dimensions
9.3 × 7.6 inches
Package Contents
SATA Cables
2 × SATA 6Gb/s Cables
M.2 Accessory
1 × M.2 Anchor
I/O Shield
Included
Documentation
Quick Start Guide
Product Identification
Model
PRIME A520M-R
ASUS Product Number
90MB1H60-M0EAY0
EAN
4711387466414
ASUS PRIME A520M-R AMD A520 • AM4 • DDR4 • M.2 • micro-ATX
