New
ASUS PRIME B840-Plus Wi-Fi 6E AM5 ATX AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity

ASUS

ASUS PRIME B840-Plus Wi-Fi 6E AM5 ATX AMD B840 Chipset, 4x DIMM DDR5 Slots, Up to 192GB Max Memory, 1 x PCIe 4.0 x16 SafeSlot Core+, 3 x M.2 Slots, WiFi & BT Connectivity

1 year warranty

  • Availability: In Stock
189.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS PRIME • B840 SERIES
PRIME B840-PLUS WIFI
AMD B840 • AM5 • DDR5 • ATX • Wi-Fi 6E
A feature-rich AMD AM5 motherboard built for Ryzen 9000, 8000 and 7000 Series desktop processors, featuring DDR5 memory, PCIe 4.0 graphics, three M.2 NVMe slots, 2.5Gb Ethernet, Wi-Fi 6E and ASUS's 5X Protection III platform.
AM5 B840 DDR5 PCIe 4.0 Wi-Fi 6E
AM5 CPU SOCKET
256GB MAX MEMORY
7600+ DDR5 MT/s OC
2.5Gb ETHERNET
ASUS PRIME B840 PLATFORM

Modern AM5 Performance & Connectivity

The ASUS PRIME B840-PLUS WIFI delivers a modern foundation for Ryzen systems with DDR5 memory, PCIe 4.0 graphics, three M.2 NVMe storage slots, 2.5Gb Ethernet and Wi-Fi 6E. Its ATX design also provides extensive expansion and cooling connectivity for gaming and productivity builds.

01

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors with up to 170W CPU support.

02

Triple M.2 Storage

Three M.2 slots provide PCIe 4.0 x4 and PCIe 3.0 x4 connectivity for high-speed NVMe storage.

03

Wi-Fi 6E & 2.5G LAN

Built-in 2x2 Wi-Fi 6E and Realtek 2.5Gb Ethernet provide fast wireless and wired networking.

ASUS PRIME

Designed for Flexible Modern Builds

From DDR5 memory and PCIe 4.0 graphics to triple M.2 storage, Wi-Fi 6E and 2.5Gb Ethernet, the PRIME B840-PLUS WIFI delivers the connectivity needed for today's AM5 systems.

4 DDR5 DIMM SLOTS
3 M.2 SLOTS
2.5Gb LAN
6E WI-FI

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Maximum CPU Power
Up to 170W
Chipset
AMD B840

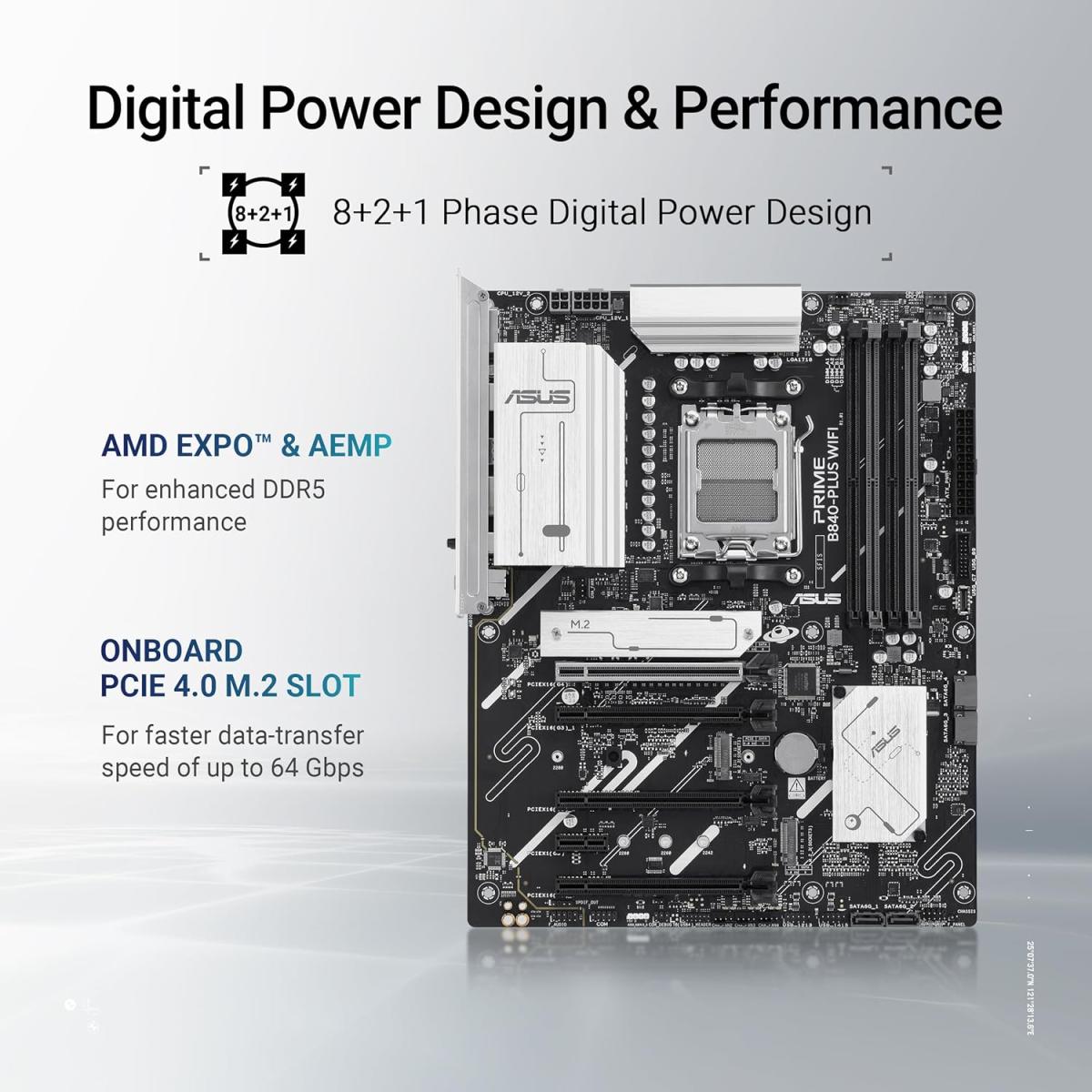

Power Design
8+2+1 Phase Digital VRM
Memory
Memory Type
DDR5
Memory Slots
4 × DIMM
Maximum Capacity
256GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-7600+ MT/s
Memory Profiles
AMD EXPO
ASUS Memory Profile
AEMP
Memory Type
ECC / Non-ECC Unbuffered DIMM
On-Die ECC
Supported with Non-ECC DDR5
Expansion Slots
Primary PCIe Slot
1 × PCIe 4.0 x16
Primary Slot Mode
x16
Primary Protection
SafeSlot Core+
Secondary PCIe
1 × PCIe 3.0 x16 — x4 Mode
Additional PCIe
2 × PCIe 3.0 x16 — x1 Mode
Additional PCIe
1 × PCIe 3.0 x1
Ryzen 9000 / 7000 Graphics
PCIe 4.0 x16
Ryzen 8000 Graphics
PCIe 4.0 x8 / x4
Storage
M.2 Slots
3 × M.2 Key M
M.2_1
PCIe 4.0 x4 — 2280
M.2_2
PCIe 4.0 x4 — 2280
M.2_3
PCIe 3.0 x4 — 2242 / 2260 / 2280
SATA
4 × SATA 6Gb/s
RAID — Ryzen 9000
RAID 0 / 1 / 5 / 10
RAID — Ryzen 8000
RAID 0 / 1
RAID — Ryzen 7000
RAID 0 / 1 / 10
Networking
LAN Controller
Realtek 2.5Gb Ethernet
LAN Speed
2.5Gbps
LAN Protection
ASUS LANGuard
Wi-Fi
Wi-Fi 6E
Wi-Fi Configuration
2 × 2 Wi-Fi 6E 802.11ax
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Bluetooth
Bluetooth 5.3
USB Connectivity
Rear USB 10Gbps
1 × Type-A + 1 × Type-C
Rear USB 5Gbps
2 × Type-A
Rear USB 2.0
4 × Type-A
Front USB 5Gbps
1 × Type-C + 1 × Header for 2 ports
Front USB 2.0
2 × Headers for 4 ports
USB-C Power Delivery
5V / 3A Maximum
Audio
Audio Codec
Realtek 7.1 Surround Sound HD Audio Codec
Audio Channels
7.1 Surround Sound
Rear Audio
3 × Audio Jacks
Display Outputs
DisplayPort
1 × DisplayPort 1.4
DisplayPort Maximum
Up to 8K @ 30Hz
HDMI
1 × HDMI 2.1
HDMI Maximum
Up to 4K @ 60Hz
Display Requirement
Processor with Integrated Graphics
Rear I/O
USB 10Gbps Type-A
1 ×
USB 10Gbps Type-C
1 ×
USB 5Gbps Type-A
2 ×
USB 2.0 Type-A
4 ×
Network
1 × 2.5Gb Ethernet
Wireless
Wi-Fi 6E + Bluetooth 5.3
Display
1 × DisplayPort + 1 × HDMI
Audio
3 × Audio Jacks
BIOS
BIOS FlashBack Button
Internal Connectivity
Main Power
1 × 24-pin ATX
CPU Power
1 × 8-pin + 1 × 4-pin
CPU Fan
1 × 4-pin CPU Fan
CPU OPT
1 × 4-pin CPU OPT Fan
AIO Pump
1 × 4-pin AIO Pump
Chassis Fans
4 × 4-pin Chassis Fan
ARGB
3 × Addressable Gen 2 Headers
USB-C Header
1 × USB 5Gbps Type-C
USB Header
1 × USB 5Gbps Header
USB 2.0
2 × USB 2.0 Headers
Thunderbolt
1 × Thunderbolt / USB4 Header
TPM
1 × SPI TPM Header
Front Audio
1 × F_AUDIO Header
Cooling & Thermal Design
VRM Cooling
VRM Heatsink Design
M.2 Cooling
Flexible M.2 Heatsink
Chipset Cooling
Chipset Heatsink
Fan Headers
CPU / CPU OPT / AIO + 4 Chassis
ASUS Features
Protection
ASUS 5X Protection III
VRM
DIGI+ VRM
Network Protection
LANGuard
PCIe Protection
SafeSlot Core+
Memory Design
Q-DIMM
PCIe Design
Q-Slot
Diagnostics
Q-LED Core
DIY Feature
Q-Antenna / Q-Dashboard
BIOS Recovery
BIOS FlashBack
RGB
Aura Sync
BIOS & Software
BIOS
UEFI AMI BIOS
BIOS ROM
256Mb Flash ROM
BIOS Update
ASUS EZ Flash 3 / BIOS FlashBack
System Recovery
ASUS CrashFree BIOS 3
System Software
Armoury Crate / ASUS DriverHub
Fan Control
Fan Xpert 2+
RGB Control
Aura Sync / Aura Creator
Operating System
Supported OS
Windows 11 / Windows 10 64-bit
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches

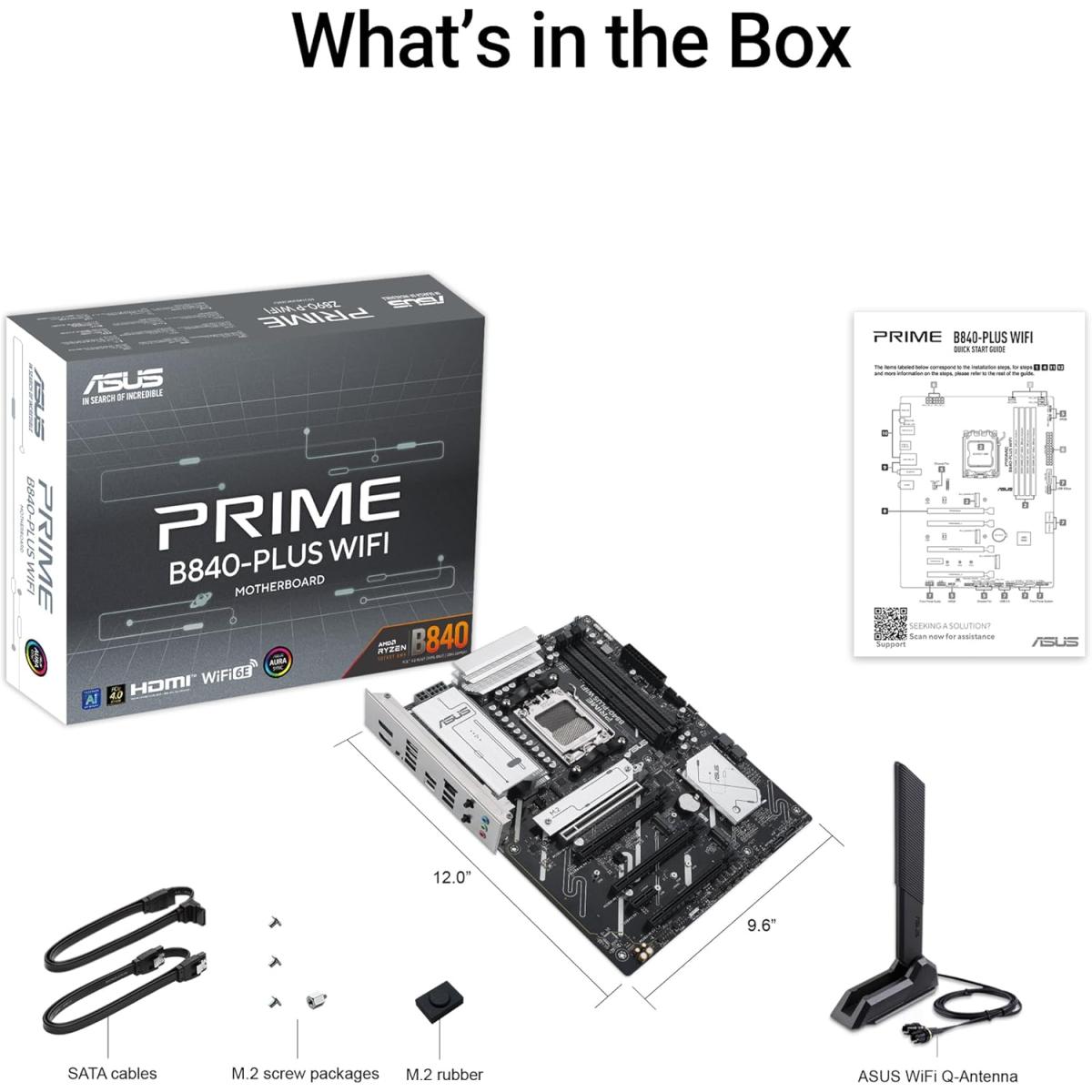

Package Contents
SATA Cables
2 × SATA 6Gb/s Cables
Wi-Fi Antenna
ASUS WiFi Q-Antenna
M.2 Accessories
M.2 Rubber Packages & Screws
I/O Shield
Pre-mounted I/O Shield
Product Identification
Model
ASUS PRIME B840-PLUS WIFI
Chipset
AMD B840
Platform
AMD AM5
Form Factor
ATX
ASUS PRIME B840-PLUS WIFI AMD B840 • AM5 • DDR5 • PCIe 4.0 • Wi-Fi 6E • 2.5G LAN • ATX
