ASUS

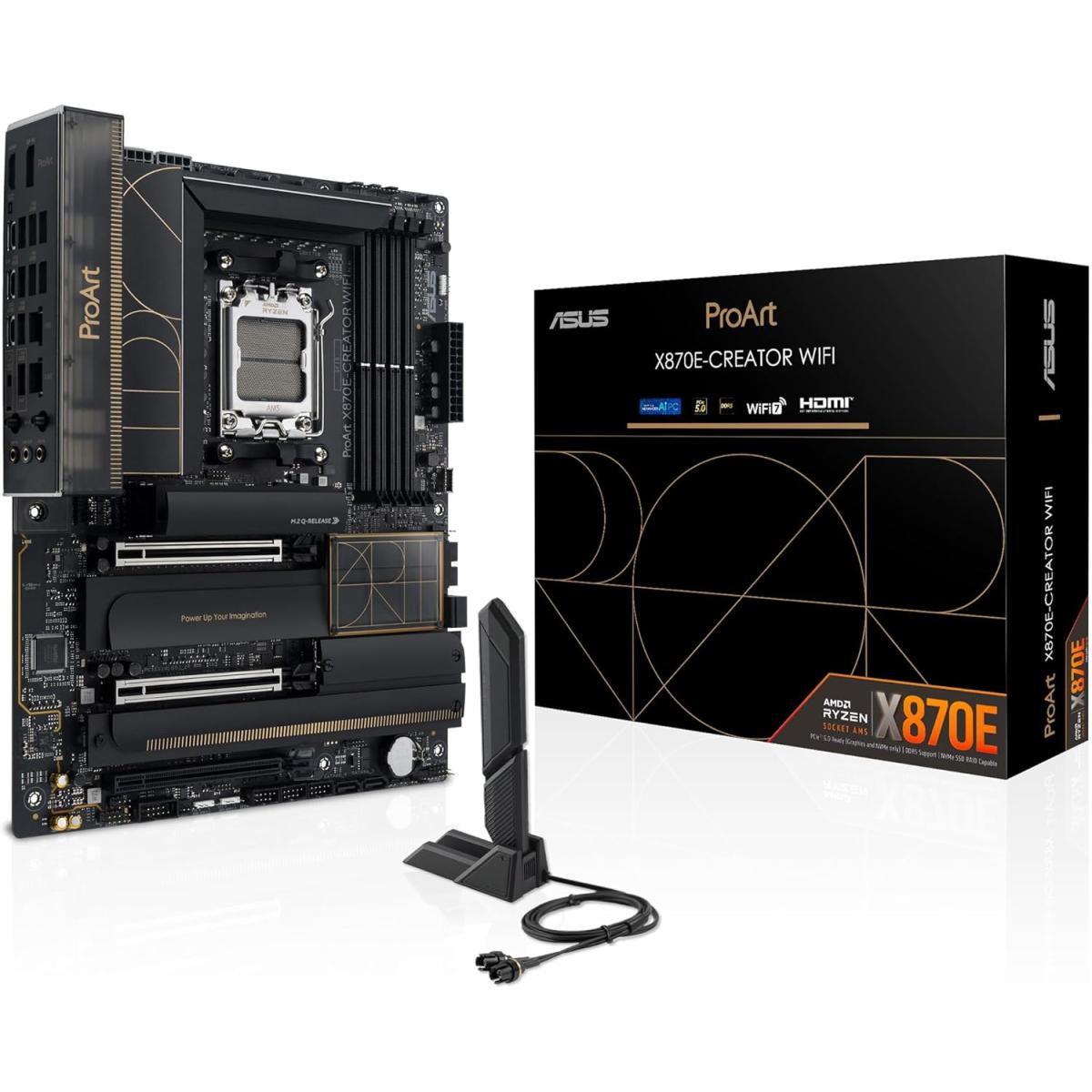

ASUS ProArt X870E-Creator WIFI AM5 ATX AMD X870E Chipset, 4x DDR5 DIMM Slots, 192GB Max Memory, 4x M.2 PCIe Slots, 2x PCIe 5.0 x16 Slots, Bluetooth v5.4

1 year warranty

  • Availability: In Stock
449.000 JOD
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS • PROART

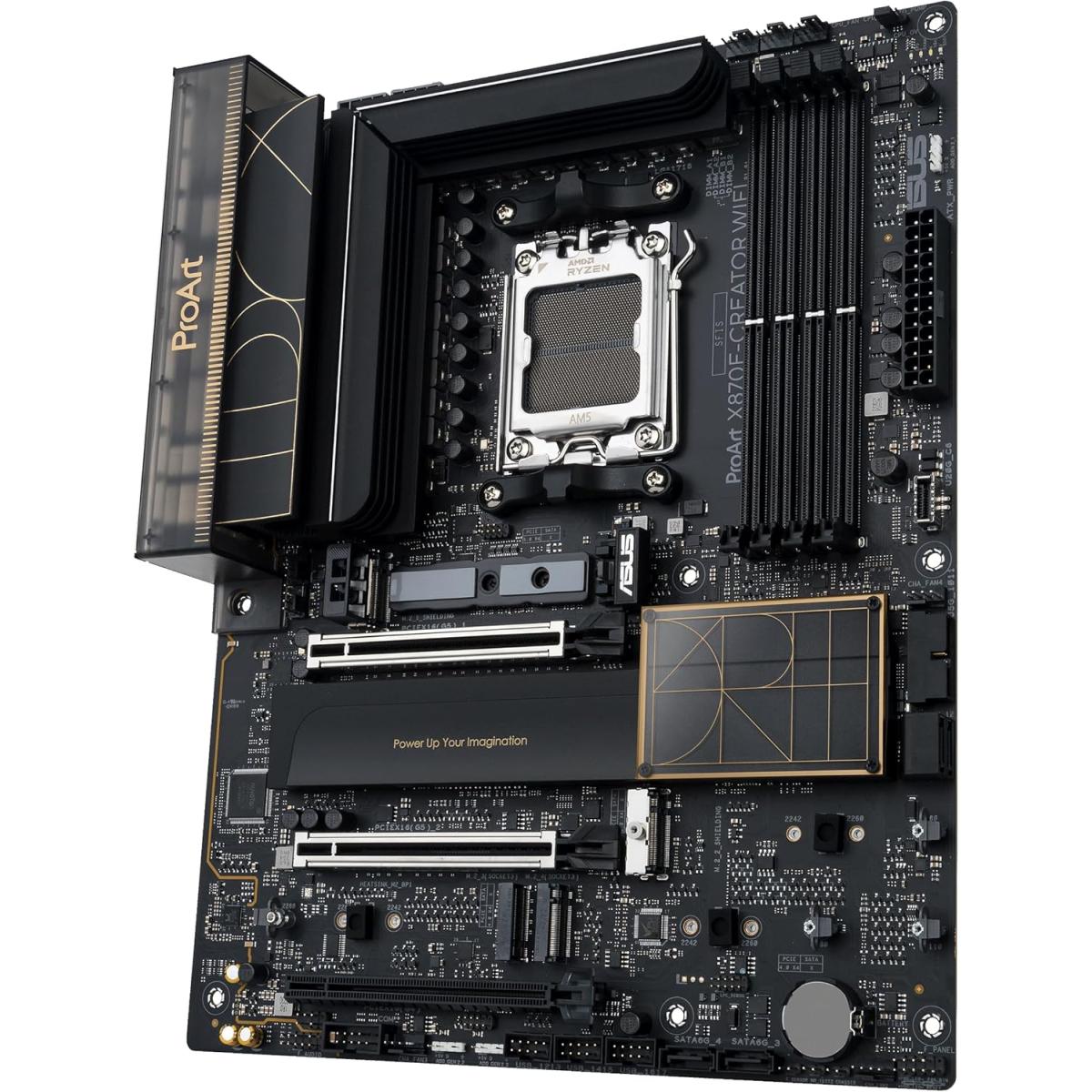

ProArt X870E-CREATOR WIFI
AMD X870E • AM5 • DDR5 • ATX • Wi-Fi 7
A professional-grade AMD AM5 motherboard designed for creators, professionals and high-performance workstations, combining PCIe 5.0 expansion, four M.2 slots, 10Gb Ethernet, 2.5Gb Ethernet, Wi-Fi 7 and USB4 connectivity.
AM5 X870E DDR5 PCIe 5.0 Wi-Fi 7 10GbE
AM5 CPU SOCKET
256GB MAX DDR5
M.2 SLOTS
10GbE NETWORK
PROART CREATOR PLATFORM

Professional Performance. Next-Generation Connectivity.

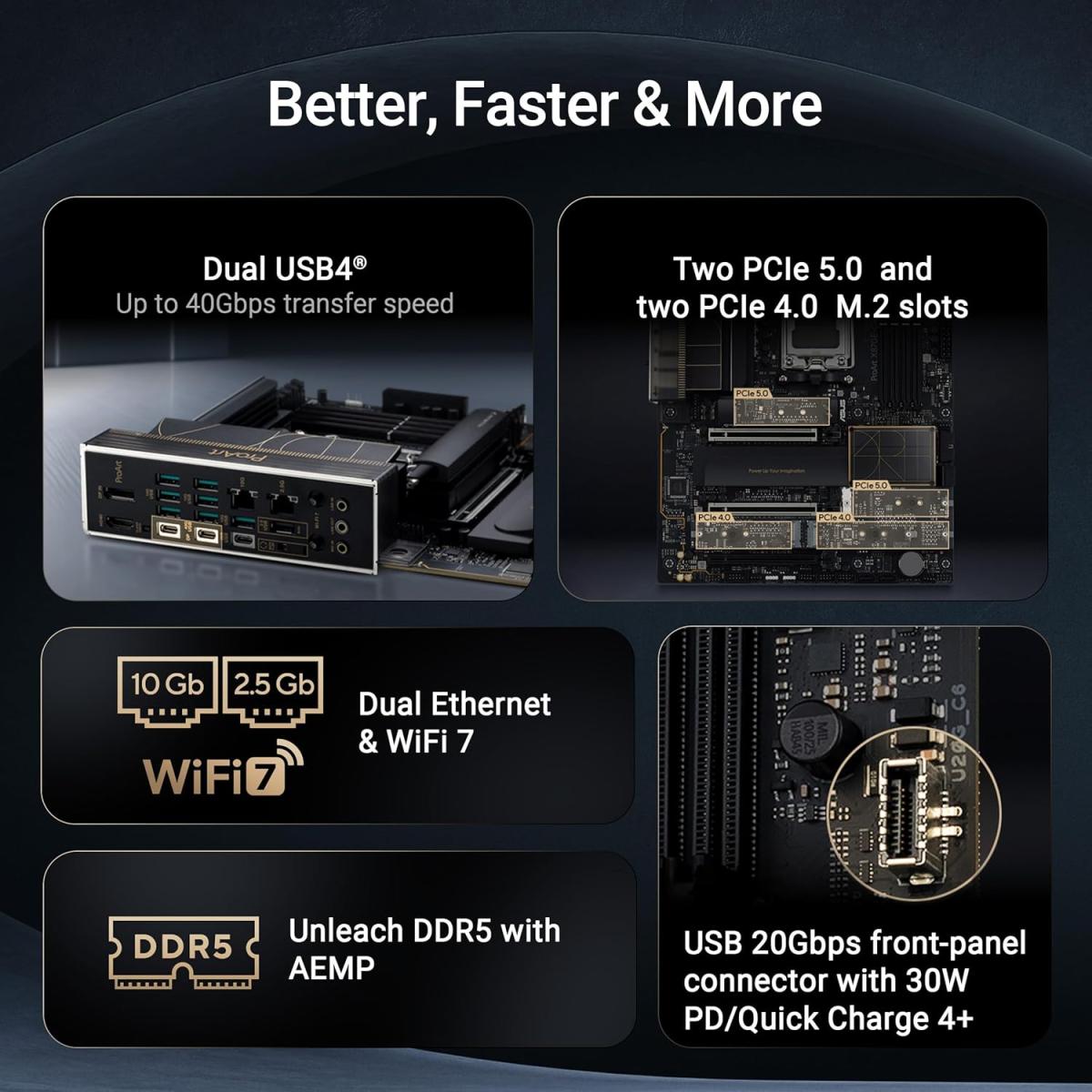

The ProArt X870E-Creator WiFi combines the AMD X870E platform with high-speed DDR5 memory, dual PCIe 5.0 x16 slots, four M.2 interfaces, 10Gb Ethernet, Wi-Fi 7 and USB4 for demanding creative workloads and high-performance systems.

01

Creator-Focused Connectivity

Built with 10Gb Ethernet, 2.5Gb Ethernet, Wi-Fi 7 and dual USB4 40Gbps ports for fast professional workflows and high-speed networking.

02

Dual PCIe 5.0 x16

Two PCIe 5.0 x16 slots support x16 or x8/x8 configurations, providing flexible expansion for graphics cards and professional accelerator hardware.

03

Four High-Speed M.2 Slots

Four M.2 slots provide extensive NVMe storage expansion, including two PCIe 5.0 x4 slots and two PCIe 4.0 x4 slots.

PROART

Engineered for Creators & Professional Workloads

From high-resolution content creation to demanding workstation applications, the ProArt X870E-Creator WiFi delivers high-bandwidth expansion, fast storage and professional networking in a clean ATX platform.

256GB MAX DDR5
GEN5 PCIe x16
M.2 STORAGE
10Gb ETHERNET

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E

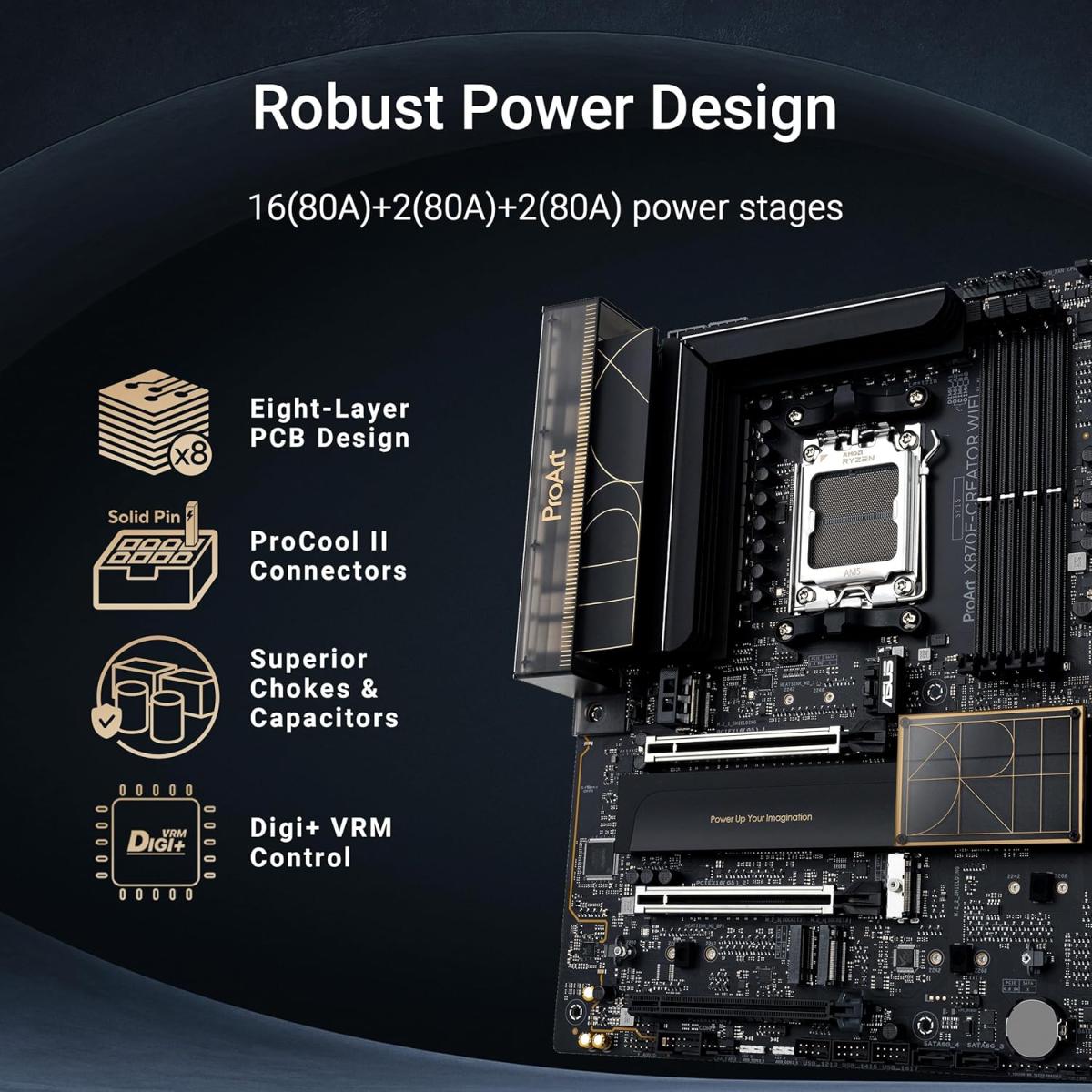

Power Design
16+2+2 Power Stages
Power Stage Rating
80A
Memory
Memory Type
DDR5
Memory Slots
4 × DIMM
Maximum Capacity
256GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-8000+ MT/s
Memory Profiles
AMD EXPO / ASUS AEMP
Memory Type
ECC & Non-ECC Unbuffered DDR5
On-Die ECC
Supported
Expansion Slots
Primary PCIe Slot
PCIe 5.0 x16
Secondary PCIe Slot
PCIe 5.0 x16
Third PCIe Slot
PCIe 4.0 x16 — Max x4
Dual GPU Configuration
x8 / x8
Triple Expansion Configuration
x8 / x4 / x4
Slot Release
Q-Release Slim
Storage
M.2 Slots
4 × M.2
M.2_1
PCIe 5.0 x4
M.2_2
PCIe 5.0 x4
M.2_3
PCIe 4.0 x4
M.2_4
PCIe 4.0 x4
M.2_1 / M.2_2 Sizes
2242 / 2260 / 2280
M.2_4 Sizes
2242 / 2260 / 2280 / 22110
SATA
4 × SATA 6Gb/s
RAID
PCIe RAID 0/1/5/10 & SATA RAID 0/1/5/10
Networking
Primary LAN
Marvell AQtion 10Gb Ethernet
Secondary LAN
Intel 2.5Gb Ethernet
LAN Protection
ASUS LANGuard
Wi-Fi
Wi-Fi 7
Wireless Configuration
2×2 Wi-Fi 7
Wireless Bands
2.4GHz / 5GHz / 6GHz
Wi-Fi Bandwidth
Up to 320MHz
Bluetooth
Bluetooth 5.4
USB Connectivity
USB4
2 × USB-C — 40Gbps
Rear USB 20Gbps
1 × USB-C
Rear USB 10Gbps
7 × USB-A
Rear USB 2.0
1 × USB-A
Front USB-C
USB 20Gbps with up to 30W PD / QC4+
Front USB 5Gbps
1 × Header — 2 Ports
Front USB 2.0
3 × Headers — 6 Ports
Display Outputs
HDMI
1 × HDMI 2.1
HDMI Maximum
4K @ 60Hz
USB4 Display
2 × USB-C Display Outputs
USB4 Display Maximum
Up to 8K @ 60Hz
Display Standard
DisplayPort 1.4
Audio
Audio Codec
Realtek S1220A
Audio Channels
7.1-Channel High Definition Audio
Audio Design
Dedicated Audio PCB Layers
Audio Protection
Audio Shielding
Capacitors
Premium Audio Capacitors
Special Features
De-pop Circuit
Rear I/O
USB4
2 × USB-C — 40Gbps
USB 20Gbps
1 × USB-C
USB 10Gbps
7 × USB-A
USB 2.0
1 × USB-A
LAN
10GbE + 2.5GbE
Wireless
Wi-Fi 7 + Bluetooth 5.4
HDMI
1 × HDMI 2.1
BIOS
BIOS FlashBack
Cooling & Thermal Design
VRM Cooling
Extended VRM Heatsinks
M.2 Cooling
M.2 Heatsinks
Chipset Cooling
Chipset Heatsink
Fan Headers
Multiple PWM/DC Fan Headers
Cooling Technology
ProArt Thermal Design

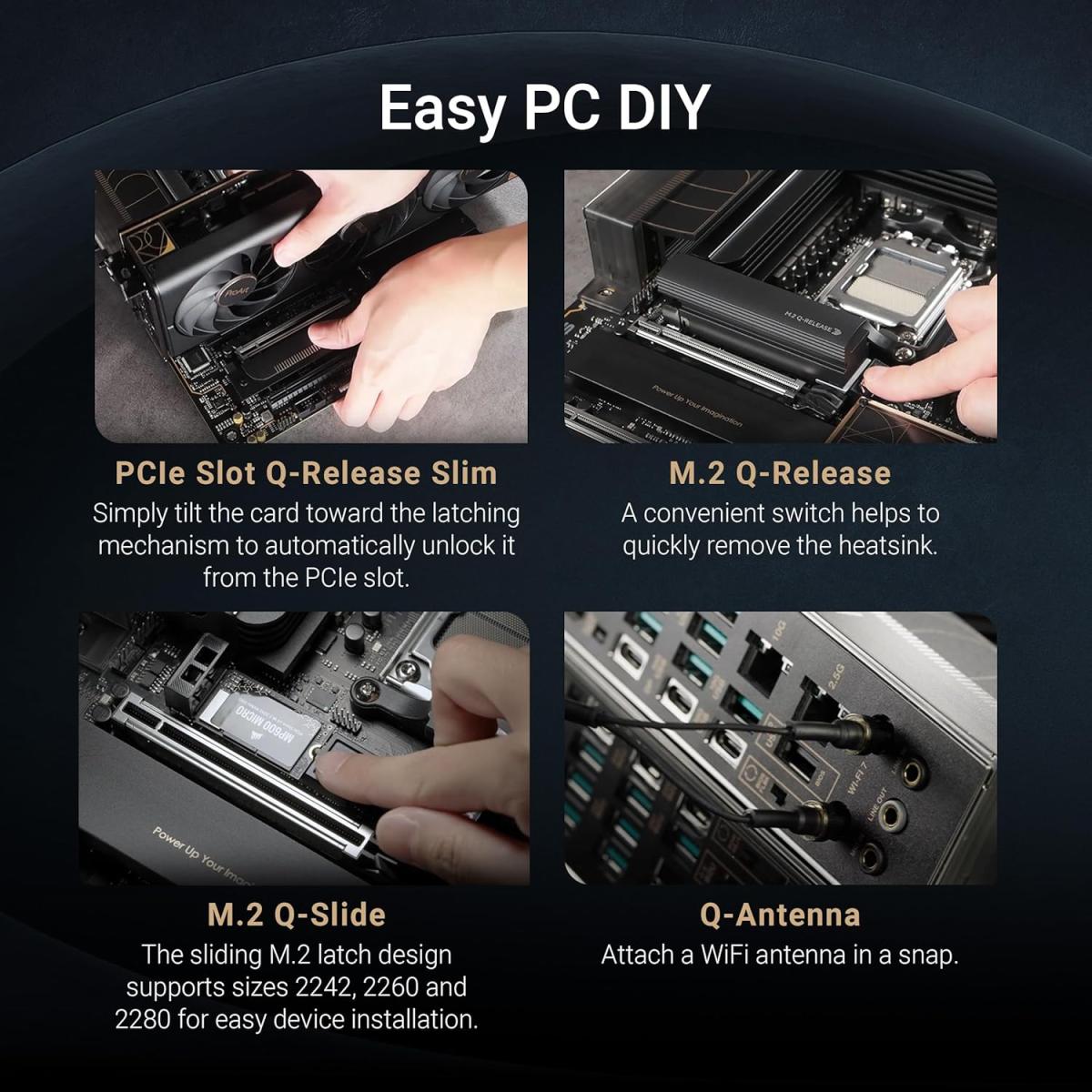

ProArt Features & EZ DIY
PCIe Installation
Q-Release Slim
M.2 Installation
Q-Latch
BIOS Update
BIOS FlashBack
Diagnostics
Q-LED
Memory Profile
ASUS AEMP / AMD EXPO
Networking Protection
ASUS LANGuard
RGB Lighting
RGB System
ASUS Aura Sync
Addressable RGB
3 × Addressable Gen 2 Headers
Lighting Software
Armoury Crate / Aura Sync
Software & Features
System Software
Armoury Crate
RGB Software
Aura Sync
Creator Software
ProArt Creator Hub
Memory Overclocking
AMD EXPO / ASUS AEMP
AI Features
ASUS AI Networking / AI Cooling
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Full Function
Windows 11 24H2 or Later
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Product Identification
Model
ProArt X870E-CREATOR WIFI
Chipset
AMD X870E
Platform
AMD AM5
Series
ASUS ProArt
Form Factor
ATX
