ASUS ROG CROSSHAIR X870E HERO, AMD AM5 Motherboard, DDR5 192GB Max Support EXPO, AI Intelligence, Wi-Fi 7, 2 x USB4 Ports, Overclocking Support

ASUS

ASUS ROG CROSSHAIR X870E HERO, AMD AM5 Motherboard, DDR5 192GB Max Support EXPO, AI Intelligence, Wi-Fi 7, 2 x USB4 Ports, Overclocking Support

1 year warranty

  • Availability: In Stock
599.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS • ROG CROSSHAIR
ROG CROSSHAIR X870E HERO
AMD X870E • AM5 • DDR5 • ATX • Wi-Fi 7
A flagship AMD AM5 motherboard engineered for extreme gaming, overclocking and high-end enthusiast systems, featuring PCIe 5.0 expansion, high-speed DDR5 memory, four M.2 slots, USB4 connectivity, advanced ROG power delivery and premium SupremeFX audio.
ROG AM5 X870E DDR5 PCIe 5.0 Wi-Fi 7
AM5 CPU SOCKET
192GB MAX DDR5
4× M.2 SLOTS
5GbE PRIMARY LAN
ROG CROSSHAIR PLATFORM

Engineered for Extreme Ryzen Performance.

The ROG CROSSHAIR X870E HERO combines the AMD X870E platform with flagship-class power delivery, DDR5 overclocking, PCIe 5.0 graphics and storage, USB4, Wi-Fi 7 and premium ROG audio for uncompromising enthusiast builds.

01

Extreme Overclocking

Designed for enthusiast Ryzen systems with advanced power delivery, extensive BIOS controls, DDR5 tuning and ASUS ROG overclocking technologies.

02

Dual PCIe 5.0 x16

Two PCIe 5.0 x16 slots provide flexible graphics expansion with x16 or x8/x8 configurations depending on the installed CPU and slot configuration.

03

Premium ROG Audio

ROG SupremeFX audio with the ALC4082 codec, ESS ES9219 QUAD DAC, premium capacitors and high-resolution 32-bit/384kHz playback.

ROG CROSSHAIR HERO

Flagship AMD Enthusiast Architecture

Built for high-end Ryzen gaming and workstation systems with PCIe 5.0, extreme DDR5 overclocking, four M.2 slots, USB4, 5GbE networking and premium ROG thermal engineering.

192GB MAX DDR5
PCIe 5.0 DUAL x16
4× M.2 STORAGE
40Gbps USB4

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E
Platform
AMD AM5
Overclocking
CPU / Memory Overclocking Support
Memory
Memory Type
DDR5
Memory Slots
4 × DIMM
Maximum Capacity
192GB
Architecture
Dual Channel
Maximum OC Speed
DDR5-8200+ MT/s
Ryzen 9000 Support
Up to 8200+ MT/s (OC)
Ryzen 8000 Support
Up to 8600+ MT/s (OC)
Ryzen 7000 Support
Up to 8000+ MT/s (OC)
Memory Profiles
AMD EXPO / ASUS AEMP
Memory Technology
ASUS NitroPath DRAM Technology
ECC Support
ECC / Non-ECC Unbuffered
Expansion Slots
Primary PCIe Slot
PCIe 5.0 x16
Secondary PCIe Slot
PCIe 5.0 x16
Single GPU Mode
x16
Dual GPU Mode
x8 / x8
Triple Configuration
x8 / x4 / x4
PCIe Release
Q-Release Slim
PCIe Reinforcement
SafeSlot
Storage
M.2 Slots
4 × M.2
M.2_1
PCIe 5.0 x4
M.2_2
PCIe 5.0 x4
M.2_3
PCIe 5.0 x4
M.2_4
PCIe 4.0 x4
M.2 Form Factors
2242 / 2260 / 2280
SATA
4 × SATA 6Gb/s
RAID
PCIe RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 5 / 10
Networking
Primary LAN
Realtek 5Gb Ethernet
Secondary LAN
Intel 2.5Gb Ethernet
Wi-Fi
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Wireless Configuration
2×2 Wi-Fi 7
Wireless Bands
2.4GHz / 5GHz / 6GHz
USB Connectivity
USB4
2 × USB-C — 40Gbps
Rear USB 10Gbps
8 × — 6 Type-A + 2 Type-C
Front USB-C
USB 20Gbps
Front USB-C Charging
Up to 60W PD / QC4+
Front USB 5Gbps
2 Headers / 4 Additional Ports
Front USB 2.0
2 Headers / 4 Additional Ports
Display Outputs
HDMI
1 × HDMI 2.1
HDMI Maximum
4K @ 60Hz
USB4 Display
2 × USB-C Display Outputs
USB4 Display Maximum
4K @ 60Hz
Display Standard
DisplayPort 1.4a
ROG SupremeFX Audio
Audio Codec
ROG SupremeFX ALC4082
Audio DAC
ESS ES9219 QUAD DAC
Playback SNR
120 dB Stereo
Recording SNR
110 dB
Maximum Playback
32-bit / 384kHz
Audio Technology
SupremeFX Shielding
Digital Audio
Optical S/PDIF Out

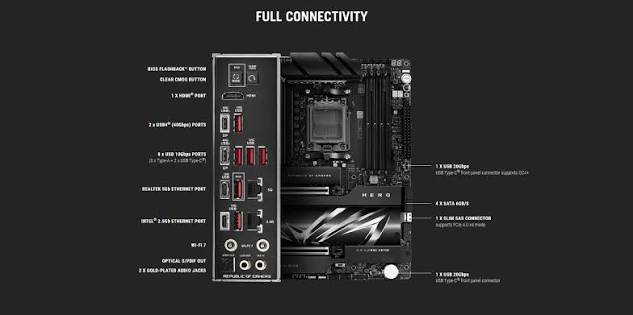

Rear I/O
USB4
2 × USB-C — 40Gbps
USB 10Gbps
8 × — 6 Type-A + 2 Type-C
LAN
5GbE + 2.5GbE
Wireless
Wi-Fi 7 + Bluetooth 5.4
Display
HDMI 2.1 + 2× USB4 DisplayPort
Audio
Gold-Plated Audio + Optical S/PDIF
BIOS
BIOS FlashBack
Clear CMOS
Dedicated Button
Cooling & Thermal Design
VRM Cooling
ROG VRM Heatsink Design
M.2 Cooling
M.2 Heatsink + Backplate
Chipset Cooling
Chipset Heatsink
Fan Control
ASUS Fan Xpert 4
Thermal Monitoring
Multiple Temperature Sensors

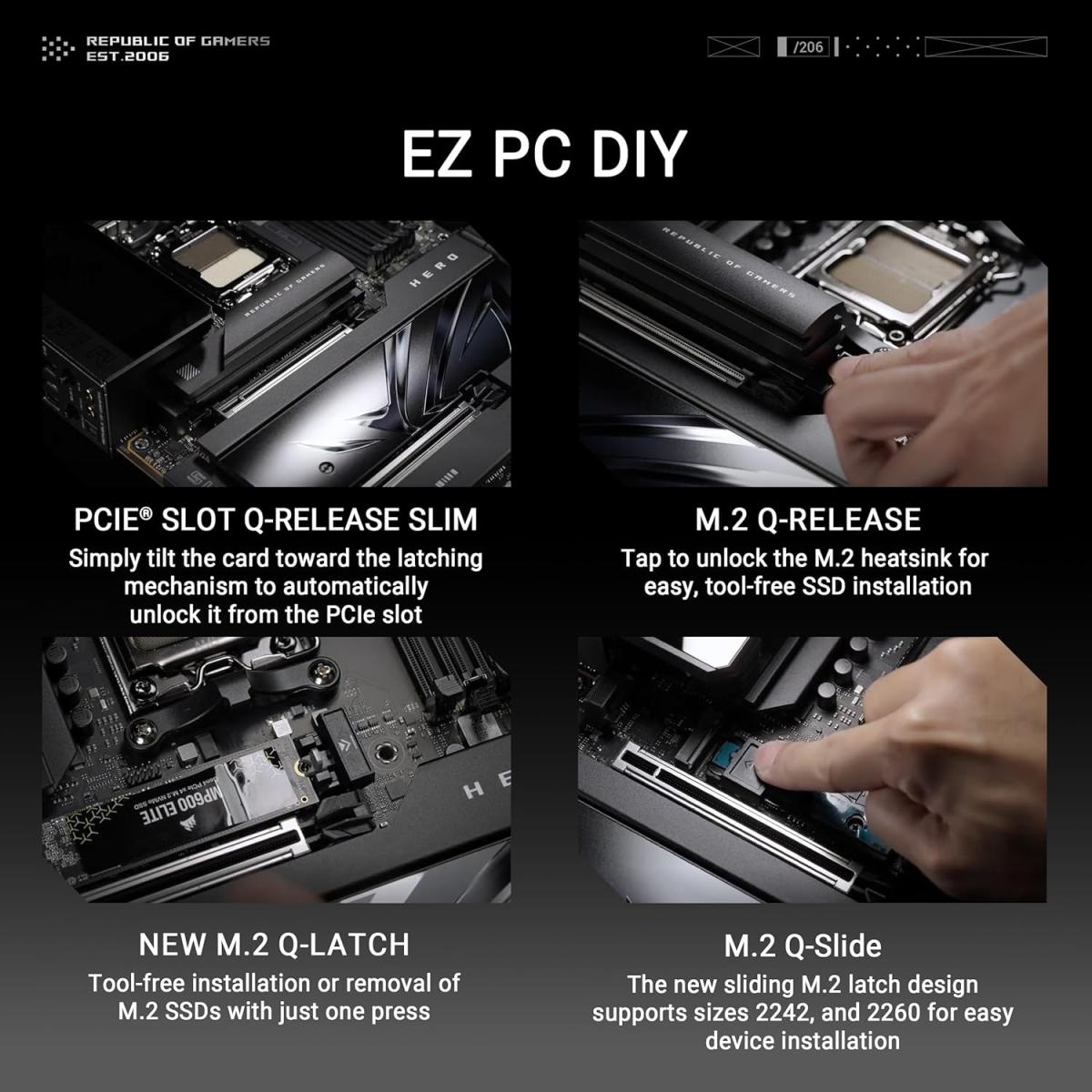

ROG Features & EZ DIY
PCIe Release
Q-Release Slim
M.2 Installation
Q-Latch / Q-Release / Q-Slide
Diagnostics
Q-Code + Q-LED
BIOS Update
BIOS FlashBack
BIOS Management
Q-Dashboard
Memory Protection
SafeDIMM
PCIe Protection
SafeSlot
RGB & Lighting
RGB System
ASUS Aura Sync
Addressable RGB
Addressable Gen2 Headers
Lighting
Polymo Lighting II
Lighting Software
Armoury Crate / Aura Sync
ASUS AI & Smart Features
AI Overclocking
ASUS AI Overclocking
AI Cooling
ASUS AI Cooling II
AI Networking
GameFirst / AI Networking
Memory Optimization
DIMM Flex
Memory Profile
EXPO / AEMP
Software & Utilities
System Software
Armoury Crate
Monitoring
HWiNFO / ASUS Monitoring Tools
ROG Utility
ROG CPU-Z
Audio Software
Dolby Atmos
Lighting
Polymo Lighting II / Aura Sync
Operating System
Supported OS
Windows 11 64-bit
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Product Identification
Model
ROG CROSSHAIR X870E HERO
Brand
ASUS
Series
ROG CROSSHAIR
Chipset
AMD X870E
Platform
AMD AM5
Form Factor
ATX
ASUS ROG CROSSHAIR X870E HERO AMD X870E • AM5 • DDR5 • PCIe 5.0 • 4× M.2 • Wi-Fi 7 • 5GbE + 2.5GbE • USB4 • ATX
