New

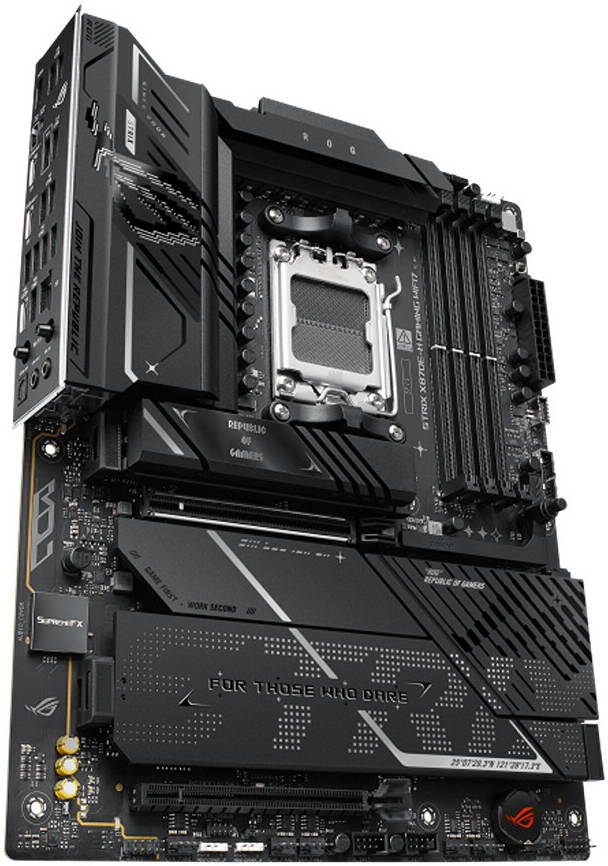

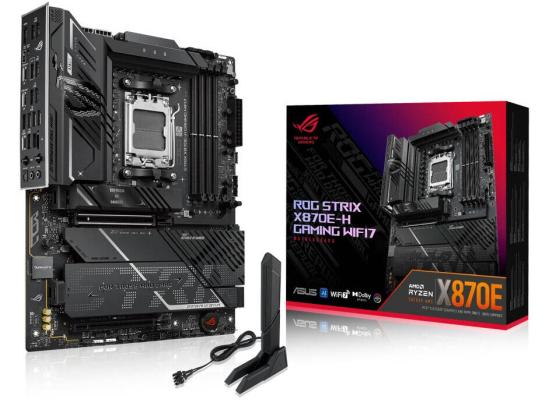

ASUS ROG STRIX X870E-H GAMING WIFI 7 ATX Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1x PCIe 5.0 x16 Slots, 4 x M.2 Slots

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI 7 ATX Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, 256GB Max Memory, 1x PCIe 5.0 x16 Slots, 4 x M.2 Slots

1 year warranty

  • Availability: In Stock
349.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS • ROG STRIX
ROG STRIX X870E-H GAMING WIFI7
AMD X870E • AM5 • DDR5 • ATX • Wi-Fi 7
A high-performance AMD AM5 gaming motherboard built for Ryzen 9000, 8000 and 7000 Series processors, featuring DDR5 memory, PCIe 5.0 graphics, four M.2 slots, Wi-Fi 7, 5Gb Ethernet, USB4 and advanced ROG thermal and power design.
AM5 X870E DDR5 PCIe 5.0 Wi-Fi 7 5GbE
AM5 CPU SOCKET
256GB MAX DDR5
4× M.2 SLOTS
Wi-Fi 7 WIRELESS
ROG STRIX X870E PLATFORM

Extreme Gaming Performance. Next-Generation Connectivity.

The ROG STRIX X870E-H GAMING WIFI7 combines a powerful AM5 platform with DDR5-8000+ memory support, PCIe 5.0, dual PCIe 5.0 M.2 interfaces, Wi-Fi 7, 5Gb Ethernet, USB4 and premium ROG cooling and power delivery.

01

16+2+1 80A Power Stages

A powerful 16+2+1 power-stage design with 80A stages provides robust and stable power delivery for demanding AMD Ryzen processors.

02

Dual PCIe 5.0 M.2

Four M.2 slots provide extensive NVMe expansion, including two PCIe 5.0 x4 slots and two PCIe 4.0 x4 slots.

03

Wi-Fi 7 & 5GbE

High-speed networking combines 2×2 Wi-Fi 7, Bluetooth 5.4 and Realtek 5Gb Ethernet for fast wired and wireless connectivity.

ROG STRIX

Engineered for High-End AMD Gaming Systems

With DDR5-8000+ overclocking, PCIe 5.0 graphics, dual Gen5 M.2 storage, USB4, Wi-Fi 7 and 5Gb Ethernet, the X870E-H provides the performance and connectivity required for modern enthusiast gaming builds.

4 DDR5 DIMM SLOTS
8000+ DDR5 MT/s OC
2× GEN5 M.2
5Gb ETHERNET

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E
Power Design
16+2+1 Power Stages
Power Stage Rating
80A
CPU Power
Dual ProCool II Power Connectors
Memory
Memory Type
DDR5
Memory Slots
4 × DIMM
Maximum Capacity
256GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-8000+ MT/s
Memory Profiles
AMD EXPO / ASUS AEMP
DIMM Support
DIMM Fit / DIMM Fit Pro
Memory Type
Non-ECC Unbuffered DDR5
On-Die ECC
Supported
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot Mode
x16
Primary Slot Design
PCIe 5.0 SafeSlot
Secondary PCIe Slot
1 × PCIe 4.0 x16
Secondary Slot Mode
x4
PCIe Release
PCIe Slot Q-Release
Storage
M.2 Slots
4 × M.2
M.2_1
PCIe 5.0 x4
M.2_2
PCIe 5.0 x4
M.2_3
PCIe 4.0 x4
M.2_4
PCIe 4.0 x4
M.2_1 Size
2242 / 2260 / 2280
M.2_2 Size
2280 / 22110
M.2_3 Size
2280
M.2_4 Size
2280
SATA
4 × SATA 6Gb/s
RAID
RAIDXpert2
Ryzen 9000 RAID
RAID 0 / 1 / 5 / 10
Ryzen 8000 RAID
RAID 0 / 1
Ryzen 7000 RAID
RAID 0 / 1 / 10
Bandwidth Sharing
M.2_2 shares bandwidth with PCIe 5.0 x16
Networking
LAN Controller
Realtek 5Gb Ethernet
LAN Speed
5Gbps
LAN Protection
ASUS LANGuard
Wi-Fi
Wi-Fi 7
Wi-Fi Module
Realtek RTL8922AE
Wireless Configuration
2×2 Wi-Fi 7
Wireless Standard
802.11be
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wi-Fi Bandwidth
160MHz
Bluetooth
Bluetooth 5.4
USB Connectivity
USB4
2 × USB Type-C — 40Gbps
Rear USB 10Gbps
4 × — 3 Type-A + 1 Type-C
USB-C Power Delivery
Up to 30W PD / PPS Fast-Charge
Rear USB 5Gbps
6 × USB Type-A
Rear USB 2.0
2 × USB Type-A
Front USB 20Gbps
1 × USB Type-C Header
Front USB 5Gbps
1 × Header — 2 Ports
Front USB 2.0
2 × Headers — 4 Ports
Audio
Audio Codec
Realtek ALC1220P
Audio Amplifier
Savitech SV3H712 AMP
Playback SNR
120 dB Stereo Playback
Recording SNR
113 dB Recording Input
Audio Shielding
SupremeFX Shielding
Audio Technology
Dolby Atmos
Digital Audio
Optical S/PDIF Out
Display Outputs
HDMI
1 × HDMI 2.1
HDMI Maximum
4K @ 60Hz
USB4 Display
2 × USB4 Type-C
USB4 Display Standard
DisplayPort 1.4a
USB4 Display Maximum
4K @ 60Hz
Rear I/O
USB4
2 × USB Type-C — 40Gbps
USB 10Gbps
4 × — 3 Type-A + 1 Type-C
USB-C PD
Up to 30W PD / PPS
USB 5Gbps
6 × USB Type-A
USB 2.0
2 × USB Type-A
LAN
1 × 5Gb Ethernet
Wireless
Wi-Fi 7 + Bluetooth 5.4
HDMI
1 × HDMI 2.1
Audio
2 × Audio Jacks + Optical S/PDIF
BIOS
BIOS FlashBack
Clear CMOS
Clear CMOS Button
Internal Connectivity
Main Power
1 × 24-pin Main Power
CPU Power
2 × 8-pin +12V
CPU Fan
1 × 4-pin CPU Fan
CPU OPT
1 × 4-pin CPU OPT Fan
AIO Pump
1 × 4-pin AIO Pump
Chassis Fans
5 × 4-pin Chassis Fan
ARGB
3 × Addressable Gen 2 Headers
Front USB-C
1 × USB 20Gbps Header
Front USB 5Gbps
1 × Header — 2 Ports
Front USB 2.0
2 × Headers — 4 Ports
Thermal Sensor
1 × Thermal Sensor Header
Cooling & Thermal Design
VRM Cooling
VRM Heatsink Design
M.2 Cooling
4 × M.2 Heatsinks
Chipset Cooling
Chipset Heatsink
AIO
Dedicated AIO Pump Header
Chassis Fans
5 × 4-pin PWM Fan Headers
Fan Control
ASUS AI Cooling II
ROG Features & EZ DIY
PCIe Installation
PCIe Slot Q-Release
M.2 Installation
M.2 Q-Latch / Q-Release
Memory Installation
Q-DIMM
Diagnostics
Q-LED
Wi-Fi Antenna
Q-Antenna
System Monitoring
Q-Dashboard
BIOS Update
BIOS FlashBack
AI Features
AI Advisor / AI Overclocking
AI Networking
AI Networking II
AI Cooling
AI Cooling II
RGB Lighting
RGB System
ASUS Aura Sync
Addressable RGB
3 × Addressable Gen 2 Headers
Lighting Software
Armoury Crate / Aura Sync
BIOS & Software
BIOS
UEFI AMI BIOS
BIOS Update
BIOS FlashBack
System Software
Armoury Crate
RGB Software
Aura Sync
Memory Overclocking
AMD EXPO / ASUS AEMP
AI Software
AI Advisor / AI Networking II / AI Cooling II
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Full Function
Windows 11 24H2 or Later
Windows 11 Older Versions
Wi-Fi 6E Support
Windows 10
Wi-Fi 6 Support
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Product Identification
Model
ROG STRIX X870E-H GAMING WIFI7
Chipset
AMD X870E
Platform
AMD AM5
Series
ROG STRIX
Form Factor
ATX
ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E • AM5 • DDR5 • PCIe 5.0 • 4× M.2 • Wi-Fi 7 • 5GbE • USB4 • ATX
