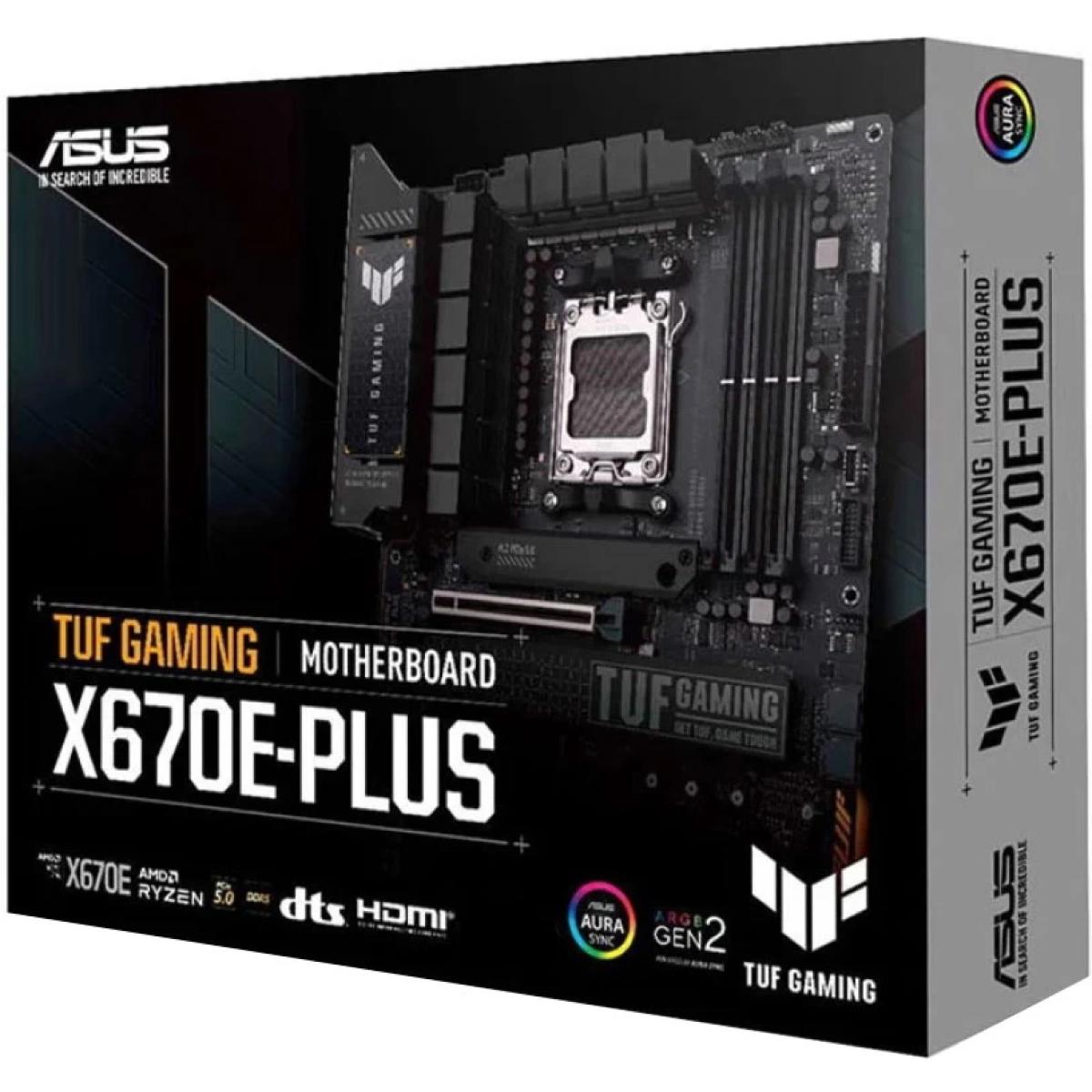

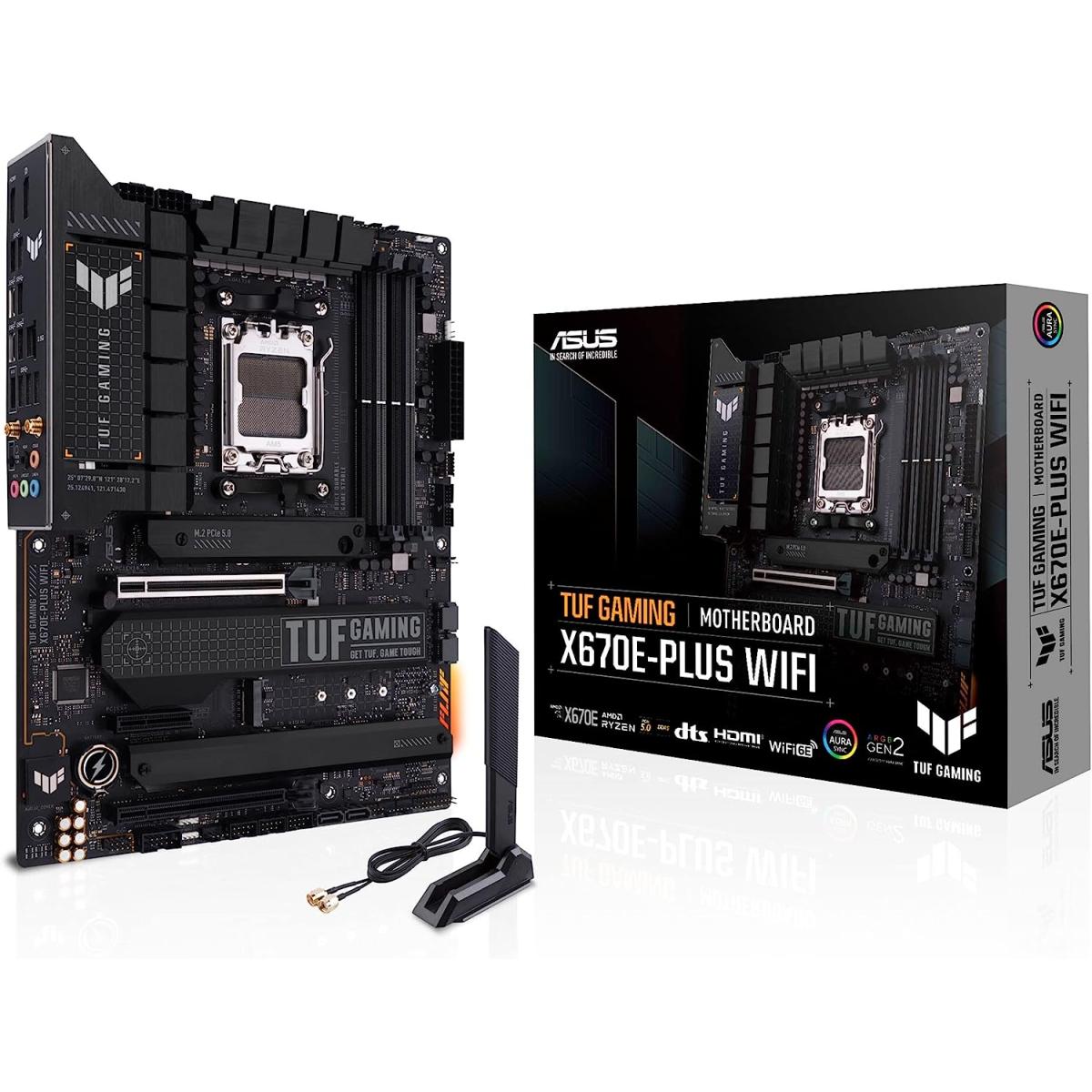

ASUS TUF Gaming X670E-PLUS DDR5 AM5 Ryzen 7000 PCIe® 5.0 4x M.2 Slots 2.5 Gb LAN USB 4 Aura RGB Lighting)

1 year warranty

Availability: In Stock

269.000 JOD

Order Via WhatsApp Get offer by email

SH Certified / inspected
Delivery across Jordan
1 year warranty
Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS • TUF GAMING

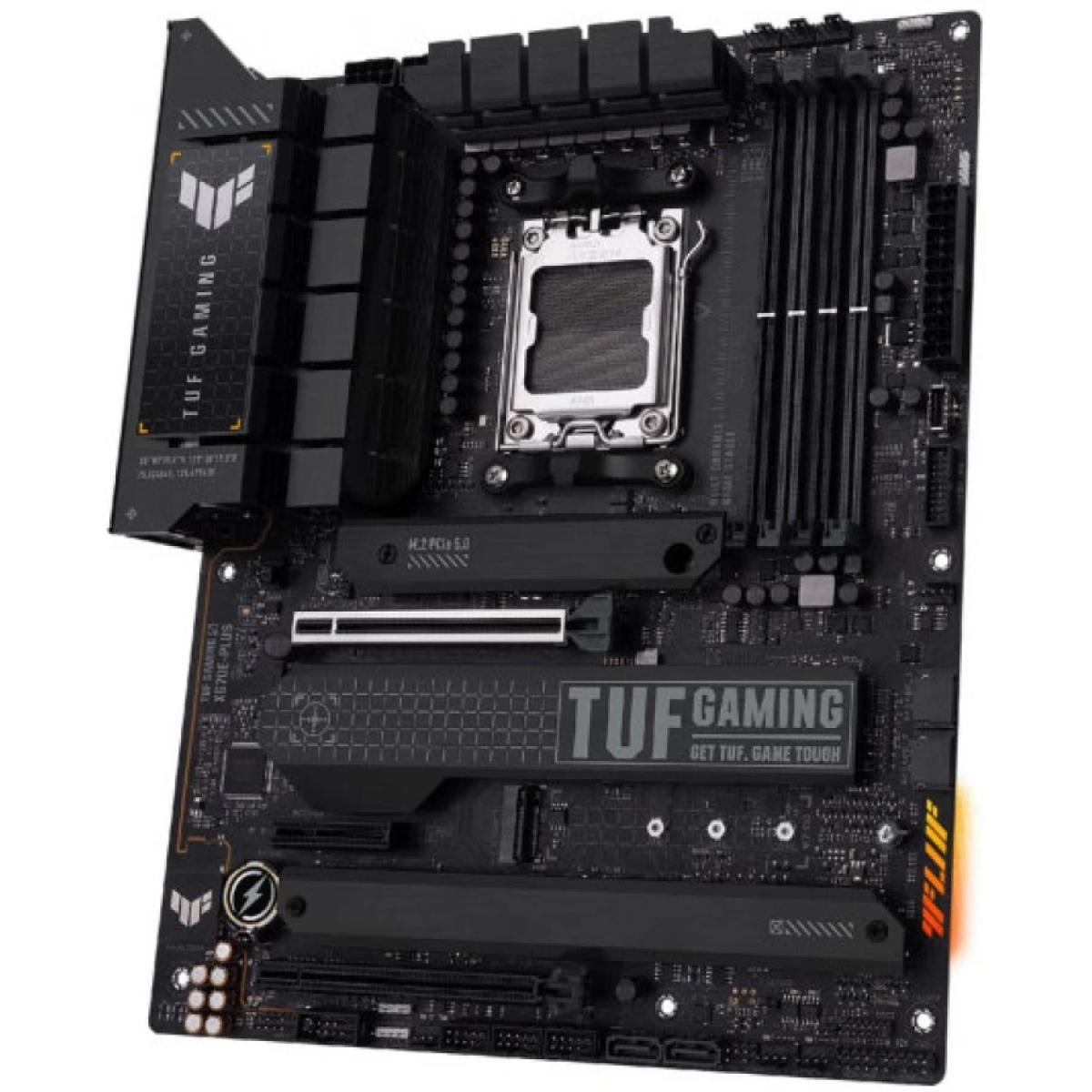

TUF GAMING X670E-PLUS

AMD X670 • AM5 • DDR5 • ATX • PCIe 5.0

A durable AMD AM5 gaming motherboard built for Ryzen processors, combining high-speed DDR5 memory, PCIe 5.0 graphics and storage, four M.2 slots, 2.5Gb Ethernet, advanced TUF thermal design and Aura Sync RGB lighting.

AM5 X670 DDR5 PCIe 5.0 4× M.2 AURA SYNC

AM5 CPU SOCKET

192GB MAX DDR5

4× M.2 SLOTS

2.5GbE LAN

TUF GAMING PLATFORM

Built for Reliable Ryzen Gaming

The TUF GAMING X670E-PLUS provides a powerful AM5 foundation with DDR5 memory support, PCIe 5.0 graphics, four M.2 storage slots, 2.5Gb Ethernet and robust TUF Gaming power and thermal features for demanding gaming systems.

14+2+2 Power Stages

A robust 14(70A)+2(70A)+2 power-stage design provides stable power delivery for AMD Ryzen processors.

PCIe 5.0 & 4× M.2

Features a PCIe 5.0 x16 graphics slot and four M.2 connectors, including a PCIe 5.0 x4 interface.

TUF Audio & 2.5GbE

Realtek S1220A 7.1-channel audio and 2.5Gb Ethernet provide premium sound and fast wired networking.

TUF GAMING

Performance. Durability. Connectivity.

Engineered with TUF Gaming protection, advanced VRM cooling, PCIe 5.0, DDR5 and extensive storage expansion, the X670E-PLUS is designed for long-term gaming performance.

4 DDR5 DIMM SLOTS

8000+ DDR5 MT/s OC

5.0 PCIe x16

2.5Gb LAN

Technical Specifications

Processor & Chipset

CPU Socket

AMD Socket AM5

Supported Processors

AMD Ryzen 9000 / 8000 / 7000 Series

Chipset

AMD X670

VRM Power Design

14+2+2 Power Stages

VCORE Power Stage

14 × 70A

SOC Power Stage

2 × 70A

Memory

Memory Type

DDR5

Memory Slots

4 × DIMM

Maximum Capacity

192GB

Memory Architecture

Dual Channel

Maximum OC Speed

DDR5-8000+ MT/s

Supported Speeds

DDR5-4800 to DDR5-8000+ (OC)

Memory Profiles

AMD EXPO

Memory Technology

OptiMem II

Memory Type

ECC & Non-ECC Unbuffered

On-Die ECC

Supported on Non-ECC DDR5

Expansion Slots

Primary PCIe Slot

1 × PCIe 5.0 x16

Primary Slot Mode

x16

Secondary PCIe

1 × PCIe 4.0 x16 — max x4

Additional PCIe

1 × PCIe 4.0 x4

PCIe Protection

SafeSlot Core+

Storage

M.2 Slots

4 × M.2

M.2_1

PCIe 5.0 x4

M.2_2

PCIe 3.0 x4 / SATA Mode

M.2_3

PCIe 4.0 x4

M.2_4

PCIe 4.0 x4

M.2 Sizes

2242 / 2260 / 2280

M.2_2 Maximum Length

Up to 22110

SATA

4 × SATA 6Gb/s

NVMe RAID

RAID 0 / 1 / 10

SATA RAID

RAID 0 / 1 / 10

M.2_2 Bandwidth

Shares bandwidth with SATA 6Gb/s ports 1 & 2

Networking

LAN Controller

Realtek 2.5Gb Ethernet

LAN Speed

2.5Gbps

LAN Protection

TUF LANGuard

Wireless

Not Included

Bluetooth

Not Included

USB Connectivity

Rear USB

10 Ports Total

Rear USB 3.2 Gen 2x2

1 × USB Type-C — 20Gbps

Rear USB 3.2 Gen 2

4 × — 3 Type-A + 1 Type-C

Rear USB 3.2 Gen 1

5 × Type-A

Front USB Type-C

1 × USB 3.2 Gen 2

Front USB 3.2 Gen 1

Header for 2 Ports

Front USB 2.0

3 Headers for 6 Ports

Audio

Audio Codec

Realtek S1220A

Audio Channels

7.1 Surround Sound

Playback SNR

120 dB Stereo

Recording SNR

113 dB Line-In

Maximum Playback

32-bit / 192kHz

Audio Technology

DTS Audio Processing

Audio Features

Audio Shielding / Premium Capacitors / Audio Cover

Display Outputs

DisplayPort

1 × DisplayPort 1.4

DisplayPort Maximum

8K @ 60Hz

HDMI

1 × HDMI 2.1

HDMI Maximum

4K @ 60Hz

Graphics Requirement

CPU with Integrated Graphics

Rear I/O

USB 3.2 Gen 2x2

1 × USB Type-C

USB 3.2 Gen 2

4 × — 3 Type-A + 1 Type-C

USB 3.2 Gen 1

5 × Type-A

LAN

1 × 2.5Gb Ethernet

DisplayPort

1 × DP 1.4

HDMI

1 × HDMI 2.1

Audio

5 × Audio Jacks

BIOS

BIOS FlashBack Button

Internal Connectivity

Main Power

1 × 24-pin ATX

CPU Power

2 × 8-pin +12V

CPU Fan

1 × 4-pin CPU Fan

CPU OPT Fan

1 × 4-pin CPU OPT

AIO Pump

1 × 4-pin AIO Pump

Chassis Fans

4 × 4-pin Chassis Fan

Water Pump

1 × W_PUMP+

ARGB

3 × Addressable Gen 2 Headers

AURA RGB

1 × 4-pin Aura RGB Header

Thunderbolt

1 × Thunderbolt Header

Thermal Sensor

1 × Header

Clear CMOS

1 × Header

Cooling & Thermal Design

VRM Cooling

Extended VRM Heatsinks

Chipset Cooling

Dedicated Chipset Heatsink

M.2 Cooling

M.2 Heatsinks

Fan Headers

CPU / CPU OPT / AIO + 4 Chassis + W_PUMP+

Fan Control

Fan Xpert 4

AI Cooling

AI Cooling II

TUF Protection & Features

Power Design

DIGI+ VRM with DrMOS

ESD Protection

ESD Guards

LAN Protection

TUF LANGuard

Overvoltage Protection

ASUS Overvoltage Protection

PCIe Protection

SafeSlot Core+

Memory Protection

SafeDIMM

Rear I/O

Stainless-Steel Back I/O

ASUS Q-Design & EZ DIY

M.2 Installation

M.2 Q-Latch

Memory Installation

Q-DIMM

Diagnostic LEDs

Q-LED

PCIe Installation

Q-Slot

BIOS Update

BIOS FlashBack

BIOS Recovery

BIOS FlashBack LED

I/O Shield

Pre-mounted I/O Shield

Power Delivery

ProCool Connectors

RGB Lighting

RGB System

ASUS Aura Sync

Addressable RGB

3 × Addressable Gen 2 Headers

RGB Header

1 × Aura RGB Header

Board Lighting

Aura Edge Lighting

BIOS & Software

BIOS

256Mb Flash ROM — UEFI AMI BIOS

BIOS Update

ASUS EZ Flash 3

BIOS Recovery

ASUS CrashFree BIOS 3

System Software

Armoury Crate

RGB Software

AURA Sync

Fan Control

Fan Xpert 4

Power Management

ASUS Power Saving

AI Features

Two-Way AI Noise Cancellation

Operating System

Supported OS

Windows 11 64-bit / Windows 10 64-bit

Physical Specifications

Form Factor

ATX

Dimensions

30.5 × 24.4cm

Dimensions

12 × 9.6 inches

Product Identification

Model

ASUS TUF GAMING X670E-PLUS

Chipset

AMD X670

Platform

AMD AM5

Series

TUF GAMING
