New

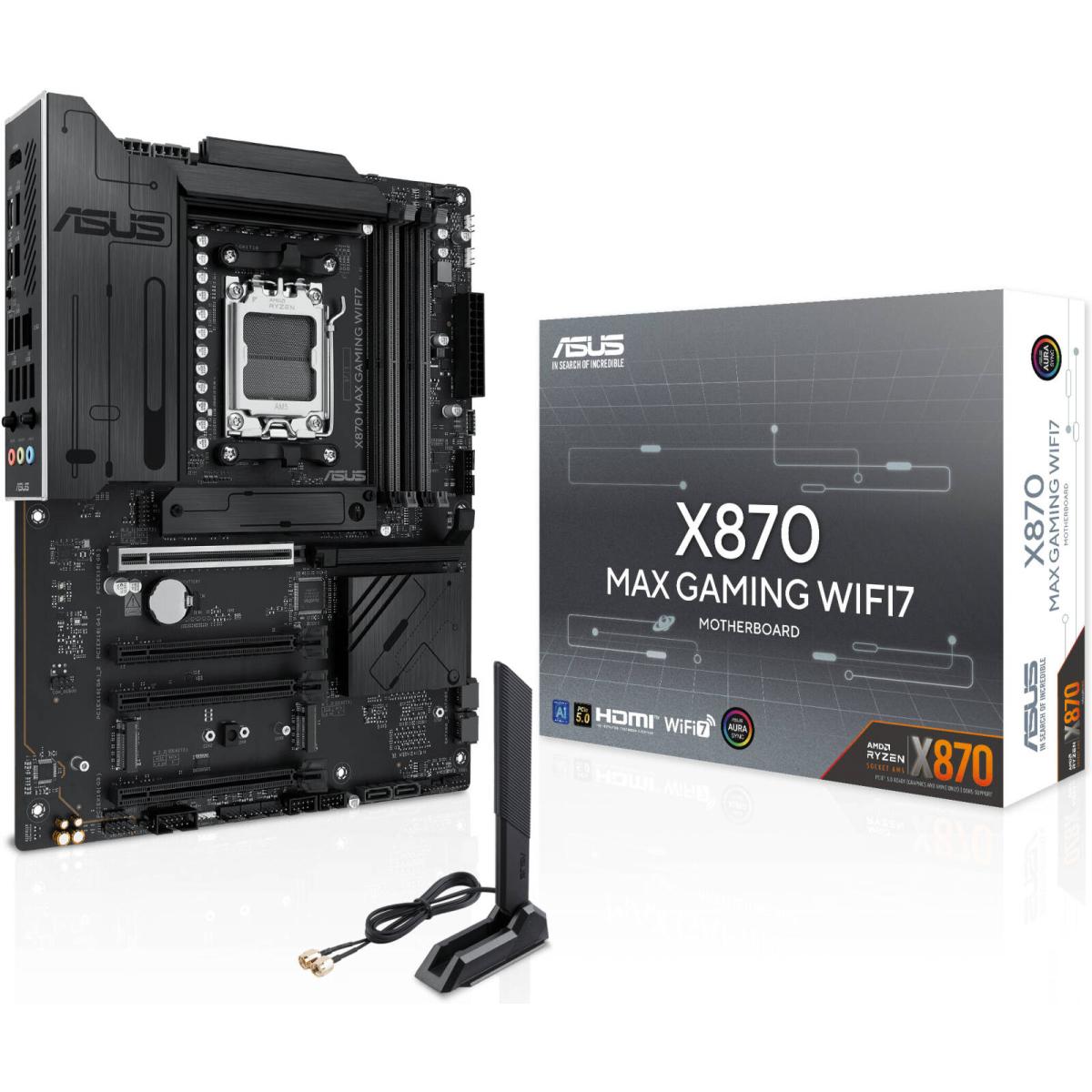

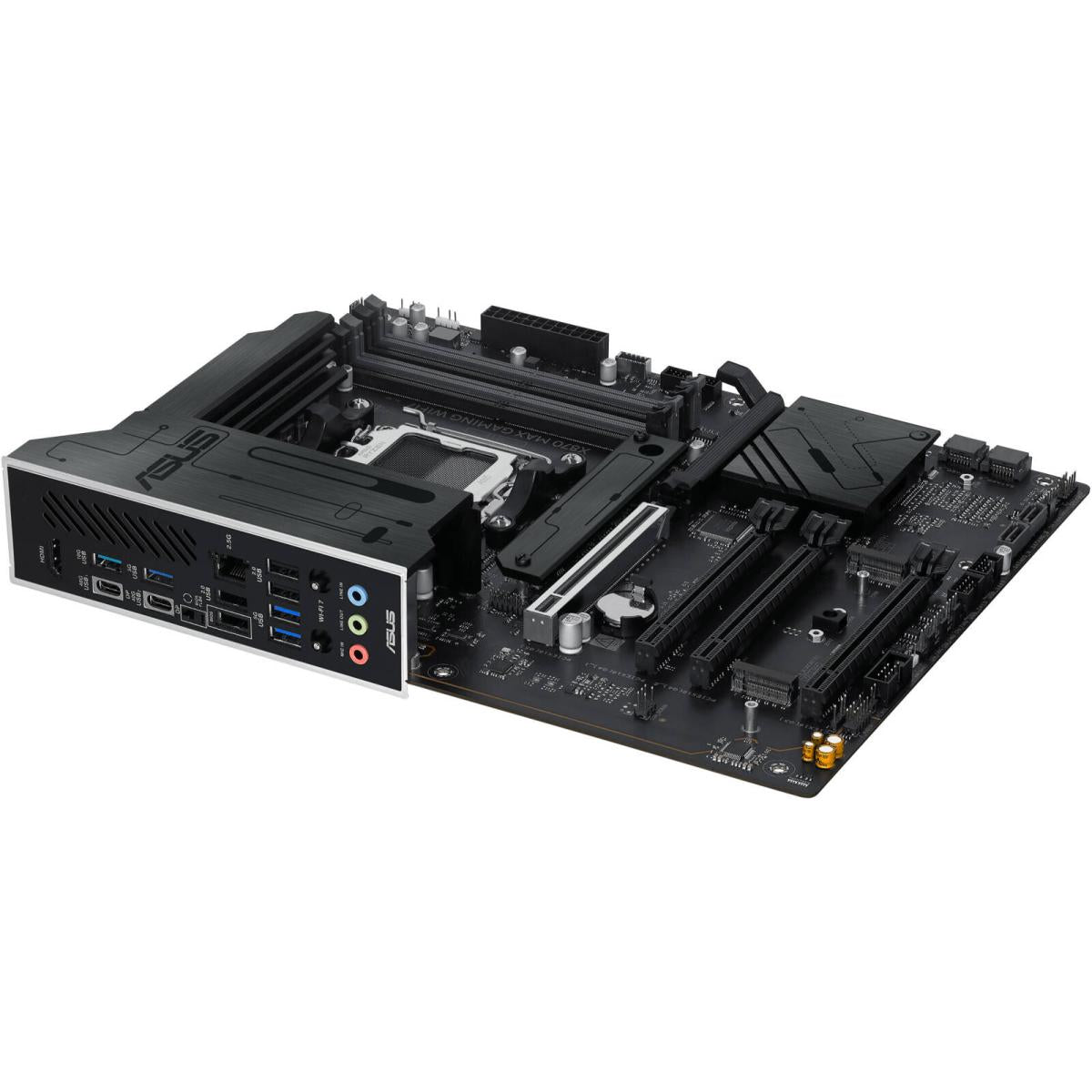

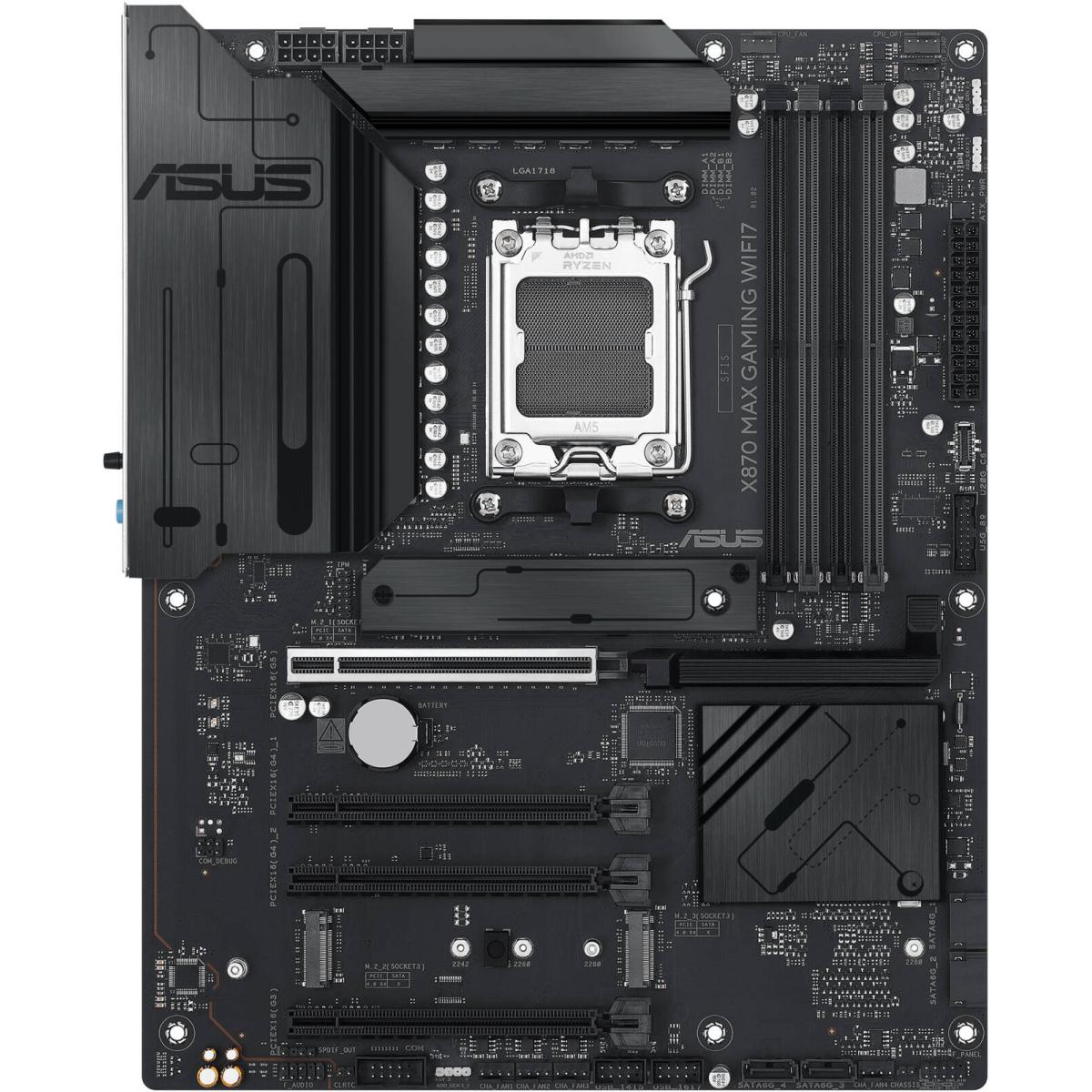

ASUS X870 MAX GAMING WIFI7 W AM5 ATX Motherboard, AMD X870 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, Wi-Fi 7 & Bluetooth v5.4, Black

1 year warranty

Availability: In Stock

299.000 JOD

Order Via WhatsApp Get offer by email

SH Certified / inspected
Delivery across Jordan
1 year warranty
Expert help on WhatsApp

Product Specifications

Full technical details for this system

ASUS • MAX GAMING

X870 MAX GAMING WIFI7 W

AMD X870 • AM5 • DDR5 • ATX • Wi-Fi 7

A next-generation AMD AM5 gaming motherboard engineered for Ryzen 9000, 8000 and 7000 Series processors, combining high-speed DDR5 memory, PCIe 5.0 graphics, three M.2 NVMe slots, Wi-Fi 7, Bluetooth 5.4, 2.5Gb Ethernet and USB4 connectivity.

AM5 X870 DDR5 PCIe 5.0 Wi-Fi 7 2.5GbE

AM5 CPU SOCKET

256GB MAX DDR5

3× M.2 NVMe

Wi-Fi 7 WIRELESS

ASUS X870 GAMING PLATFORM

Next-Generation Performance. Maximum Connectivity.

The X870 MAX GAMING WIFI7 W delivers a powerful foundation for modern AMD systems with DDR5 memory support, PCIe 5.0 graphics, PCIe 5.0 NVMe storage, Wi-Fi 7, 2.5Gb Ethernet and dual USB4 40Gbps Type-C connectivity.

12+2+1 80A Power Stages

A robust 12+2+1 power-stage design with 80A stages provides stable and efficient power delivery for demanding AMD Ryzen processors.

PCIe 5.0 & Triple M.2

The primary PCIe slot supports PCIe 5.0 x16 while the first M.2 slot supports PCIe 5.0 x4 for next-generation NVMe SSD performance.

Wi-Fi 7 & USB4

High-speed networking is combined with Wi-Fi 7, Bluetooth 5.4, 2.5Gb Ethernet and two USB4 40Gbps Type-C ports.

MAX GAMING

Built for Modern AMD Gaming Systems

From DDR5-8000+ overclocking and PCIe 5.0 to Wi-Fi 7, USB4 and 2.5Gb Ethernet, the X870 MAX GAMING WIFI7 W provides the connectivity and expansion needed for high-performance gaming PCs.

4 DDR5 DIMM SLOTS

8000+ DDR5 MT/s OC

5.0 PCIe x16

40Gbps USB4

Technical Specifications

Processor & Chipset

CPU Socket

AMD Socket AM5

Supported Processors

AMD Ryzen 9000 / 8000 / 7000 Series

Chipset

AMD X870

Power Design

12+2+1 Power Stages

Power Stage Rating

80A

Memory

Memory Type

DDR5

Memory Slots

4 × DIMM

Maximum Capacity

256GB

Memory Architecture

Dual Channel

Maximum OC Speed

DDR5-8000+ MT/s

Memory Profiles

AMD EXPO / ASUS AEMP

Memory Type

ECC & Non-ECC Unbuffered DIMM

On-Die ECC

Supported

Expansion Slots

Primary PCIe Slot

1 × PCIe 5.0 x16

Primary Slot Mode

x16

Secondary PCIe

2 × PCIe 4.0 x16 — x1 mode

Additional PCIe

1 × PCIe 3.0 x16 — x1 mode

PCIe Protection

SafeSlot with Q-Release

Ryzen 9000 / 7000

PCIe 5.0 x16

Ryzen 8000

PCIe 4.0 x8 / x4 depending on CPU

Storage

M.2 Slots

3 × M.2

M.2_1

PCIe 5.0 x4

M.2_2

PCIe 4.0 x4

M.2_3

PCIe 4.0 x4

M.2_1 Size

2280

M.2_2 Sizes

2242 / 2260 / 2280

M.2_3 Size

2280

SATA

4 × SATA 6Gb/s

NVMe RAID

RAID 0 / 1 / 5 / 10

Ryzen 8000 RAID

RAID 0 / 1

Ryzen 7000 RAID

RAID 0 / 1 / 10

Bandwidth Sharing

USB4 shares bandwidth with M.2_2

Networking

LAN Controller

Realtek 2.5Gb Ethernet

LAN Speed

2.5Gbps

LAN Protection

ASUS LANGuard

Wi-Fi

Wi-Fi 7

Wireless Standard

802.11be

Wi-Fi Configuration

2×2 Wi-Fi 7

Wi-Fi Bands

2.4GHz / 5GHz / 6GHz

Wi-Fi Bandwidth

160MHz

Maximum Transfer Rate

Up to 2.9Gbps

Bluetooth

Bluetooth 5.4

USB Connectivity

Rear USB4

2 × USB Type-C — 40Gbps

Rear USB 10Gbps

1 × USB Type-A

Rear USB 5Gbps

3 × USB Type-A

Rear USB 2.0

4 × USB Type-A

Front USB 20Gbps

1 × USB Type-C Header

Front USB 5Gbps

1 × Header — 2 Ports

Front USB 2.0

2 × Headers — 4 Ports

USB-C Power Delivery

5V / 3A Maximum

Audio

Audio Codec

Realtek 7.1 Surround Sound HD Audio CODEC

Audio Channels

7.1-Channel

Playback

Up to 24-bit / 192kHz

Audio Shielding

Supported

Audio Capacitors

Premium Audio Capacitors

Audio PCB

Dedicated Audio PCB Layers

Display Outputs

HDMI

1 × HDMI 2.1

HDMI Maximum

4K @ 60Hz

USB4 Display Outputs

2 × USB4 Type-C

USB4 Display Standard

DisplayPort 1.4a

USB4 Display Maximum

4K @ 60Hz

Rear I/O

USB4

2 × USB Type-C — 40Gbps

USB 10Gbps

1 × USB Type-A

USB 5Gbps

3 × USB Type-A

USB 2.0

4 × USB Type-A

LAN

1 × 2.5Gb Ethernet

Wireless

Wi-Fi 7 + Bluetooth 5.4

HDMI

1 × HDMI 2.1

Audio

3 × Audio Jacks

BIOS

BIOS FlashBack Button

Internal Connectivity

Main Power

1 × 24-pin ATX

CPU Power

2 × 8-pin +12V

CPU Fan

1 × 4-pin CPU Fan

CPU OPT Fan

1 × 4-pin CPU OPT Fan

AIO Pump

1 × 4-pin AIO Pump

Chassis Fans

4 × 4-pin Chassis Fan

ARGB

3 × Addressable Gen 2 Headers

Front USB-C

1 × USB 20Gbps Header

Front USB 5Gbps

1 × Header — 2 Ports

Front USB 2.0

2 × Headers — 4 Ports

TPM

SPI TPM Header

Clear CMOS

Clear CMOS Header

COM Port

COM Header

Cooling & Thermal Design

VRM Cooling

VRM Heatsinks

Chipset Cooling

Chipset Heatsink

M.2 Cooling

Flexible M.2 Heatsink

CPU Fan

CPU Fan Header

CPU OPT

CPU OPT Fan Header

AIO

AIO Pump Header

Chassis Fans

4 × Chassis Fan Headers

ASUS Features & EZ DIY

PCIe Installation

Q-Release

PCIe Protection

SafeSlot

BIOS Update

BIOS FlashBack

Memory Profile

AEMP

Memory Overclocking

AMD EXPO

RGB

Aura Sync

LAN Protection

ASUS LANGuard

DIY Features

ASUS EZ PC DIY

RGB Lighting

RGB System

ASUS Aura Sync

Addressable RGB

3 × Addressable Gen 2 Headers

RGB Software

Armoury Crate / Aura Sync

BIOS & Software

BIOS

UEFI AMI BIOS

BIOS Update

ASUS EZ Flash / BIOS FlashBack

System Software

Armoury Crate

RGB Software

Aura Sync

Memory Overclocking

AMD EXPO / ASUS AEMP

Operating System

Supported OS

Windows 11 64-bit

Wi-Fi 7 Full Function

Windows 11 24H2 or Later

Windows 10 Wi-Fi

Wi-Fi 6 Only

Physical Specifications

Form Factor

ATX

Dimensions

30.5 × 24.4cm

Dimensions

12 × 9.6 inches

Color

Black

Product Identification

Model

ASUS X870 MAX GAMING WIFI7 W

Chipset

AMD X870

Platform

AMD AM5

Series

MAX GAMING
