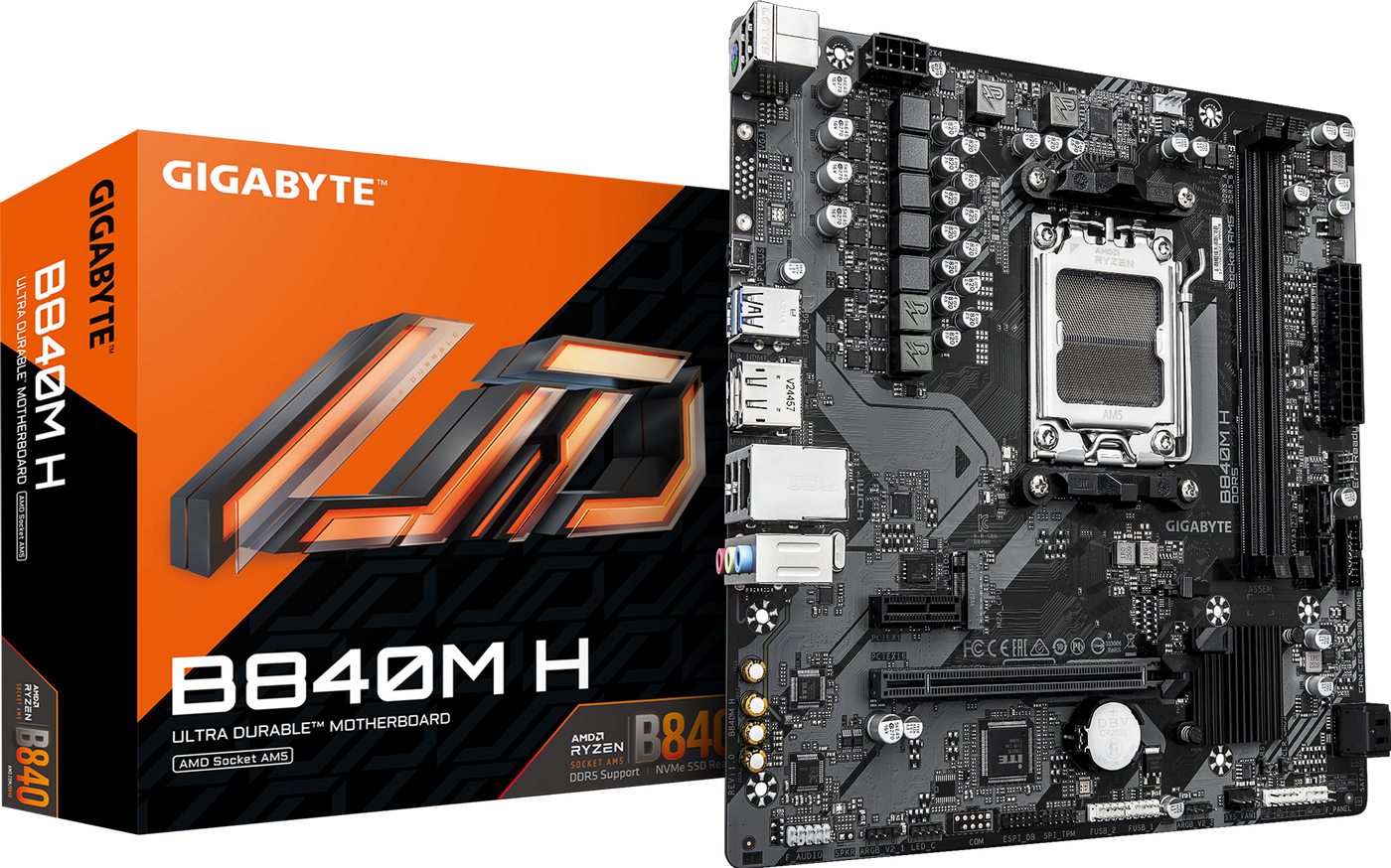

GIGABYTE B840M H M-ATX AM5 Motherboard, AMD B840 Chipset, 2x DDR5 DIMM Slots, 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 M.2 Slot

Gigabyte

GIGABYTE B840M H M-ATX AM5 Motherboard, AMD B840 Chipset, 2x DDR5 DIMM Slots, 128GB Max Memory, 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 M.2 Slot

1 year warranty

  • Availability: In Stock
99.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • B840 SERIES

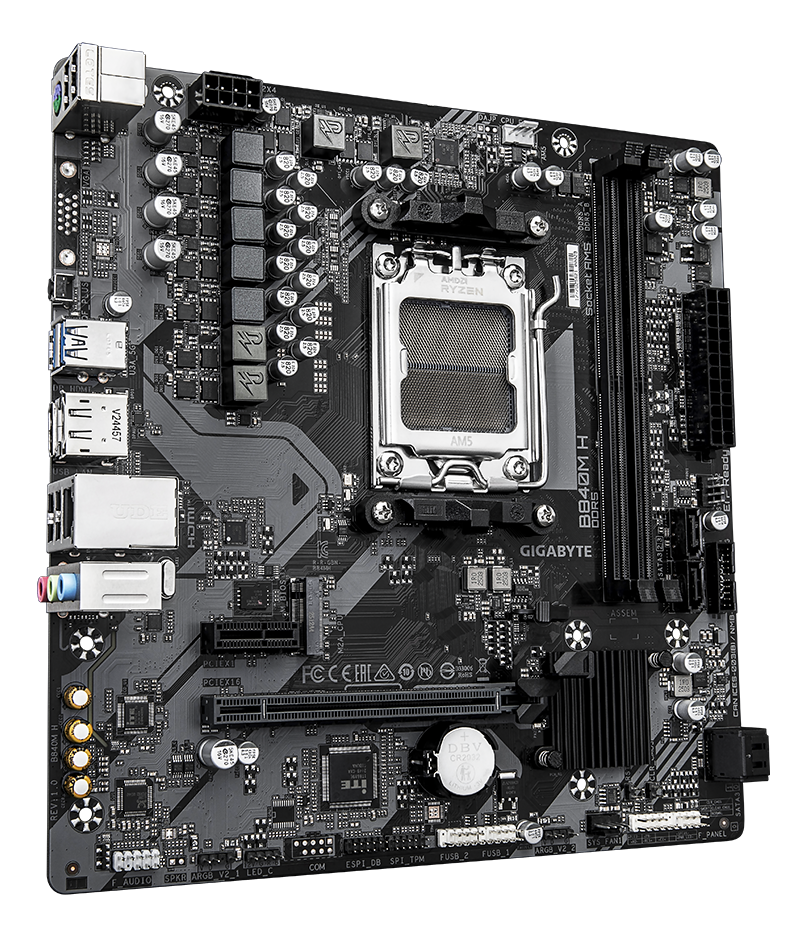

B840M H
AMD B840 • AM5 • DDR5 • micro-ATX
A compact AMD AM5 motherboard built for Ryzen 7000, 8000 and 9000 Series processors, featuring DDR5 memory, PCIe 4.0 graphics connectivity, PCIe 4.0 NVMe storage, Gigabit Ethernet and GIGABYTE's Ultra Durable platform features.
AM5 B840 DDR5 PCIe 4.0 micro-ATX
AM5 CPU SOCKET
128GB MAX MEMORY
DDR5-7200 OC MEMORY
PCIe 4.0 GPU INTERFACE
GIGABYTE B840 PLATFORM

Compact AM5 Performance

The GIGABYTE B840M H provides a solid foundation for modern Ryzen systems with DDR5 memory support, PCIe 4.0 expansion, high-speed M.2 NVMe storage, 1Gb Ethernet and flexible display connectivity.

01

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors for a modern AM5 gaming and productivity platform.

02

PCIe 4.0 & NVMe

Includes a PCIe 4.0 x16 graphics slot and a PCIe 4.0 M.2 connector for high-speed NVMe SSD storage.

03

Ultra Durable Design

Features GIGABYTE Ultra Durable construction, Smart Fan 6, Q-Flash Plus and PCIe EZ-Latch for easier system building.

GIGABYTE B840M H

Essential Features. Modern AM5 Platform.

Designed for compact Ryzen systems with fast DDR5 memory, PCIe 4.0 graphics and storage, Gigabit networking and practical connectivity.

2 DDR5 DIMM SLOTS
1 M.2 PCIe 4.0 SLOT
4 SATA 6Gb/s
1Gb GIGABIT LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD B840
Memory
Memory Type
DDR5
Memory Slots
2 × DDR5 DIMM
Maximum Capacity
128GB
Maximum Capacity Per DIMM
64GB
Memory Architecture
Dual Channel
Maximum Supported Speed
DDR5-7200 (OC)
Supported Speeds
DDR5-4400 to DDR5-7200 (OC)
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
Expansion Slots
Primary PCIe Slot
1 × PCIe 4.0 x16
Primary Slot Source
CPU
Ryzen 9000 / 7000
PCIe 4.0 x16
Ryzen 8000 Phoenix 1
PCIe 4.0 x8
Ryzen 8000 Phoenix 2
PCIe 4.0 x4
Secondary PCIe Slot
1 × PCIe 3.0 x1
PCIEX16 Limitation
Graphics Card or NVMe SSD
Storage
M.2 Slots
1 × M.2 Socket 3
M.2 Key
M Key
M.2 Form Factor
2580 / 2280
M.2 Interface
PCIe 4.0 x4 / x2
M.2 Source
CPU
SATA Ports
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 10
USB Connectivity
Rear USB 3.2 Gen 1
2 × USB Type-A
Rear USB 2.0 / 1.1
4 × USB Type-A
Internal USB 3.2 Gen 1
2 Ports via Header
Internal USB 2.0 / 1.1
4 Ports via Headers
Networking
LAN Controller
Realtek GbE LAN
Network Speed
10 / 100 / 1000 Mbps
Audio
Audio Codec
Realtek High Definition Audio
Audio Channels
2 / 4 / 5.1 / 7.1 Channel
Audio Design
High-End Audio Capacitors
Display Outputs
DisplayPort
1 × DisplayPort 1.4
DisplayPort Resolution
Up to 3840 × 2160 @ 144Hz
HDMI
1 × HDMI 2.1
HDMI Resolution
Up to 4096 × 2160 @ 60Hz
HDCP
HDCP 2.3
Rear I/O
USB
2 × USB 3.2 Gen 1 + 4 × USB 2.0
Keyboard / Mouse
1 × PS/2
Video
1 × DisplayPort + 1 × HDMI
LAN
1 × RJ-45 Gigabit Ethernet
Audio
3 × Audio Jacks
BIOS Update
Q-Flash Plus Button
Internal Connectivity
ATX Main Power
1 × 24-pin
CPU Power
1 × 8-pin ATX 12V
CPU Fan Header
1 × CPU Fan Header
System Fan Headers
2 × System Fan Headers
ARGB Headers
2 × Addressable RGB Gen2
RGB Header
1 × RGB LED Header
USB 3.2 Gen 1 Header
1 × Header
USB 2.0 Headers
2 × Headers
TPM
1 × TPM Header
Cooling & Monitoring
Fan Control
Smart Fan 6
Total Fan Headers
3 × PWM/DC Headers
Fan Curve
Dual Fan Curve Mode
Temperature Detection
Supported
Fan Speed Detection
Supported
Water Cooling Flow Detection
Supported
GIGABYTE Features
BIOS Update
Q-Flash Plus
Software
GIGABYTE Control Center
Gaming Feature
X3D Turbo Mode
Expansion Design
PCIe EZ-Latch
Diagnostics
EZ-Debug Zone / Debug LEDs
Lighting
RGB FUSION
BIOS & Software
BIOS
AMI UEFI BIOS
BIOS ROM
256 Mbit Flash ROM
BIOS Features
Q-Flash / Q-Flash Plus
Management Software
GIGABYTE Control Center
Operating System
Supported OS
Windows 11 64-bit / Windows 10 64-bit
Physical Specifications
Form Factor
Micro ATX
Dimensions
23.0 × 22.5cm
Dimensions
9.06 × 8.86 inches
Product Identification
Model
GIGABYTE B840M H
Chipset
AMD B840
Platform
AMD AM5
GIGABYTE B840M H AMD B840 • AM5 • DDR5 • PCIe 4.0 • M.2 • micro-ATX
