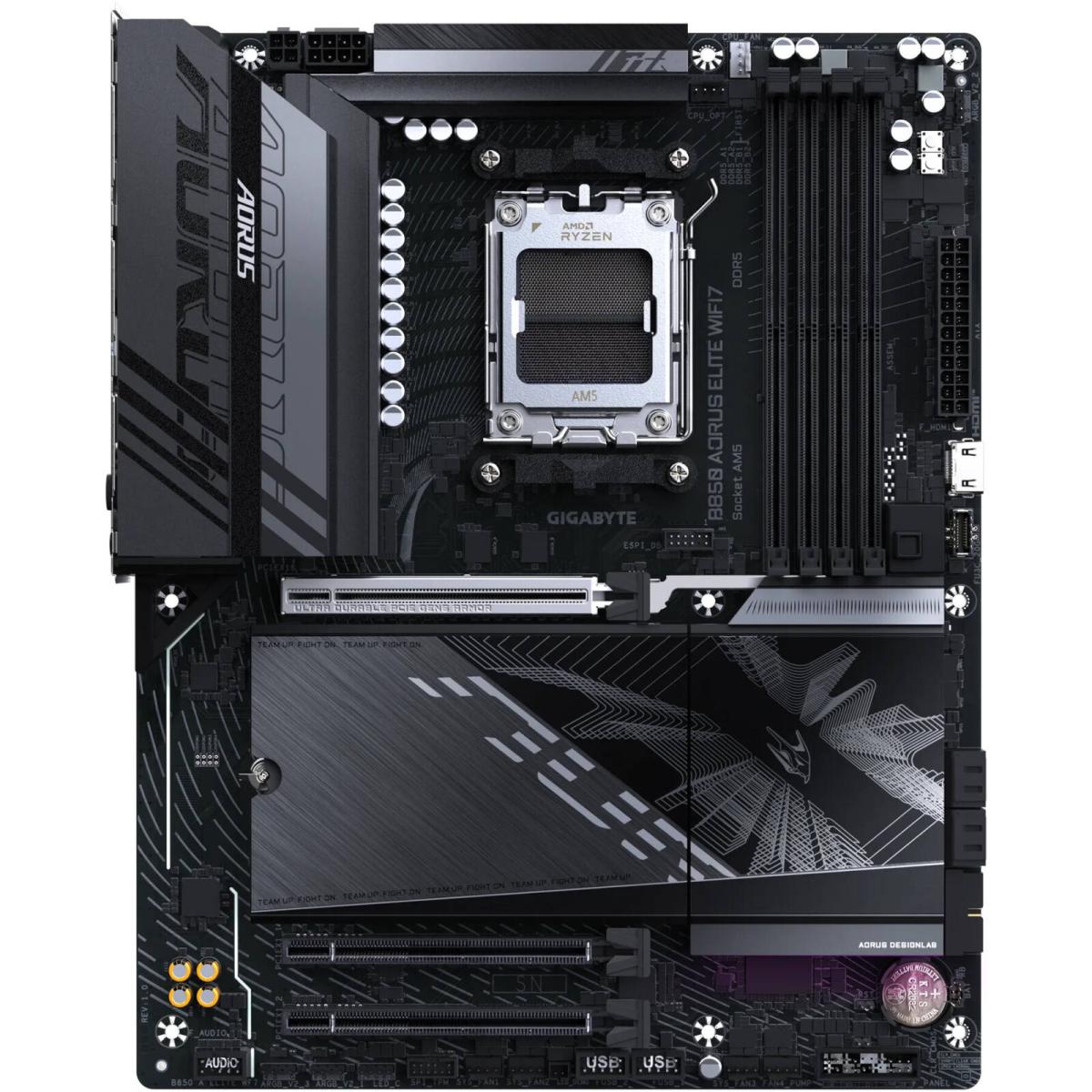

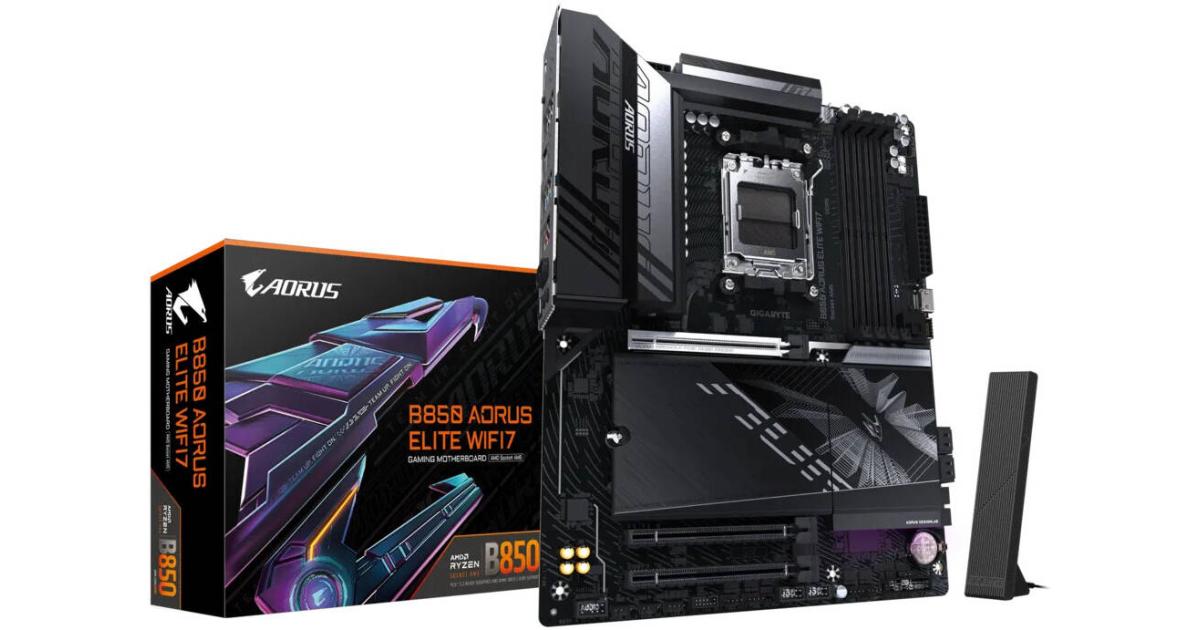

New
GIGABYTE B850 AORUS ELITE WIFI7 AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, WiFi & BT Connectivity, 1 x PCIe 5.0 x16, 3 x M.2 Slots

Gigabyte

GIGABYTE B850 AORUS ELITE WIFI7 AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, WiFi & BT Connectivity, 1 x PCIe 5.0 x16, 3 x M.2 Slots

1 year warranty

  • Availability: In Stock
209.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • AORUS GAMING
B850 AORUS ELITE WIFI7
AMD B850 • AM5 • DDR5 • ATX • Wi-Fi 7
A high-performance AMD AM5 motherboard designed for Ryzen 9000, 8000 and 7000 Series processors, featuring DDR5 memory, PCIe 5.0 graphics, triple M.2 NVMe storage, 2.5GbE LAN, Wi-Fi 7 and Bluetooth 5.4 connectivity.
AM5 B850 DDR5 PCIe 5.0 Wi-Fi 7
AM5 CPU SOCKET
256GB MAX MEMORY
3× M.2 NVMe
Wi-Fi 7 WIRELESS
AORUS B850 PLATFORM

Built for Next-Generation Ryzen Performance

The B850 AORUS ELITE WIFI7 combines the AMD B850 platform with high-speed DDR5 memory, PCIe 5.0 graphics and storage, triple M.2 connectivity, 2.5GbE networking and next-generation Wi-Fi 7 wireless connectivity.

01

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors on the latest AM5 platform.

02

PCIe 5.0 & Triple M.2

Includes a PCIe 5.0 x16 graphics slot and three M.2 connectors for high-speed NVMe storage.

03

Wi-Fi 7 Connectivity

Built-in Wi-Fi 7 with 2.4GHz, 5GHz and 6GHz support, plus Bluetooth 5.4 and 2.5GbE wired networking.

AORUS ELITE

Fast. Powerful. Ready for Modern Gaming.

From PCIe 5.0 and DDR5 to triple M.2 storage and Wi-Fi 7, the B850 AORUS ELITE WIFI7 delivers a modern foundation for powerful gaming and enthusiast systems.

4 DDR5 DIMM SLOTS
3 M.2 SLOTS
5.0 PCIe x16
2.5Gb LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD B850
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Maximum Capacity Per DIMM
64GB
Memory Architecture
Dual Channel
Base Supported Speed
DDR5-5200 / 4800 / 4400 MT/s
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
Supported Modules
1Rx8 / 2Rx8 / 1Rx16
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot Source
CPU
Ryzen 9000 / 7000
PCIe 5.0 x16
Ryzen 8000 Phoenix 1
PCIe 4.0 x8
Ryzen 8000 Phoenix 2
PCIe 4.0 x4
Additional Expansion
2 × PCIe 3.0 x1
PCIe Design
PCIe EZ-Latch Plus
Storage
M.2 Slots
3 × M.2
M2A_CPU
PCIe 5.0 x4/x2
M2B_CPU
PCIe 4.0 x4/x2
M2C_SB
PCIe 4.0 x4/x2
M.2 Form Factor
25110 / 22110 / 2580 / 2280
M.2 Key
M Key
SATA
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 10
RAID 5
Supported with Ryzen 9000 Series
USB Connectivity
Rear USB Type-C
1 × USB 3.2 Gen 2
Rear USB 10Gbps Type-A
2 × USB 3.2 Gen 2
Rear USB 5Gbps
5 × USB 3.2 Gen 1
Rear USB 2.0
4 × USB 2.0 / 1.1
Front USB-C
USB 3.2 Gen 2x2 — 20Gbps
Internal USB 3.2 Gen 1
2 Ports
Internal USB 2.0
4 Ports
Networking
LAN Controller
Realtek 2.5GbE LAN
LAN Speed
2.5Gbps / 1Gbps / 100Mbps
Wi-Fi
Realtek Wi-Fi 7 RTL8922AE
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wireless Standard
802.11a/b/g/n/ac/ax/be
Wi-Fi Channel
11be 160MHz
Bluetooth
Bluetooth 5.4
Audio
Audio Codec
Realtek Audio CODEC
Audio
High Definition Audio
Channels
2 / 4 / 5.1 / 7.1 Channel
Digital Audio
S/PDIF Out
Display Outputs
DisplayPort
1 × DisplayPort 1.4
DisplayPort Maximum
3840 × 2160 @ 144Hz
DisplayPort Features
HDR
Front HDMI
1 × HDMI 1.4
Front HDMI Maximum
1920 × 1080 @ 30Hz

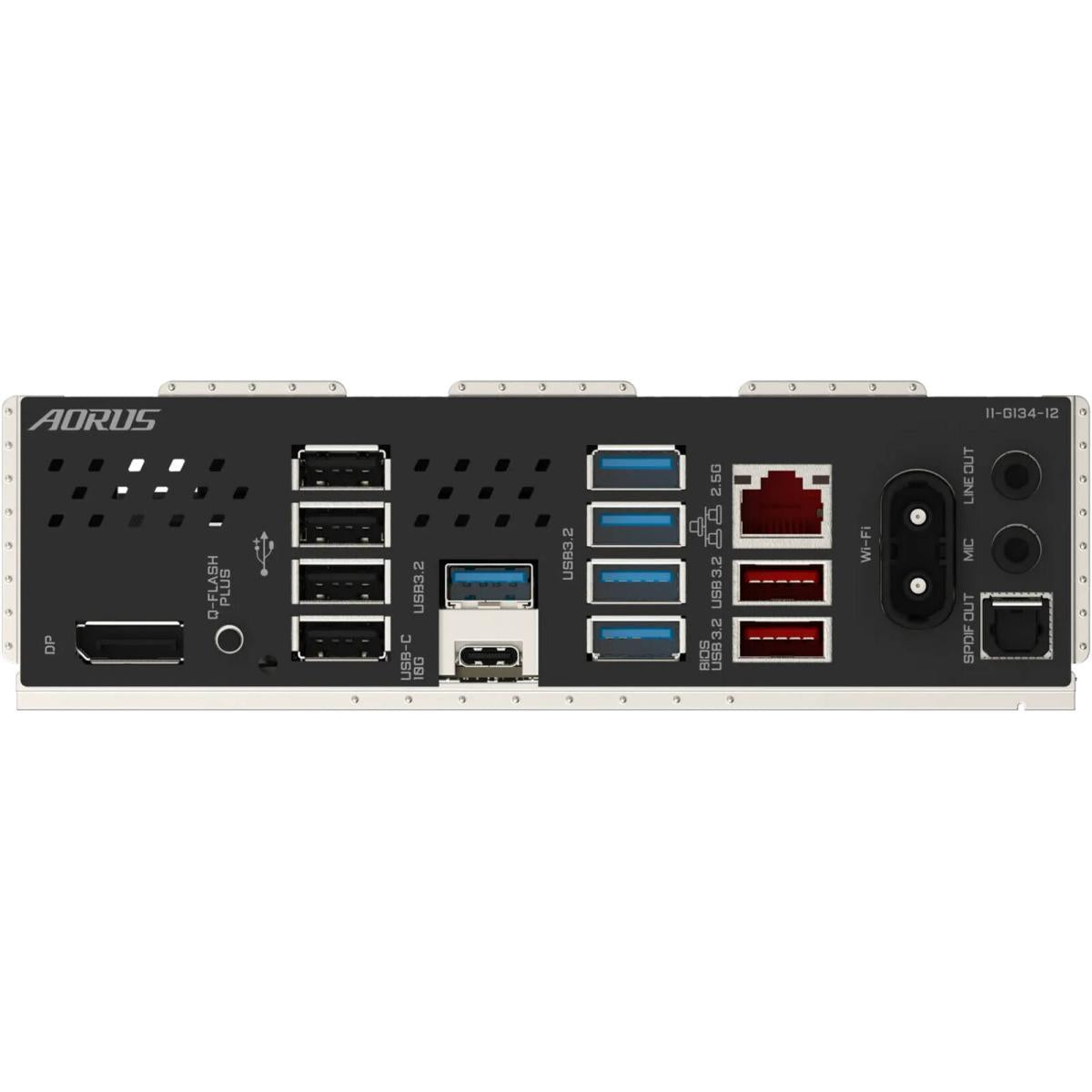

Rear I/O
USB Type-C
1 × USB 3.2 Gen 2
USB 10Gbps Type-A
2 ×
USB 5Gbps
5 ×
USB 2.0
4 ×
LAN
1 × RJ-45 2.5GbE
Wireless
Wi-Fi 7 + Bluetooth 5.4
Display
1 × DisplayPort
Audio
HD Audio + S/PDIF
Internal Connectivity
Main Power
1 × 24-pin ATX
CPU Power
1 × 8-pin + 1 × 4-pin ATX 12V
CPU Fan
1 × CPU Fan Header
CPU / Pump
1 × CPU Fan / Water Pump Header
System Fans
3 × System Fan Headers
System Fan / Pump
1 × System Fan / Water Pump Header
ARGB
3 × Addressable RGB Gen2
RGB
1 × RGB LED Header
USB-C Header
USB 3.2 Gen 2x2
USB 3.2 Gen 1 Header
1 × Header
USB 2.0 Headers
2 × Headers
TPM
1 × TPM Header
Cooling & Monitoring
Cooling System
Advanced Thermal Design
M.2 Cooling
M.2 Thermal Guard
Fan Control
Smart Fan 6
Fan Headers
6 × PWM/DC Fan Headers
Temperature Detection
Supported
Fan Speed Detection
Supported
Water Cooling Flow Detection
Supported
GIGABYTE Features
PCIe Installation
EZ-Latch Plus
M.2 Installation
EZ-Latch Plus / EZ-Latch Click
BIOS Update
Q-Flash Plus
Software
GIGABYTE Control Center
Lighting
RGB FUSION
Fan Control
Smart Fan 6
Debug
EZ-Debug Zone
BIOS & Software
BIOS
AMI UEFI BIOS
BIOS ROM
256 Mbit Flash ROM
BIOS Update
Q-Flash / Q-Flash Plus
Software
GIGABYTE Control Center
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Requirement
Windows 11 SV3
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Product Identification
Model
GIGABYTE B850 AORUS ELITE WIFI7
Chipset
AMD B850
Platform
AMD AM5
Form Factor
ATX
GIGABYTE B850 AORUS ELITE WIFI7 AMD B850 • AM5 • DDR5 • PCIe 5.0 • Wi-Fi 7 • 2.5GbE • ATX
