New

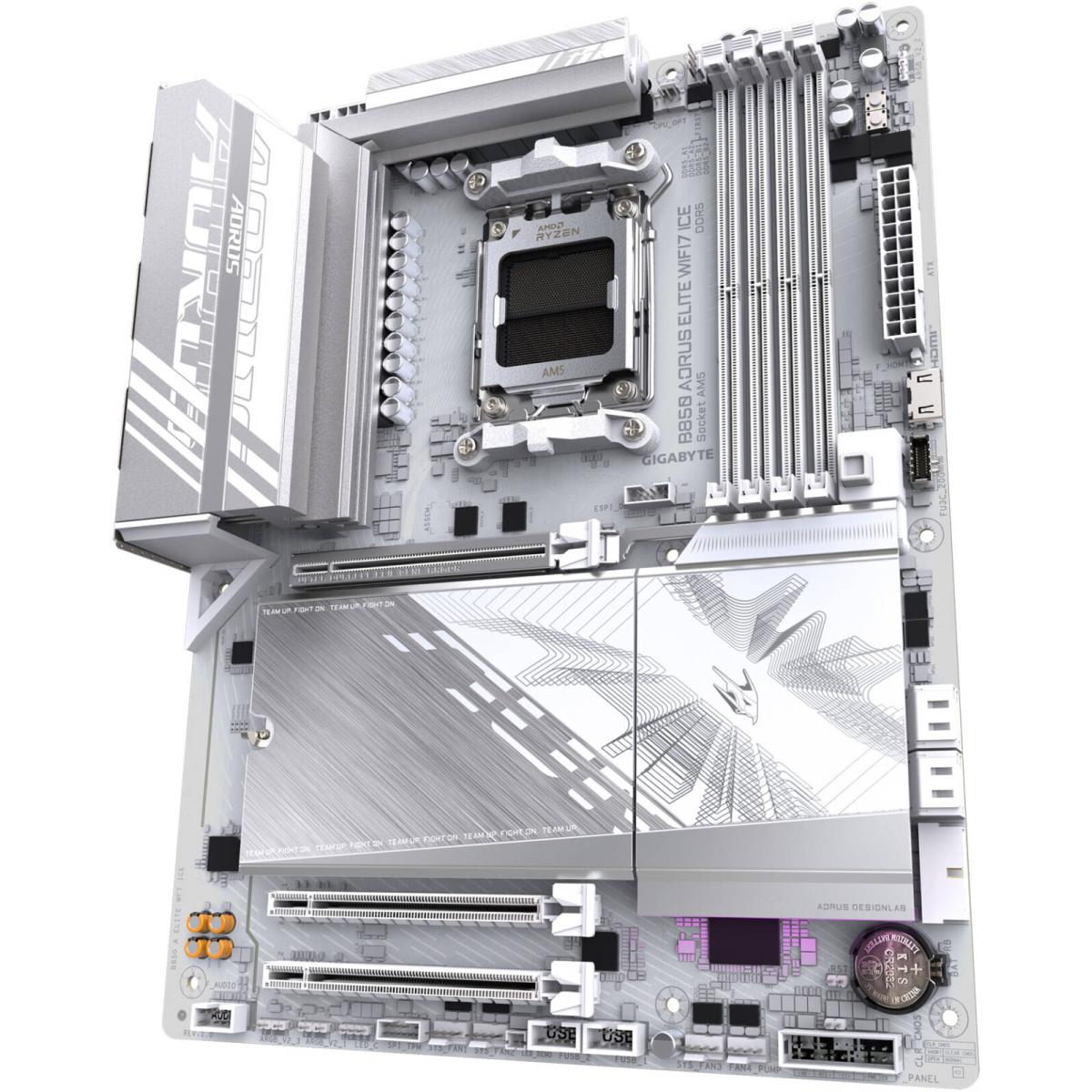

GIGABYTE B850 Aorus Elite WIFI7 ICE AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, WiFi & BT, White

Gigabyte

GIGABYTE B850 Aorus Elite WIFI7 ICE AM5 ATX Motherboard, AMD B850 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16, 3x M.2 Slots, WiFi & BT, White

1 year warranty

  • Availability: In Stock
219.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • AORUS ELITE ICE
B850 AORUS ELITE WIFI7 ICE
AMD B850 • AM5 • DDR5 • ATX • Wi-Fi 7 • WHITE
A premium white AMD AM5 motherboard engineered for next-generation Ryzen processors, combining high-speed DDR5 memory, PCIe 5.0 graphics, triple M.2 NVMe storage, advanced VRM cooling, Wi-Fi 7 and 2.5GbE networking in a striking white AORUS ICE design.
AM5 B850 DDR5 PCIe 5.0 Wi-Fi 7 ICE WHITE
AM5 CPU SOCKET
256GB MAX DDR5
3× M.2 NVMe
Wi-Fi 7 WIRELESS
AORUS B850 ICE PLATFORM

White Performance. Next-Generation Connectivity.

The B850 AORUS ELITE WIFI7 ICE combines the AMD B850 platform with DDR5 memory support up to 8200 MT/s overclocked, a PCIe 5.0 x16 graphics interface, three M.2 NVMe slots, Wi-Fi 7, 2.5GbE networking and an advanced white thermal design.

01

14+2+2 Digital VRM

A digital 14+2+2 phase VRM design with 60A DrMOS, premium chokes and capacitors provides stable power delivery for demanding Ryzen processors.

02

PCIe 5.0 & Triple M.2

Includes a PCIe 5.0 x16 graphics slot and three M.2 connectors with one PCIe 5.0 x4 and two PCIe 4.0 interfaces.

03

Wi-Fi 7 & 2.5GbE

Experience next-generation wireless connectivity with Wi-Fi 7, Bluetooth 5.4 and fast 2.5GbE wired networking.

AORUS ELITE ICE

Built for High-End White Gaming Builds

Designed around performance, cooling and easy installation, the ICE edition combines a clean white aesthetic with PCIe 5.0, DDR5, Wi-Fi 7 and advanced thermal hardware.

4 DDR5 DIMM SLOTS
8200+ DDR5 MT/s OC
5.0 PCIe x16
2.5Gb LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD B850
VRM Design
14+2+2 Twin Digital VRM
VCORE
14 Phases DrMOS 60A
SOC
2 Phases DrMOS 60A
MISC
2 Phases
PCB
6-Layer Mid-Loss PCB
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Maximum Capacity Per DIMM
64GB
Architecture
Dual Channel
Maximum OC Speed
DDR5-8200 MT/s
Supported Speeds
DDR5-8200 / 8000 / 7950 / 7900 / 7800 / 7600+
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
Supported Modules
1Rx8 / 2Rx8 / 1Rx16
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot Source
CPU
Ryzen 9000 / 7000
PCIe 5.0 x16
Ryzen 8000 Phoenix 1
PCIe 4.0 x8
Ryzen 8000 Phoenix 2
PCIe 4.0 x4
Additional Expansion
2 × PCIe 3.0 x1
Graphics Slot
PCIe UD Slot with EZ-Latch Plus
Storage
M.2 Slots
3 × M.2 Socket 3
M2A_CPU
PCIe 5.0 x4/x2
M2B_CPU
PCIe 4.0 x4/x2
M2C_SB
PCIe 4.0 x4/x2
Supported M.2 Sizes
25110 / 22110 / 2580 / 2280
M.2 Key
M Key
M.2 Cooling
M.2 Thermal Guard Ext.
SATA
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 10
RAID 5
Supported with Ryzen 9000 Series
USB Connectivity
Rear USB Type-C
1 × USB 3.2 Gen 2
Rear USB 10Gbps Type-A
2 × USB 3.2 Gen 2
Rear USB 5Gbps
5 × USB 3.2 Gen 1
Rear USB 2.0
4 × USB 2.0 / 1.1
Front USB-C
USB 3.2 Gen 2x2 — 20Gbps
Internal USB 3.2 Gen 1
1 × Header
Internal USB 2.0
2 × Headers
Networking
LAN Controller
Realtek 2.5GbE LAN
LAN Speed
2.5Gbps / 1Gbps / 100Mbps
Wi-Fi
Realtek Wi-Fi 7 RTL8922AE
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wireless Standard
802.11a/b/g/n/ac/ax/be
Wi-Fi Channel
11be 160MHz
Bluetooth
Bluetooth 5.4
Antenna
Directional Ultra-High Gain Antenna
Audio
Audio Codec
Realtek Audio CODEC
Audio Channels
2 / 4 / 5.1 / 7.1 Channel
Audio Design
High-End Audio Capacitors
Digital Audio
S/PDIF Optical Output
Display Outputs
DisplayPort
1 × DisplayPort 1.4
DisplayPort Maximum
3840 × 2160 @ 144Hz
DisplayPort Features
HDR
Front HDMI
1 × HDMI 1.4
Front HDMI Maximum
1920 × 1080 @ 30Hz

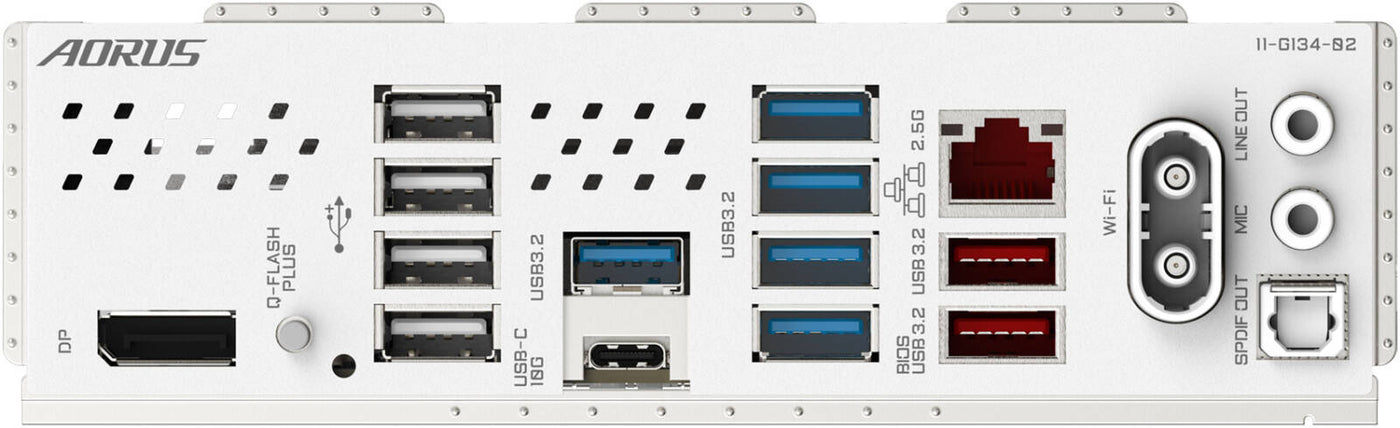

Rear I/O
USB Type-C
1 × USB 3.2 Gen 2
USB 10Gbps Type-A
2 ×
USB 5Gbps
5 ×
USB 2.0
4 ×
LAN
1 × RJ-45 2.5GbE
Wireless
Wi-Fi 7 + Bluetooth 5.4
Display
1 × DisplayPort 1.4
Audio
2 × Audio Jacks + S/PDIF
BIOS
Q-Flash Plus Button
Internal Connectivity
Main Power
1 × 24-pin ATX
CPU Power
1 × 8-pin + 1 × 4-pin ATX 12V
CPU Fan
1 × CPU Fan Header
CPU / Pump
1 × CPU Fan / Water Cooling Pump Header
System Fans
3 × System Fan Headers
System Fan / Pump
1 × System Fan / Water Pump Header
ARGB
3 × Addressable RGB Gen2 Headers
RGB
1 × RGB LED Header
USB-C Header
USB 3.2 Gen 2x2 — 20Gbps
USB 3.2 Gen 1
1 × Header
USB 2.0
2 × Headers
TPM
1 × TPM Header
Power Button
Onboard Power Button
Reset Button
Onboard Reset Button
Clear CMOS
Clear CMOS Jumper
Cooling & Thermal Design
VRM Cooling
VRM Thermal Armor Advanced
VRM Heatpipe
Superior Heatpipe
Thermal Pad
5 W/mK Thermal Pad
M.2 Cooling
M.2 Thermal Guard Ext.
Fan Control
Smart Fan 6
Fan Headers
6 × PWM/DC Headers
Temperature Detection
Supported
Fan Speed Detection
Supported
Water Flow Detection
Supported
AORUS DIY Features
PCIe Installation
PCIe EZ-Latch Plus
M.2 Installation
M.2 EZ-Latch Plus / EZ-Latch Click
Wi-Fi Installation
WIFI EZ-Plug
Graphics Slot
PCIe UD Slot
Debug
EZ-Debug Zone
BIOS Update
Q-Flash Plus
RGB
RGB FUSION
Sensor Panel
Sensor Panel Link
BIOS & Software
BIOS
AMI UEFI BIOS
BIOS ROM
256 Mbit Flash ROM
BIOS Update
Q-Flash / Q-Flash Plus
Software
GIGABYTE Control Center
Lighting
RGB FUSION
Backup
Smart Backup
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Requirement
Windows 11 SV3
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Color
ICE White
Product Identification
Model
GIGABYTE B850 AORUS ELITE WIFI7 ICE
Model Code
B850 A ELITE WF7 ICE
Chipset
AMD B850
Platform
AMD AM5
Form Factor
ATX
GIGABYTE B850 AORUS ELITE WIFI7 ICE AMD B850 • AM5 • DDR5 • PCIe 5.0 • Wi-Fi 7 • 2.5GbE • ATX • ICE WHITE
