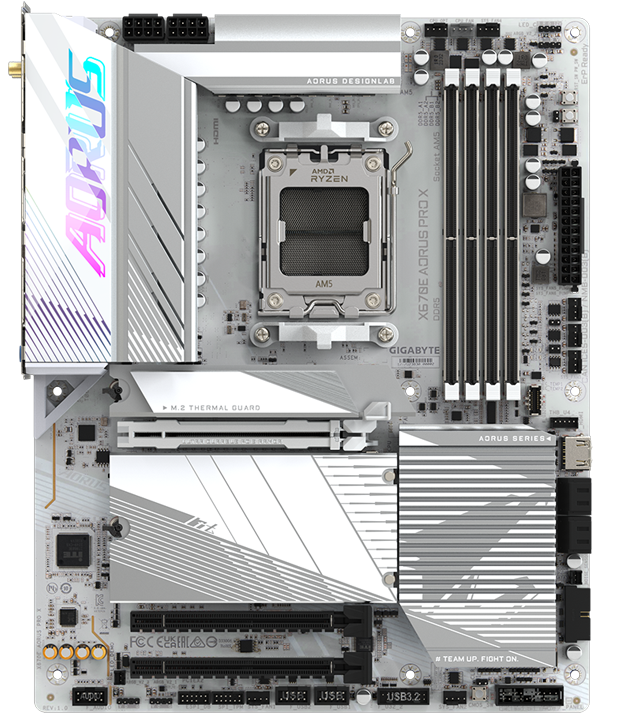

GIGABYTE X670E Aorus Pro X AM5 ATX Motherboard, AMD X670 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.3, 1x PCIe 5.0 x16, 4x M.2 Slots, White

Gigabyte

GIGABYTE X670E Aorus Pro X AM5 ATX Motherboard, AMD X670 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, Wi-Fi 7 & BT 5.3, 1x PCIe 5.0 x16, 4x M.2 Slots, White

1 year warranty

  • Availability: In Stock
299.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • AORUS
X670E AORUS PRO X
AMD X670 • AM5 • DDR5 • ATX • Wi-Fi 7
A premium AMD AM5 gaming motherboard designed for Ryzen 7000, 8000 and 9000 Series processors, featuring high-speed DDR5 memory, PCIe 5.0 graphics, four M.2 slots including dual PCIe 5.0 storage interfaces, Wi-Fi 7 and 2.5GbE LAN.
AM5 X670 DDR5 PCIe 5.0 Wi-Fi 7 2.5GbE
AM5 CPU SOCKET
256GB MAX DDR5
4× M.2 SLOTS
Wi-Fi 7 WIRELESS
AORUS PERFORMANCE PLATFORM

Premium Gaming Performance. Next-Generation Storage.

The X670E AORUS PRO X combines a powerful AM5 platform with dual-channel DDR5, PCIe 5.0 graphics, four M.2 slots, 2.5GbE networking and Wi-Fi 7 connectivity for demanding gaming and high-performance PC builds.

01

16+2+2 Digital VRM

A digital twin 16+2+2 phase VRM solution with premium chokes, capacitors and an 8-layer low-loss PCB provides stable power delivery for AMD Ryzen processors.

02

Dual Gen5 M.2

Four M.2 connectors provide extensive NVMe expansion, including two PCIe 5.0 x4 interfaces and two PCIe 4.0 x4 interfaces.

03

Wi-Fi 7 & 2.5GbE

High-speed connectivity combines Wi-Fi 7 with 320MHz wireless support, Bluetooth 5.3 and Intel 2.5GbE LAN.

AORUS PRO X

Engineered for High-Performance AMD Builds

With DDR5-8000+ overclocking, PCIe 5.0 graphics, dual PCIe 5.0 M.2 storage, advanced thermal design and Wi-Fi 7, the AORUS PRO X provides a powerful platform for modern gaming systems.

4 DDR5 DIMM SLOTS
8000+ DDR5 MT/s OC
2× GEN5 M.2
2.5Gb LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 7000 / 8000 / 9000 Series
Chipset
AMD X670
VRM Design
16+2+2 Digital Twin VRM
PCB
8-Layer Low-Loss PCB
PCB Copper
2X Copper PCB
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Maximum Capacity per DIMM
64GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-8000+ MT/s
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
Supported DIMM
1Rx8 / 2Rx8 / 1Rx16
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot
PCIe UD Slot X
Secondary Slot
1 × PCIe 3.0 x4
Additional Slot
1 × PCIe 3.0 x2
Ryzen 7000 / 9000
PCIe 5.0 x16
Ryzen 8000 Phoenix 1
PCIe 4.0 x8
Ryzen 8000 Phoenix 2
PCIe 4.0 x4
Storage
M.2 Slots
4 × M.2
M.2 A_CPU
PCIe 5.0 x4/x2
M.2 B_CPU
PCIe 5.0 x4/x2
M.2 C_SB
PCIe 4.0 x4/x2
M.2 D_SB
PCIe 4.0 x4/x2
M.2 A_CPU Sizes
25110 / 22110 / 2580 / 2280
M.2 B_CPU Sizes
22110 / 2280
Chipset M.2 Sizes
22110 / 2280
SATA
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 10
SATA RAID
RAID 0 / 1 / 10
Networking
LAN Controller
Intel 2.5GbE LAN
LAN Speed
2.5Gbps / 1Gbps / 100Mbps
Wi-Fi
Wi-Fi 7
Wi-Fi Module
Qualcomm QCNCM865 / MediaTek MT7927
Wireless Standard
802.11a/b/g/n/ac/ax/be
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wi-Fi Channel Width
Up to 320MHz
Bluetooth
Bluetooth 5.3
Wireless Antenna
2T2R
USB Connectivity
USB 3.2 Gen 2x2
2 × USB Type-C
Rear USB Gen 2 Type-A
3 ×
Rear USB Gen 2 Type-A
1 × CPU Dedicated
Rear USB Gen 1
4 ×
Rear USB 2.0
4 ×
Internal USB-C
1 × USB 3.2 Gen 2x2
Internal USB Gen 1
2 × Headers
Internal USB 2.0
2 × Headers
Audio
Audio Codec
Realtek High Definition Audio CODEC
Audio Channels
2 / 4 / 5.1 / 7.1-Channel
Audio Design
8-Channel HD Audio
Audio Capacitors
Audiophile Grade Capacitors
Audio PCB
High-Definition Audio Design
Display Outputs
Rear HDMI
1 × HDMI 2.1
Rear HDMI Maximum
4096 × 2160 @ 60Hz
Front HDMI
1 × HDMI 1.4
Front HDMI Maximum
1920 × 1080 @ 30Hz

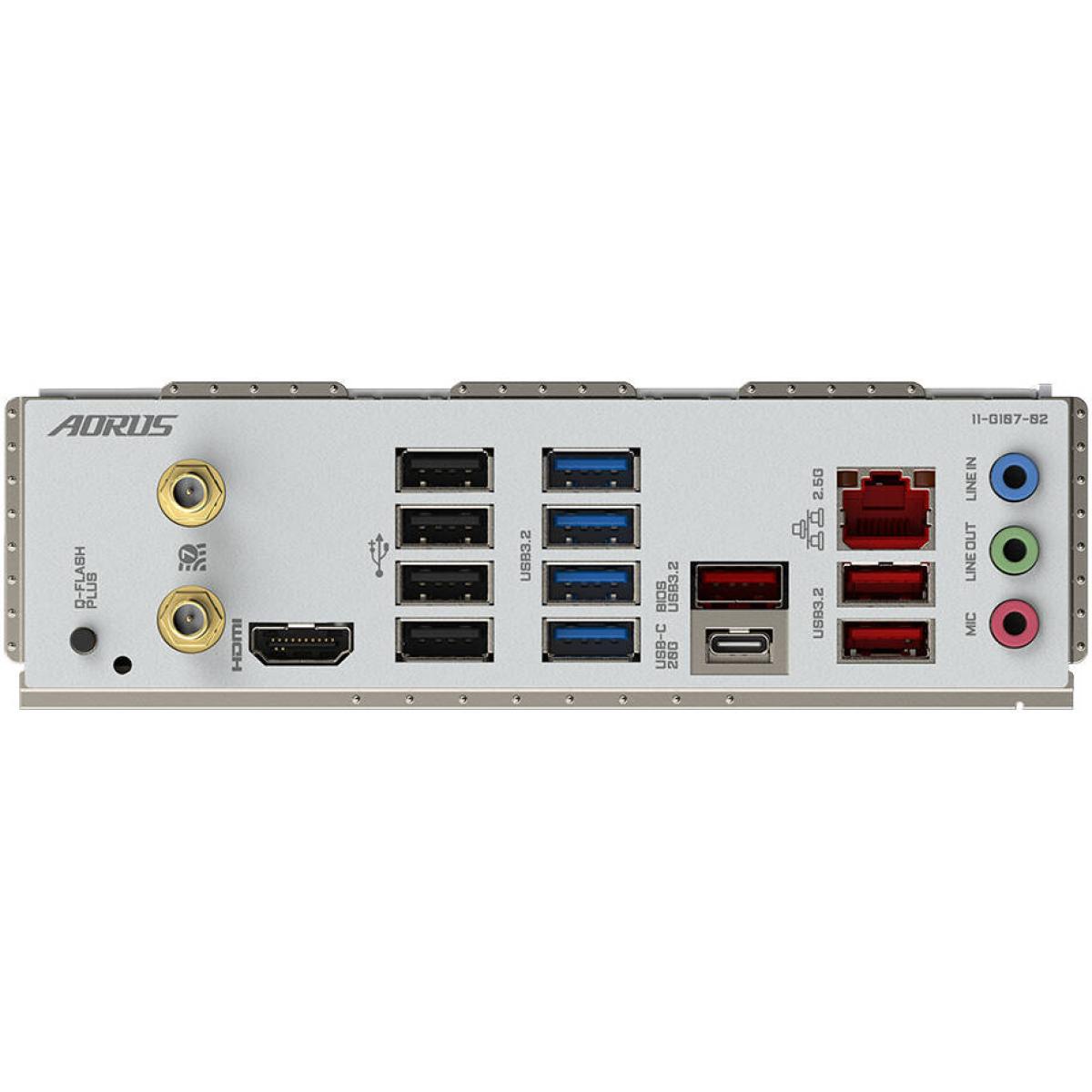

Rear I/O
Q-Flash Plus
1 × Button
Wireless Antenna
2 × SMA Connectors
HDMI
1 × HDMI
USB Gen 1
4 × USB Type-A
USB 2.0
4 × USB Type-A
USB Gen 2
3 × USB Type-A
USB Gen 2x2
1 × USB Type-C
LAN
1 × RJ-45 2.5GbE
Audio
3 × Audio Jacks
Internal Connectivity
Main Power
1 × 24-pin ATX
CPU Power
2 × 8-pin ATX 12V
CPU Fan
1 × CPU Fan Header
CPU Pump
1 × CPU Fan / Water Cooling Pump Header
System Fans
4 × System Fan Headers
System Fan / Pump
2 × Headers
ARGB
3 × Addressable RGB Gen2
RGB
1 × RGB LED Header
Temperature Sensors
2 × Headers
Noise Detection
1 × Header
Front USB-C
1 × USB 3.2 Gen 2x2 Header
Thunderbolt
1 × THB_U4 Add-in Card Connector
Cooling & Thermal Design
VRM Cooling
VRM Thermal Armor Advanced
VRM Heatpipe
8mm Heatpipe
VRM Thermal Pad
7 W/mK Thermal Pad
M.2 Cooling
M.2 Thermal Guard XL
M.2 Installation
EZ-Latch Plus
Fan Control
Smart Fan 6
Temperature Monitoring
Multiple Temperature Sensors
AORUS Features & EZ DIY
PCIe Design
PCIe UD Slot X
M.2 Installation
EZ-Latch Plus
M.2 Heatsinks
EZ-Latch Click
BIOS Update
Q-Flash Plus
BIOS Interface
UC BIOS
Software
GIGABYTE Control Center
Smart Backup
Supported
RGB Lighting
RGB System
GIGABYTE RGB Fusion
Addressable RGB
3 × Addressable RGB Gen2 Headers
RGB Header
1 × RGB LED Header
Lighting Control
GIGABYTE Control Center
BIOS & Software
BIOS
256 Mbit Flash
BIOS Type
AMI UEFI BIOS
BIOS Update
Q-Flash / Q-Flash Plus
System Software
GIGABYTE Control Center
Backup
Smart Backup
Memory Profiles
AMD EXPO / Intel XMP
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Requirement
Windows 11 SV3
Windows 10 Wi-Fi 7
Not Supported
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Color
White / Silver
Product Identification
Model
GIGABYTE X670E AORUS PRO X
Chipset
AMD X670
Platform
AMD AM5
Series
AORUS PRO X
Form Factor
ATX
Color
White / Silver
GIGABYTE X670E AORUS PRO X AMD X670 • AM5 • DDR5 • PCIe 5.0 • 4× M.2 • Wi-Fi 7 • 2.5GbE • ATX • WHITE
