GIGABYTE X870 EAGLE WIFI 7 AMD Socket AM5, Dual Channel DDR5, AMD X870 Chipset, DDR5 Up to 256GB Memory, EZ-Latch Plus, 3 x M.2 Slots

Gigabyte

GIGABYTE X870 EAGLE WIFI 7 AMD Socket AM5, Dual Channel DDR5, AMD X870 Chipset, DDR5 Up to 256GB Memory, EZ-Latch Plus, 3 x M.2 Slots

1 year warranty

  • Availability: In Stock
199.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • X870 EAGLE SERIES
X870 EAGLE WIFI7
AMD X870 • AM5 • DDR5 • ATX • Wi-Fi 7
A powerful AMD AM5 motherboard engineered for Ryzen 9000, 8000 and 7000 Series processors, featuring high-speed DDR5, PCIe 5.0 graphics, three M.2 NVMe slots, USB4, 2.5GbE LAN and next-generation Wi-Fi 7 connectivity.
AM5 X870 DDR5 PCIe 5.0 Wi-Fi 7
AM5 CPU SOCKET
256GB MAX MEMORY
DDR5-8200 OC MEMORY
Wi-Fi 7 WIRELESS
GIGABYTE X870 PLATFORM

Built for Next-Generation Ryzen Systems

The X870 EAGLE WIFI7 combines the AMD X870 platform with DDR5 memory, PCIe 5.0 graphics and storage, USB4 connectivity, 2.5GbE networking and Wi-Fi 7. Its ATX layout provides excellent expansion, cooling and storage flexibility.

01

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000 and 7000 Series processors with a robust 14+2+2 phase digital VRM solution.

02

PCIe 5.0 & Triple M.2

Features a PCIe 5.0 x16 graphics slot plus three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 slots.

03

Wi-Fi 7 & USB4

Next-generation wireless connectivity is combined with dual USB4 Type-C ports supporting up to 40Gbps.

GIGABYTE EAGLE

Fast. Flexible. Ready for the Future.

From PCIe 5.0 and DDR5 to USB4, Wi-Fi 7 and 2.5GbE networking, the X870 EAGLE WIFI7 delivers the connectivity and expansion required for high-performance gaming and workstation builds.

4 DDR5 DIMM SLOTS
3 M.2 NVMe SLOTS
40Gbps USB4
2.5Gb LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870
VRM Design
14+2+2 Phase Digital VRM
PCB
6-Layer PCB
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Maximum Capacity Per DIMM
64GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-8200 MT/s
Supported OC Speeds
DDR5-5600 to DDR5-8200+
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
Supported Modules
1Rx8 / 2Rx8 / 1Rx16
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot Source
CPU
Ryzen 9000 / 7000
PCIe 5.0 x16
Ryzen 8000 Phoenix 1
PCIe 4.0 x8
Ryzen 8000 Phoenix 2
PCIe 4.0 x4
Secondary Slots
2 × PCIe 3.0 x1
PCIe Protection
PCIe EZ-Latch Plus
Storage
M.2 Slots
3 × M.2
M2A_CPU
PCIe 5.0 x4/x2
M2B_SB
PCIe 4.0 x4/x2
M2C_SB
PCIe 4.0 x2
M.2 Form Factor
25110 / 22110 / 2580 / 2280
M.2 Key
M Key
SATA Ports
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 10
RAID 5
Available with Ryzen 9000 Series
USB Connectivity
USB4
2 × USB4 Type-C up to 40Gbps
USB4 DisplayPort
DisplayPort Alternate Mode
Rear USB 10Gbps
1 × USB 3.2 Gen 2 Type-A
Rear USB 5Gbps
3 × USB 3.2 Gen 1
Rear USB 2.0
4 × USB 2.0 / 1.1
Front USB-C
USB 3.2 Gen 2x2 — 20Gbps
Internal USB 3.2 Gen 1
4 Ports
Internal USB 2.0
4 Ports
Networking
LAN Controller
Realtek 2.5GbE LAN
LAN Speed
2.5Gbps
LAN Speeds
2.5Gbps / 1Gbps / 100Mbps
Wi-Fi
Wi-Fi 7
Wi-Fi Module
MediaTek MT7925 / Realtek RTL8922AE
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wireless Standard
802.11a/b/g/n/ac/ax/be
Wi-Fi Standard
802.11be 160MHz
Bluetooth
Bluetooth 5.4
Wi-Fi Antenna
Ultra-High Gain Antenna
Audio
Audio Codec
Realtek High Definition Audio CODEC
Audio Channels
2 / 4 / 5.1 / 7.1 Channel
Audio Design
High-End Audio Capacitors
Display Outputs
USB4 Display Output
2 × USB4 Type-C
USB4 Maximum Resolution
3840 × 2160 @ 240Hz
USB4 Display Standard
DisplayPort 1.4 + HDR
HDMI
1 × HDMI 2.1
HDMI Maximum Resolution
4096 × 2160 @ 60Hz
HDMI Features
HDCP 2.3 / HDR

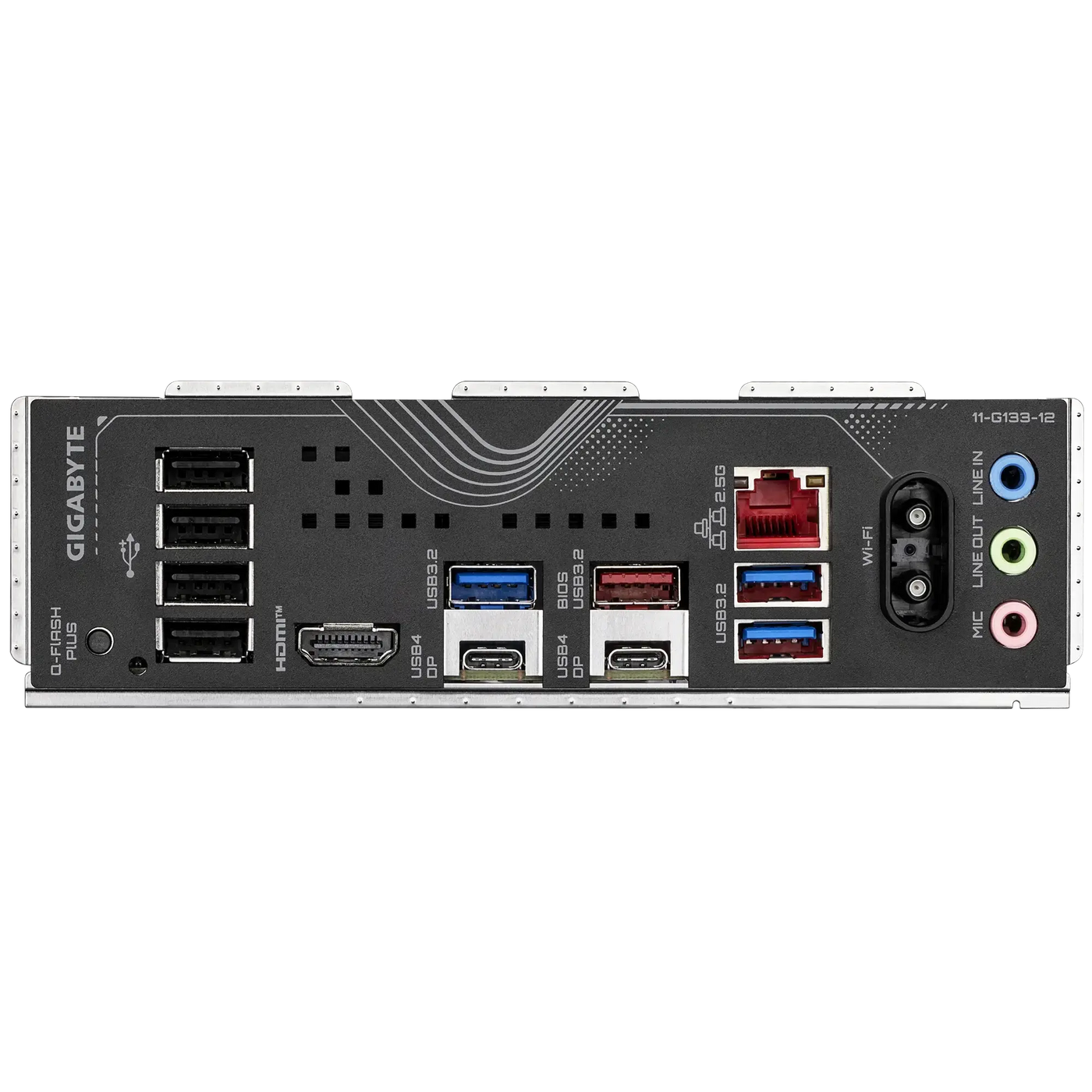

Rear I/O
USB4 Type-C
2 × up to 40Gbps
USB 10Gbps Type-A
1 ×
USB 5Gbps
3 ×
USB 2.0
4 ×
LAN
1 × RJ-45 2.5GbE
Wireless
Wi-Fi 7 + Bluetooth 5.4
HDMI
1 × HDMI 2.1
Audio
HD Audio Connectors
Internal Connectivity
Main Power
1 × 24-pin ATX
CPU Power
1 × 8-pin + 1 × 4-pin ATX 12V
CPU Fan
1 × CPU Fan Header
Water Pump
1 × CPU Fan / Water Cooling Pump Header
System Fans
4 × System Fan Headers
ARGB
3 × Addressable RGB Gen2
RGB
1 × RGB LED Header
USB-C Header
USB 3.2 Gen 2x2
USB 3.2 Gen 1 Header
1 × Header
USB 2.0 Headers
2 × Headers
TPM
1 × TPM Header
Power Button
Onboard Power Button
Reset Button
Onboard Reset Button
Clear CMOS
Clear CMOS Jumper
Cooling & Thermal Design
VRM Cooling
VRM Thermal Armor Advanced
M.2 Cooling
M.2 Thermal Guard
Fan Control
Smart Fan 6
Fan Headers
6 × PWM/DC Fan Headers
Fan Control
Dual Fan Curve Mode
Thermal Pad
5 W/mK Thermal Pad
GIGABYTE Features
PCIe Installation
EZ-Latch Plus
M.2 Installation
EZ-Latch Plus / EZ-Latch Click
Wi-Fi Installation
WIFI EZ-Plug
BIOS
Q-Flash Plus / Q-Flash Auto Scan
Debug
EZ-Debug Zone
RGB
RGB FUSION
VRM
14+2+2 Digital VRM
PCB
6-Layer Mid-Loss PCB
BIOS & Software
BIOS
UEFI BIOS
BIOS Update
Q-Flash Plus
BIOS Feature
Q-Flash Auto Scan
Software
GIGABYTE Control Center
RGB Software
RGB FUSION
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Requirement
Windows 11 SV3
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Product Identification
Model
GIGABYTE X870 EAGLE WIFI7
Chipset
AMD X870
Platform
AMD AM5
Form Factor
ATX
GIGABYTE X870 EAGLE WIFI7 AMD X870 • AM5 • DDR5 • PCIe 5.0 • Wi-Fi 7 • USB4 • 2.5GbE • ATX
