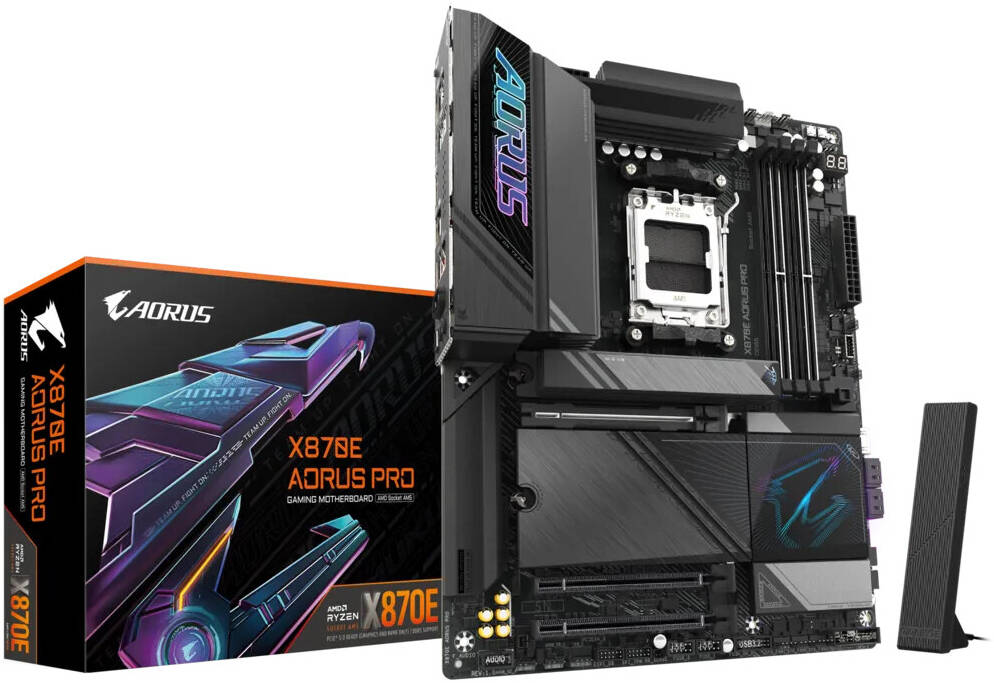

GIGABYTE X870E AORUS PRO X3D ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slots, 4x M.2 Slots

Gigabyte

GIGABYTE X870E AORUS PRO X3D ATX AM5 Motherboard, AMD X870E Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory, 1x PCIe 5.0 x16 with PCIe UD Slots, 4x M.2 Slots

1 year warranty

  • Availability: In Stock
449.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

GIGABYTE • AORUS
X870E AORUS PRO X3D
AMD X870E • AM5 • DDR5 • ATX • X3D GAMING
A high-performance AMD AM5 gaming motherboard engineered for Ryzen processors, featuring DDR5 memory support, PCIe 5.0 graphics, four M.2 NVMe slots, USB4 connectivity, advanced thermal design and GIGABYTE's X3D-focused performance technologies.
AM5 X870E DDR5 PCIe 5.0 X3D 4× M.2
AM5 CPU SOCKET
256GB MAX DDR5
4× M.2 SLOTS
PCIe 5.0 GPU INTERFACE
AORUS X3D PERFORMANCE PLATFORM

Built for Ryzen X3D Gaming.

The X870E AORUS PRO X3D combines the AMD X870E platform with high-speed DDR5 memory, PCIe 5.0 graphics, four M.2 storage interfaces, USB4 and an advanced AORUS thermal and power design for demanding gaming systems.

01

X3D Gaming Performance

Designed around AMD Ryzen processors with dedicated X3D-focused performance technologies for high-end gaming systems.

02

PCIe 5.0 Graphics

The primary PCIe x16 slot supports PCIe 5.0 x16 with a reinforced PCIe UD Slot design for modern high-performance graphics cards.

03

Four M.2 NVMe Slots

Four M.2 interfaces provide extensive high-speed NVMe storage expansion, including two PCIe 5.0 CPU-connected slots and two PCIe 4.0 chipset slots.

AORUS X3D

High-End AMD Gaming Architecture

With PCIe 5.0 graphics, high-speed DDR5 memory, four M.2 slots, USB4 and advanced AORUS thermal technologies, the X870E AORUS PRO X3D is designed for powerful modern gaming builds.

256GB MAX DDR5
PCIe 5.0 GPU SLOT
4× M.2 STORAGE
40Gbps USB4

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E
Platform
AMD AM5
X3D Technology
X3D Gaming Optimization
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Architecture
Dual Channel
Memory Profiles
AMD EXPO / Intel XMP
Memory Type
Non-ECC Unbuffered DIMM
On-Die ECC
Supported
Expansion Slots
Primary PCIe Slot
1 × PCIe 5.0 x16
Primary Slot Mode
x16
Primary Slot Source
CPU
Secondary PCIe Slot
1 × PCIe 4.0 x16
Secondary Slot Mode
x4
Third PCIe Slot
1 × PCIe 3.0 x16
Third Slot Mode
x2
PCIe Reinforcement
PCIe UD Slot
Storage
M.2 Slots
4 × M.2
M2A_CPU
PCIe 5.0 x4 / x2
M2B_CPU
PCIe 5.0 x4 / x2
M2C_SB
PCIe 4.0 x4 / x2
M2D_SB
PCIe 4.0 x4 / x2
M.2 Sizes
22110 / 2280
SATA
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5 / 10
SATA RAID
RAID 0 / 1 / 10
RAID 5
Available with Ryzen 9000 Series
M2B_CPU Sharing
Shares Bandwidth with ASMedia USB4 Controller
USB Connectivity
USB4
2 × USB-C — 40Gbps
Rear USB-C
1 × USB 3.2 Gen 2
Rear USB 3.2 Gen 2 Type-A
5 ×
Rear USB 3.2 Gen 1
3 ×
Rear USB 2.0
Available via Internal Headers
Front USB-C
USB 3.2 Gen 2x2 — Up to 20Gbps
USB-C Charging
Up to 65W PD 3.0 / QC 4+
Display Outputs
USB4 Display
2 × USB-C DisplayPort
USB4 Maximum Resolution
3840 × 2160 @ 240Hz
DisplayPort
DisplayPort 1.4
HDMI
1 × HDMI 2.1
HDMI Maximum
4096 × 2160 @ 60Hz
Networking
LAN
High-Speed Ethernet
Wireless
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Wireless Bands
2.4GHz / 5GHz / 6GHz
Audio
Audio Codec
Realtek High Definition Audio
Audio Features
High Definition Audio
Digital Audio
S/PDIF Out

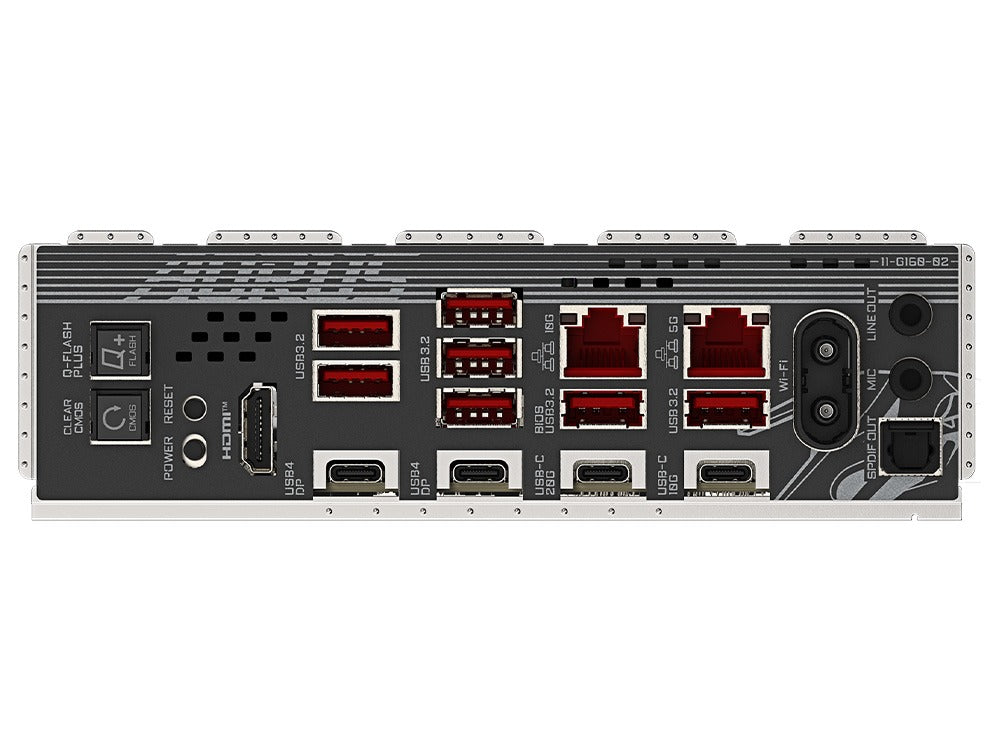

Rear I/O
USB4
2 × USB-C — 40Gbps
USB-C
1 × USB 3.2 Gen 2
USB 10Gbps Type-A
5 ×
USB 5Gbps
3 × USB 3.2 Gen 1
Wireless
Wi-Fi 7 + Bluetooth 5.4
Display
HDMI 2.1 + USB4 DisplayPort
Audio
Audio Connectors + S/PDIF
BIOS
Q-Flash Plus
Cooling & Thermal Design
VRM Cooling
Advanced VRM Heatsink Design
M.2 Cooling
M.2 Thermal Guard
Chipset Cooling
Chipset Heatsink
Fan Control
Smart Fan 6
Fan Headers
Multiple PWM/DC Fan Headers
AORUS Features & EZ DIY
PCIe Reinforcement
PCIe UD Slot
BIOS Update
Q-Flash Plus
System Management
GIGABYTE Control Center
Fan Management
Smart Fan 6
Gaming Technology
X3D Turbo Mode
Memory Technology
AMD EXPO / XMP Support
RGB Lighting
RGB System
RGB Fusion
Addressable RGB
Addressable LED Headers
Lighting Software
GIGABYTE Control Center
BIOS & Software
BIOS
AMI UEFI BIOS
BIOS Flash
Q-Flash Plus
System Software
GIGABYTE Control Center
Backup Software
Smart Backup
Operating System
Supported OS
Windows 11 64-bit
Additional Support
Windows 10 64-bit
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Product Identification
Model
X870E AORUS PRO X3D
Brand
GIGABYTE
Series
AORUS
Chipset
AMD X870E
Platform
AMD AM5
Form Factor
ATX
GIGABYTE X870E AORUS PRO X3D AMD X870E • AM5 • DDR5 • PCIe 5.0 • 4× M.2 • X3D Gaming • USB4 • ATX
