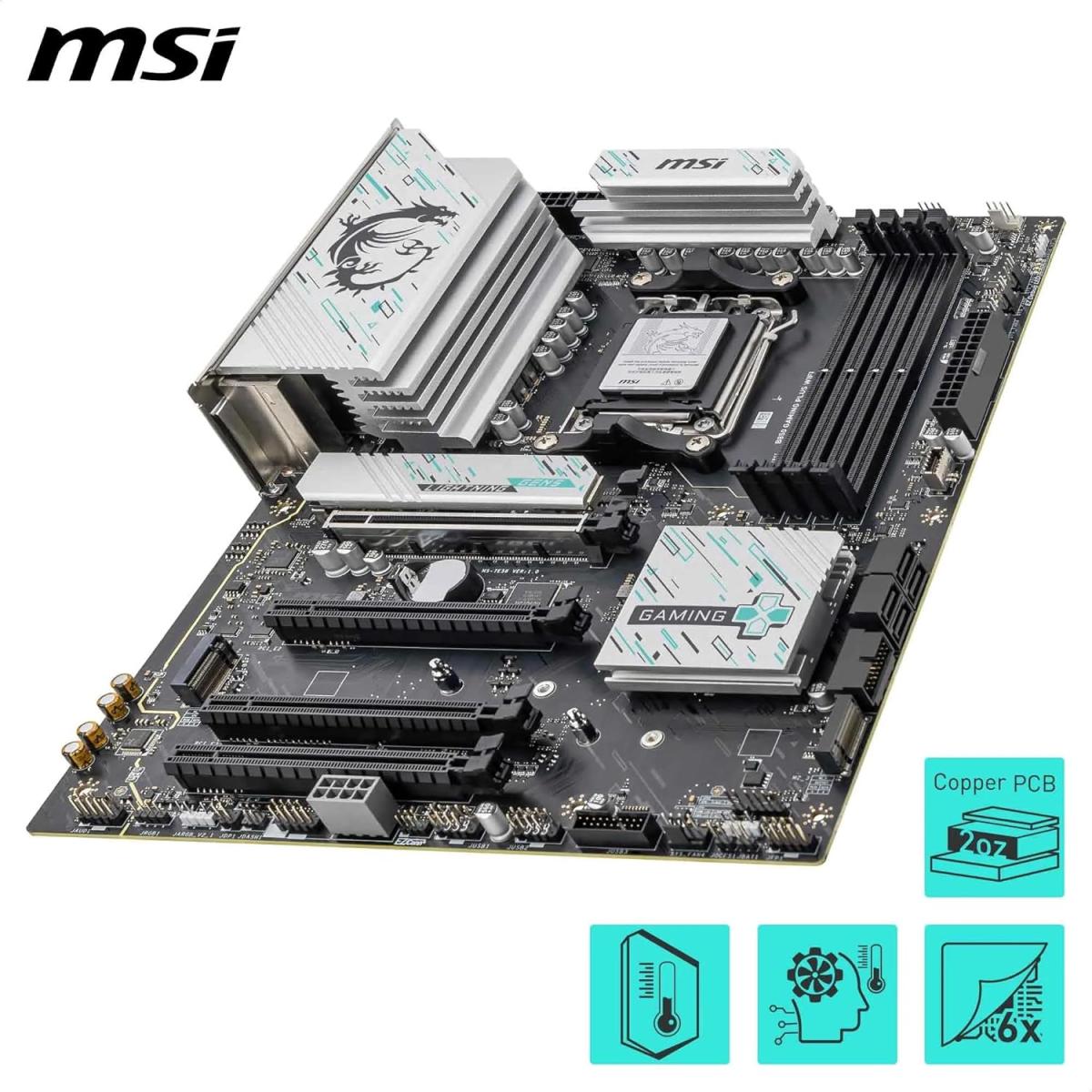

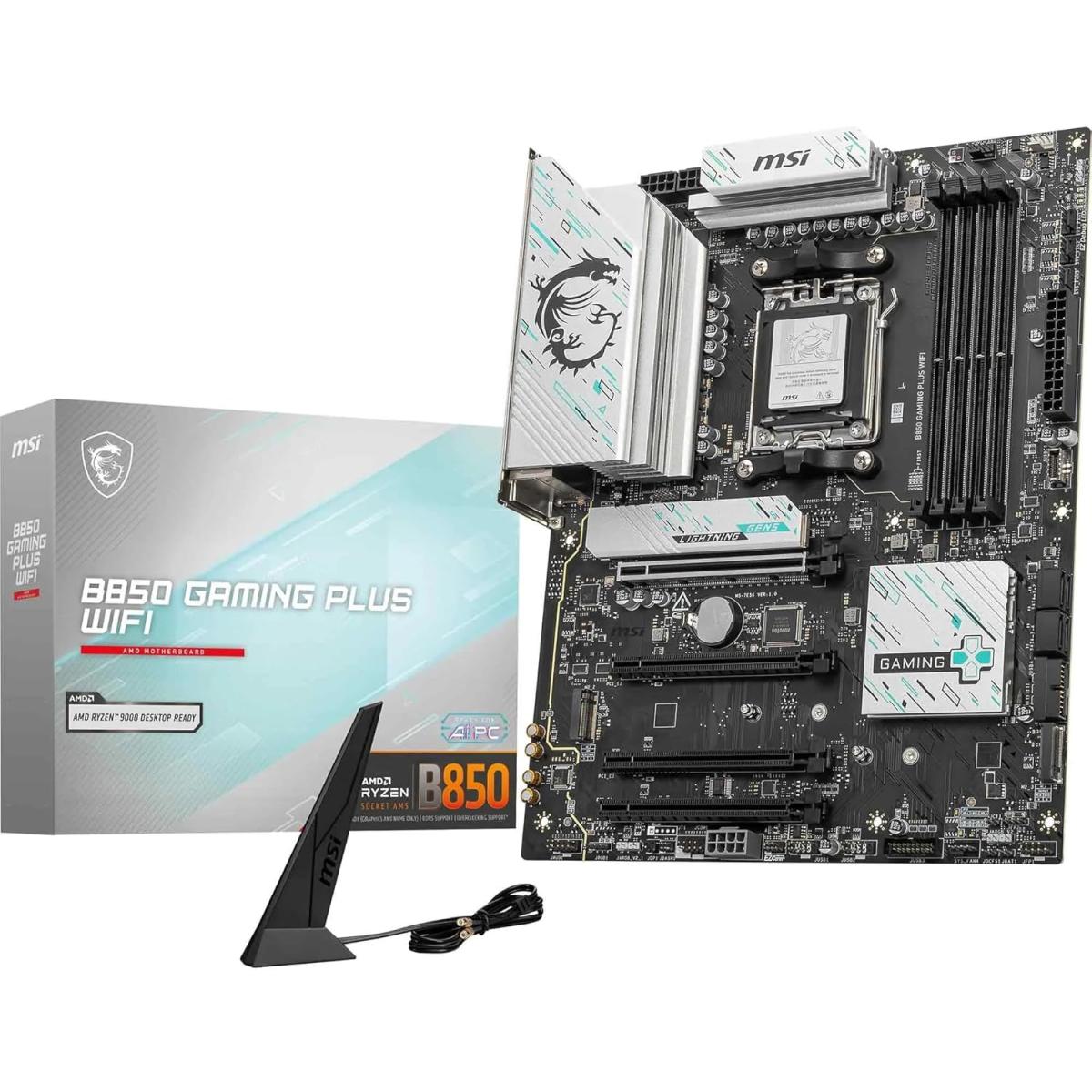

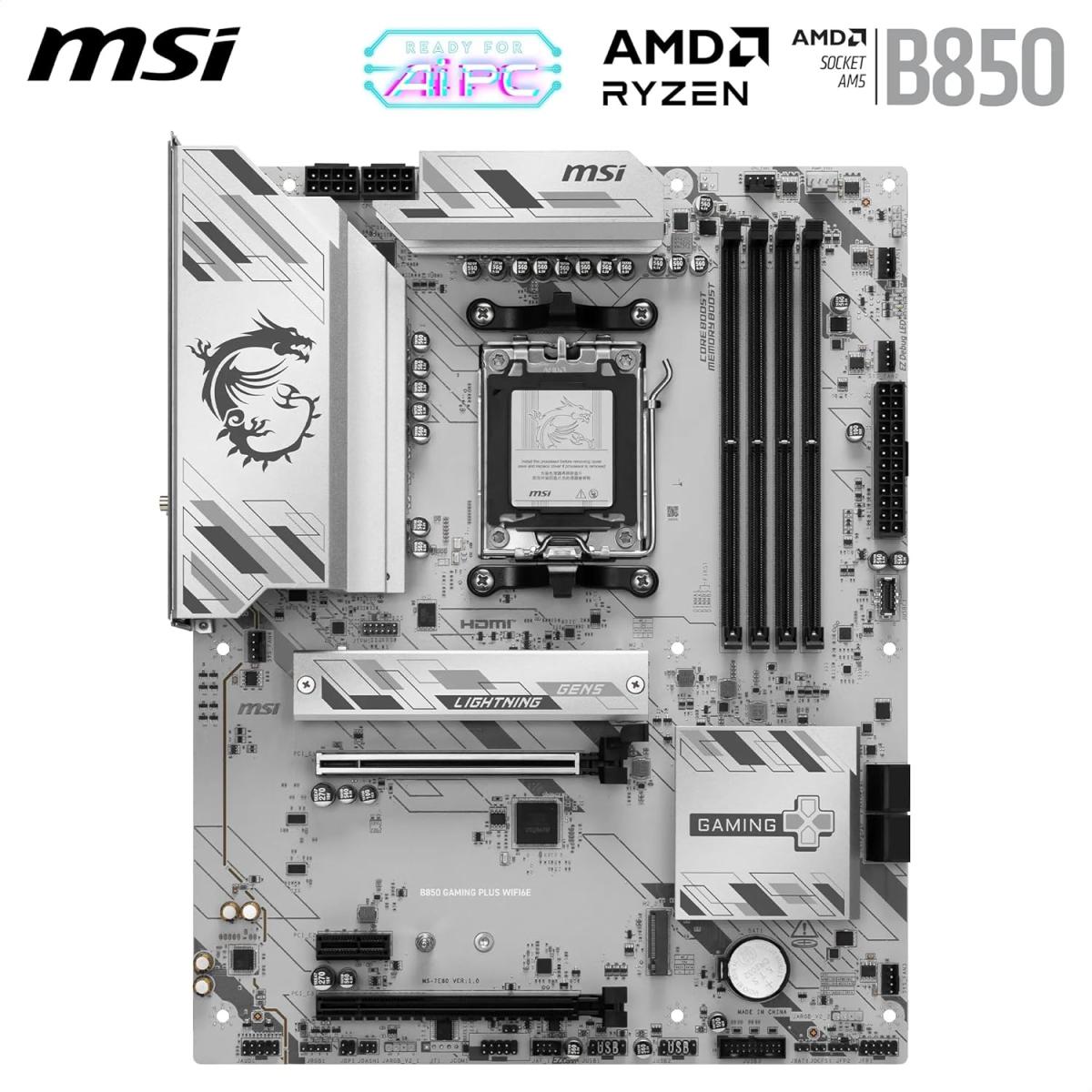

MSI B850 Gaming Plus WiFi AM5 ATX AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity

MSI

MSI B850 Gaming Plus WiFi AM5 ATX AMD B850 Chipset, 4x DDR5 UDIMM Slots, Up to 256GB Max Memory, 4x PCIe x16 Slots, 3x M.2 Slots, WiFi & BT Connectivity

1 year warranty

  • Availability: In Stock
189.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

MSI • B850 GAMING SERIES
B850 GAMING PLUS WIFI
AMD B850 • AM5 • DDR5 • ATX • Wi-Fi 7
A high-performance AMD AM5 motherboard designed for Ryzen 9000, 8000 and 7000 Series processors, featuring DDR5 memory, PCIe 5.0 graphics, three M.2 NVMe slots, 5G LAN and next-generation Wi-Fi 7 connectivity.
AM5 B850 DDR5 PCIe 5.0 Wi-Fi 7
AM5 CPU SOCKET
256GB MAX MEMORY
DDR5-8200+ OC MEMORY
5.8Gbps WI-FI 7
MSI B850 PLATFORM

Built for Next-Generation Ryzen Performance

The MSI B850 GAMING PLUS WIFI combines the AMD B850 chipset with high-speed DDR5 memory, PCIe 5.0 graphics connectivity, three M.2 NVMe slots, 5G LAN and Wi-Fi 7 for a powerful modern gaming and enthusiast platform.

01

AMD AM5 Platform

Supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors with the latest AMD B850 chipset platform.

02

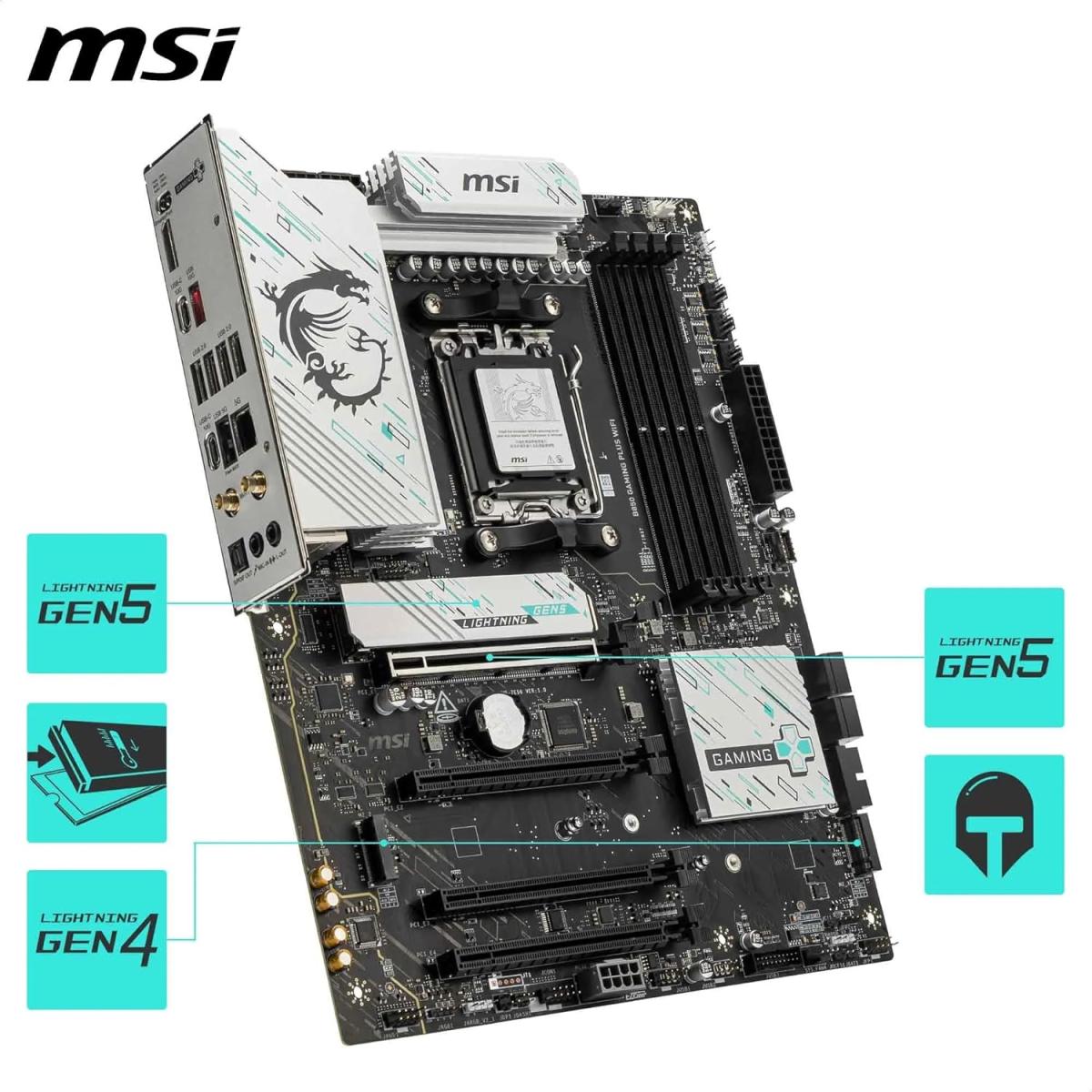

PCIe 5.0 & Triple M.2

Features a PCIe 5.0 x16 graphics slot and three M.2 NVMe slots including a PCIe 5.0 x4 interface.

03

Wi-Fi 7 & 5G LAN

Enjoy next-generation wireless connectivity up to 5.8Gbps alongside a Realtek 5GbE wired network connection.

MSI GAMING PLUS

High-Speed Connectivity Everywhere

From PCIe 5.0 and DDR5 to Wi-Fi 7, 5G LAN and high-speed USB connectivity, the B850 GAMING PLUS WIFI is built around modern performance standards.

4 DDR5 DIMM SLOTS
3 M.2 NVMe SLOTS
5Gbps LAN
5.8Gbps WI-FI 7

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD B850
Memory
Memory Type
DDR5
Memory Slots
4 × DDR5 UDIMM
Maximum Capacity
256GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-8200+ MT/s
JEDEC Speed Range
DDR5-4800 to DDR5-5600 MT/s
Memory Overclocking
Supported
AMD EXPO
Supported
CUDIMM
Supported — Clock Driver Bypass Mode
Memory Type
Non-ECC Unbuffered
Expansion Slots
PCI_E1
PCIe 5.0 x16
PCI_E2
PCIe 3.0 x1
PCI_E3
PCIe 4.0 x4
PCI_E4
PCIe 3.0 x1
Physical PCIe Slots
4 × PCIe x16
PCI_E1 Source
CPU
PCI_E2 / E3 / E4 Source
AMD B850 Chipset
Bandwidth Sharing
PCI_E2 / E3 / E4 Share Bandwidth
Storage
M.2 Slots
3 × M.2
M.2_1
PCIe 5.0 x4 — From CPU
M.2_2
PCIe 4.0 x4 — From CPU
M.2_3
PCIe 4.0 x2 — From Chipset
M.2_1 Form Factor
2260 / 2280
M.2_2 Form Factor
22110 / 2280
M.2_3 Form Factor
2260 / 2280
SATA Ports
4 × SATA 6Gb/s
M.2 RAID
RAID 0 / 1
SATA RAID
RAID 0 / 1
USB Connectivity
Rear USB 10Gbps
1 × Type-A + 2 × Type-C
Rear USB 5Gbps
1 × Type-A
Rear USB 2.0
4 × Type-A
Front USB 5Gbps
4 × Type-A + 1 × Type-C
Front USB 2.0
4 × USB 2.0
Networking
LAN Controller
Realtek RTL8126VB
LAN Speed
5Gbps
Wi-Fi
Wi-Fi 7
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wi-Fi Channel
Up to 320MHz
Maximum Wi-Fi Speed
Up to 5.8Gbps
Wireless Standards
802.11a/b/g/n/ac/ax/be
Bluetooth
Bluetooth 5.4
Wireless Features
MLO / 4KQAM / MU-MIMO
Audio
Audio Codec
Realtek ALC897
Audio Channels
7.1-Channel High Definition Audio
Audio Technology
MSI Audio Boost
Display Output
DisplayPort
1 × DisplayPort 1.2 HBR2
Maximum Resolution
4K @ 60Hz
Requirement
Processor with Integrated Graphics

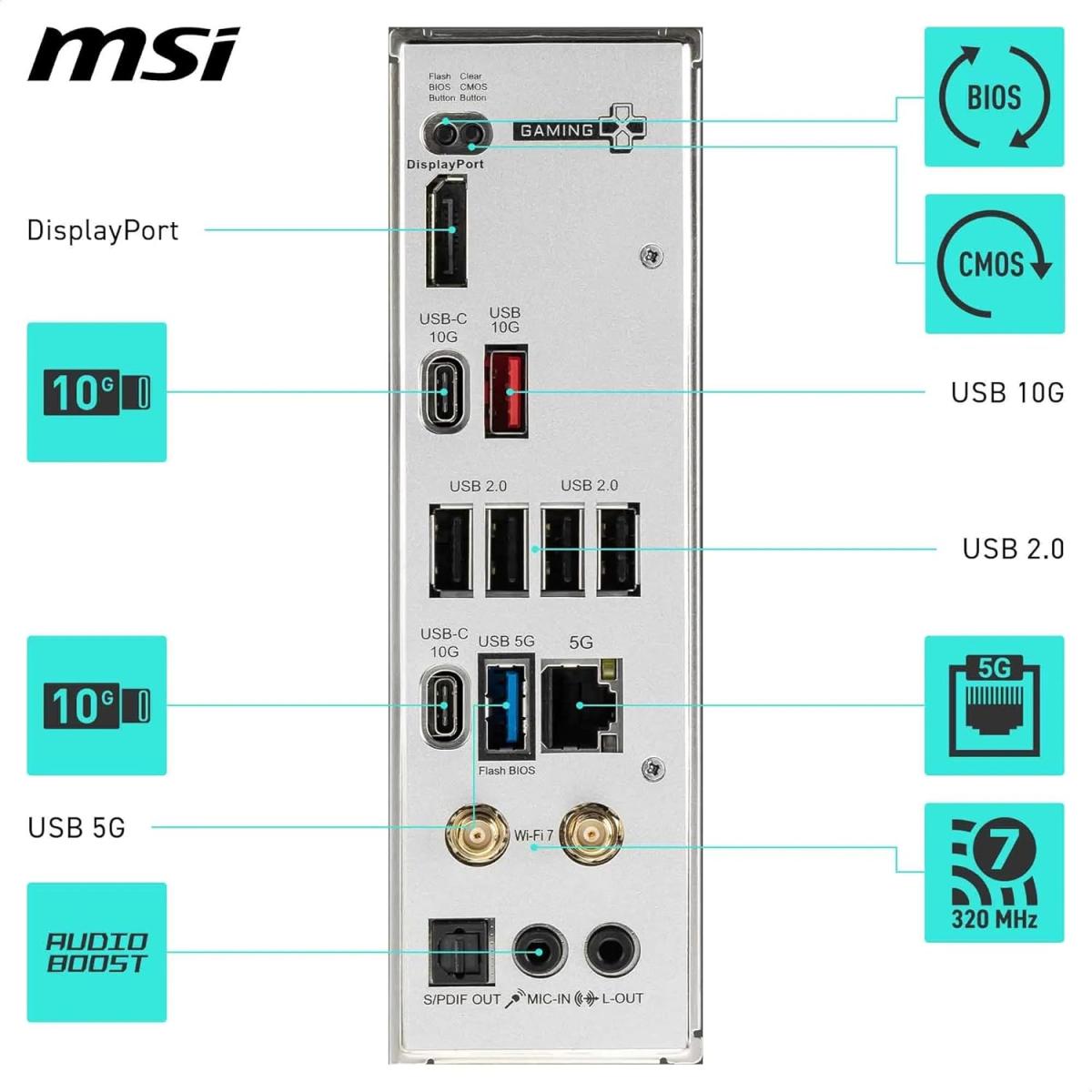

Rear I/O
USB 10Gbps Type-A
1 ×
USB 10Gbps Type-C
2 ×
USB 5Gbps Type-A
1 ×
USB 2.0 Type-A
4 ×
LAN
1 × RJ-45 5GbE
Wireless
Wi-Fi 7 / Bluetooth 5.4
Display
1 × DisplayPort
Audio
HD Audio Connectors
Optical Audio
1 × S/PDIF-Out
BIOS
Flash BIOS Button
CMOS
Clear CMOS Button
Internal Connectivity
Main Power
1 × ATX_PWR
CPU Power
2 × CPU_PWR
PCIe Power
1 × 8-pin PCIE_PWR
CPU Fan
1 × CPU Fan Header
Combo Fan
1 × Pump / System Fan
System Fans
4 × System Fan Headers
ARGB
3 × Addressable V2 RGB
RGB
1 × RGB LED Header
TPM
1 × TPM 2.0 Header
Front Audio
1 × JAUD
Front Panel
2 × JFP
Chassis Intrusion
1 × JCI
MSI Features
Memory Technology
MSI Memory Boost
Audio Technology
Audio Boost
BIOS Update
Flash BIOS Button
Debug
4 × EZ Debug LED
Cooling
Smart Fan Technology
RGB
Mystic Light
PCB
6-Layer PCB
BIOS & Software
BIOS
UEFI AMI BIOS
BIOS Update
Flash BIOS Button
System Management
MSI Center
RGB Software
Mystic Light
Operating System
Supported OS
Windows 11 64-bit
Physical Specifications
Form Factor
ATX
Dimensions
243.84 × 304.8mm
Dimensions
9.6 × 12.0 inches
Product Identification
Model
MSI B850 GAMING PLUS WIFI
Chipset
AMD B850
Platform
AMD AM5
MSI B850 GAMING PLUS WIFI AMD B850 • AM5 • DDR5 • PCIe 5.0 • Wi-Fi 7 • 5G LAN • ATX
