New

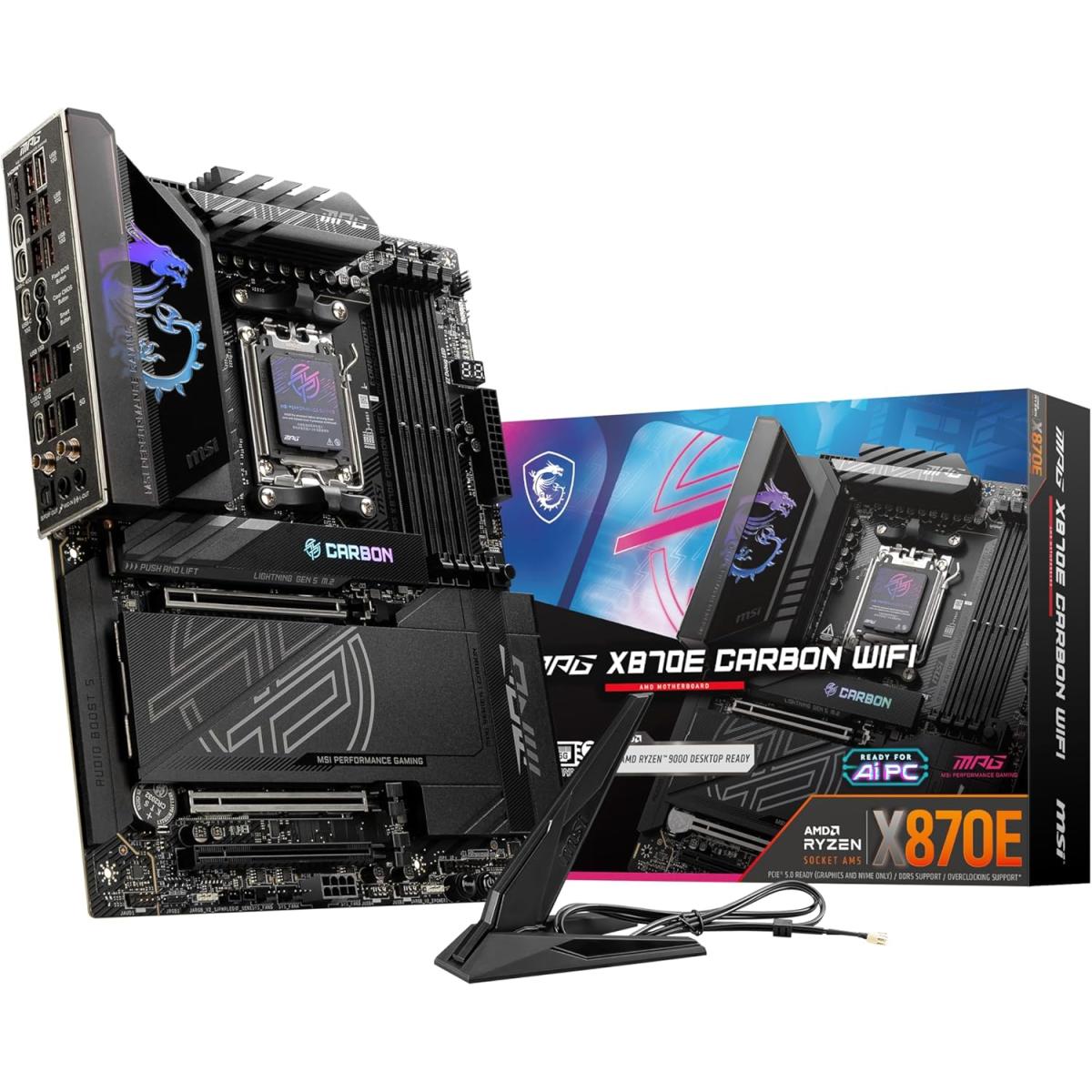

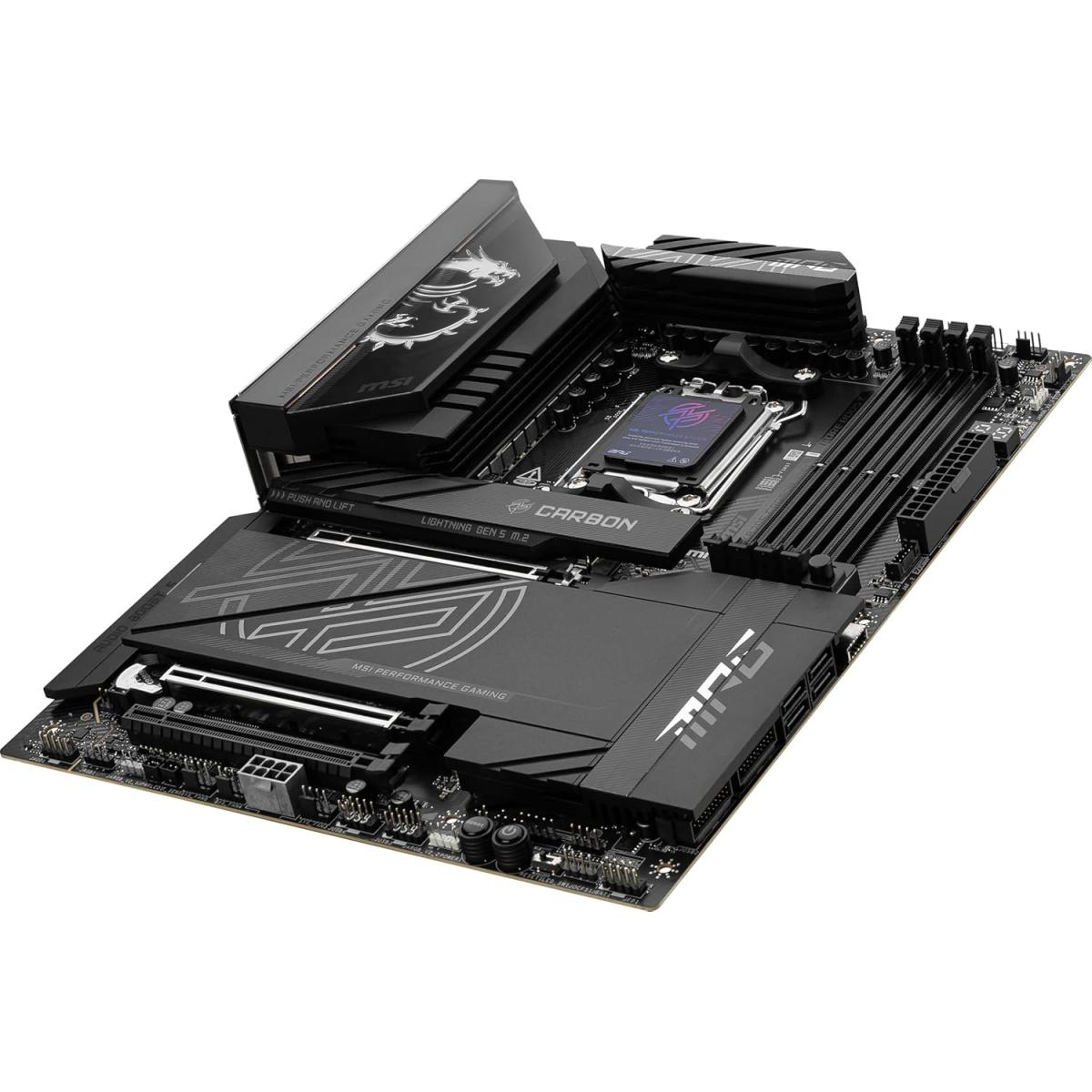

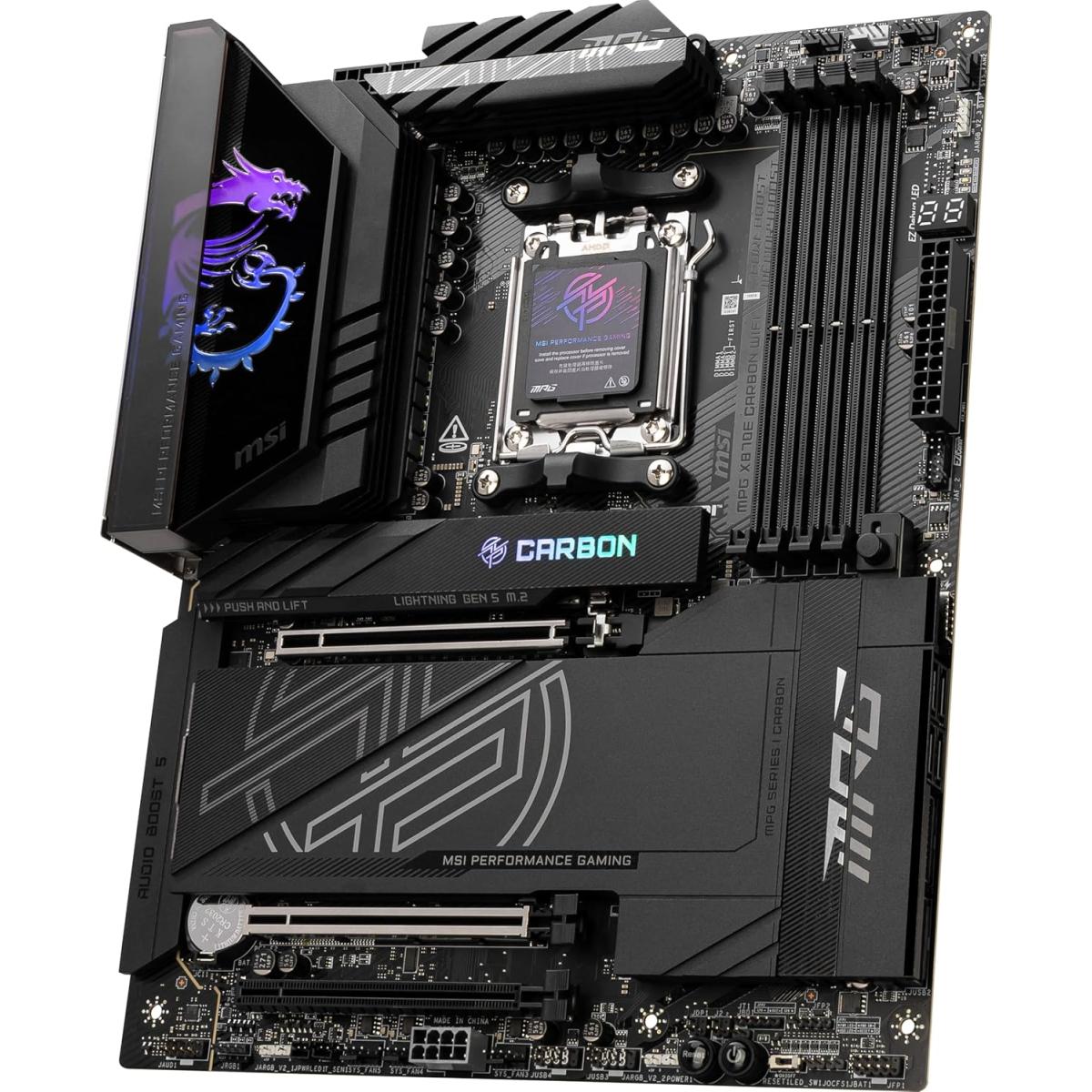

MSI MPG X870E Carbon Wi-Fi AM5 ATX AMD X870E Chipset DDR5 4x M.2 Slots, 3x PCI-E x16 Slots, Wi-Fi 7 & BT5.4 Connectivty, Black

MSI

MSI MPG X870E Carbon Wi-Fi AM5 ATX AMD X870E Chipset DDR5 4x M.2 Slots, 3x PCI-E x16 Slots, Wi-Fi 7 & BT5.4 Connectivty, Black

1 year warranty

  • Availability: In Stock
399.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

MSI • MPG
MPG X870E CARBON WIFI
AMD X870E • AM5 • DDR5 • ATX • Wi-Fi 7
A premium AMD AM5 gaming motherboard engineered for Ryzen 9000, 8000 and 7000 Series processors, featuring high-speed DDR5 memory, PCIe 5.0 graphics, dual PCIe 5.0 M.2 slots, Wi-Fi 7, dual-speed Ethernet and USB4 connectivity.
AM5 X870E DDR5 PCIe 5.0 Wi-Fi 7 5GbE
AM5 CPU SOCKET
256GB MAX DDR5
4× M.2 SLOTS
Wi-Fi 7 WIRELESS
MSI MPG PERFORMANCE PLATFORM

High-End AMD Performance. Maximum Connectivity.

The MPG X870E CARBON WIFI combines a powerful AM5 platform with DDR5-9000+ overclocking support, PCIe 5.0 graphics, four M.2 storage slots, Wi-Fi 7, dual LAN connectivity, USB4 and advanced MSI thermal and power delivery technology.

01

Premium Power Delivery

Designed for demanding Ryzen processors with a powerful digital VRM architecture, premium power stages and robust cooling for sustained performance.

02

Dual Gen5 M.2

Four M.2 connectors provide extensive NVMe expansion, including two PCIe 5.0 x4 slots and two PCIe 4.0 x4 slots.

03

Wi-Fi 7 & Dual LAN

Connect at high speed using Wi-Fi 7, Bluetooth 5.4, 5Gb Ethernet and an additional 2.5Gb Ethernet port.

MPG CARBON

Built for Enthusiast AMD Gaming Systems

With DDR5-9000+ overclocking support, PCIe 5.0, dual Gen5 M.2 storage, Wi-Fi 7, 5GbE, 2.5GbE and USB4, the X870E CARBON WIFI is built for high-end gaming and workstation-class systems.

4 DDR5 DIMM SLOTS
9000+ DDR5 MT/s OC
2× GEN5 M.2
5Gb LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E
Platform
AMD AM5
CPU Power
Dual CPU Power Connectors
Memory
Memory Type
DDR5 UDIMM
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-9000+ MT/s
JEDEC Speed
DDR5-5600 to DDR5-4800 MT/s
Memory Profiles
AMD EXPO
Memory Type
Non-ECC Unbuffered
CUDIMM
Supported in Clock Driver Bypass Mode
Expansion Slots
PCI_E1
PCIe 5.0 x16
PCI_E2
PCIe 5.0 x4
PCI_E3
PCIe 4.0 x4
Total PCIe x16 Slots
3 ×
PCIe Configuration
x16 / x0 or x8 / x4
PCIe Source
CPU + Chipset
PCIe Sharing
PCI_E1 / PCI_E2 / M.2_2 Bandwidth Sharing
Storage
M.2 Slots
4 × M.2
M.2_1
PCIe 5.0 x4
M.2_2
PCIe 5.0 x4
M.2_3
PCIe 4.0 x4
M.2_4
PCIe 4.0 x4
M.2_1 Sizes
2260 / 2280
M.2_2 Sizes
2260 / 2280
M.2_3 Sizes
22110 / 2280
M.2_4 Sizes
2260 / 2280
SATA
4 × SATA 6Gb/s
SATA RAID
RAID 0 / 1 / 10
M.2 NVMe RAID
RAID 0 / 1 / 5 / 10
Ryzen 9000 / 7000 RAID
RAID 0 / 1 / 5 / 10
Ryzen 8000 M.2_2
Unavailable
Networking
Primary LAN
Realtek RTL8126 5Gb Ethernet
Secondary LAN
Realtek RTL8125 2.5Gb Ethernet
Wi-Fi
Wi-Fi 7
Wireless Speed
Up to 5.8Gbps
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wi-Fi Channel Width
Up to 320MHz
Wireless Standard
802.11a/b/g/n/ac/ax/be
Bluetooth
Bluetooth 5.4
Wireless Features
MLO / 4K QAM / MU-MIMO
USB Connectivity
USB4
2 × USB Type-C — 40Gbps
Rear USB 10Gbps
9 × USB Type-A
Rear USB 10Gbps Type-C
2 × USB Type-C
Front USB 20Gbps
1 × USB Type-C
Front USB 5Gbps
4 × USB Type-A
Front USB 2.0
4 × USB 2.0
Front USB-C Power Delivery
Up to 27W
Audio
Audio Codec
Realtek ALC4080
Audio Channels
7.1-Channel High Performance Audio
Playback
Up to 32-bit / 384kHz
Audio Technology
MSI Audio Boost 5
S/PDIF
Optical S/PDIF Output
Display Outputs
HDMI
1 × HDMI 2.1 FRL
HDMI Maximum
8K @ 60Hz
USB4 Display
2 × USB4 Type-C
USB4 Display Standard
DisplayPort 1.4 with HBR3
USB4 Display Maximum
4K @ 60Hz
Display Requirement
CPU with Integrated Graphics

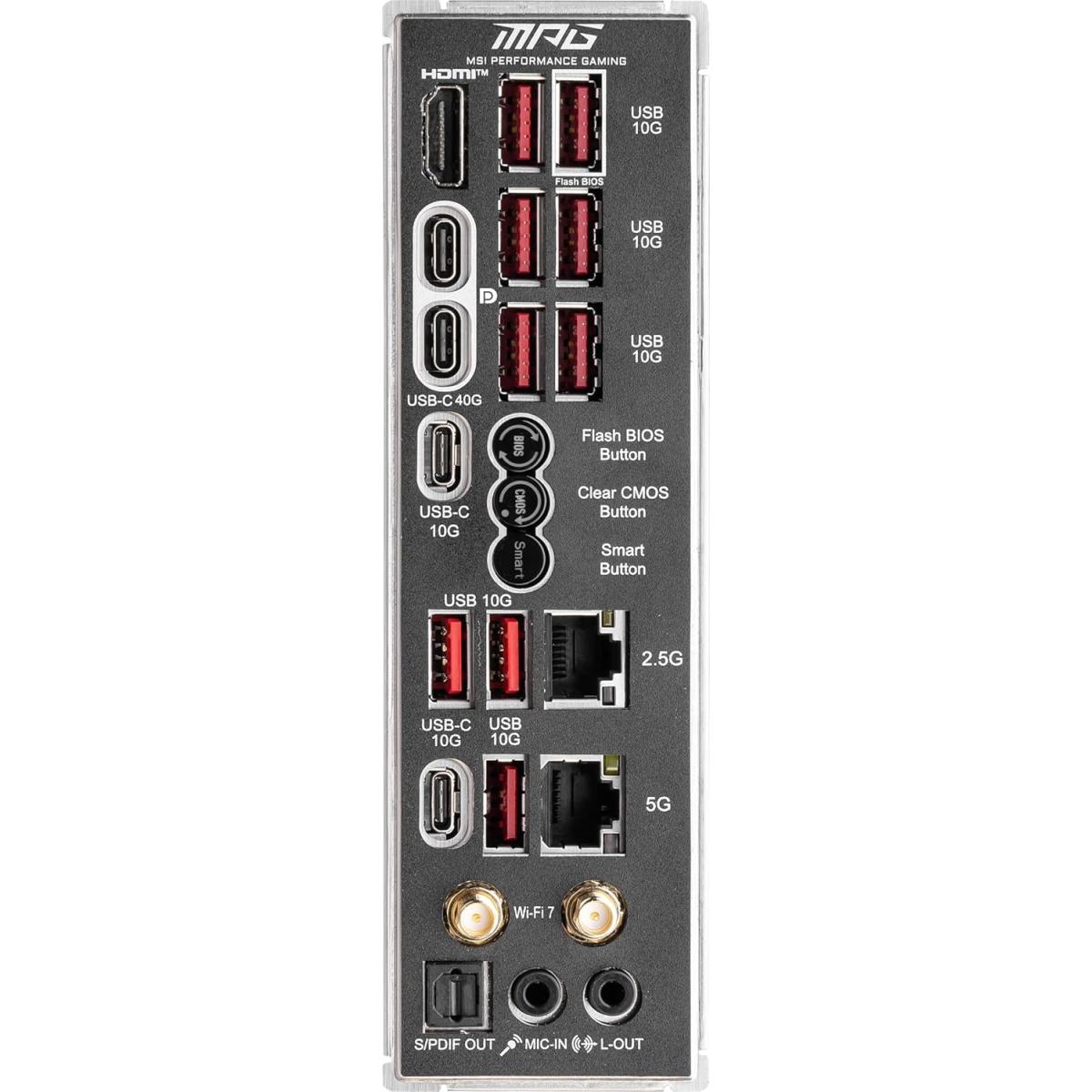

Rear I/O
USB4
2 × USB Type-C — 40Gbps
USB 10Gbps Type-A
9 ×
USB 10Gbps Type-C
2 ×
LAN
1 × 5GbE + 1 × 2.5GbE
Wireless
Wi-Fi 7 + Bluetooth 5.4
HDMI
1 × HDMI 2.1 FRL
Audio
Audio Connectors + Optical S/PDIF
BIOS
Flash BIOS Button
Clear CMOS
Clear CMOS Button
Smart Control
Smart Button
Internal Connectivity
Main Power
1 × ATX_PWR
CPU Power
2 × CPU_PWR
PCIe Power
1 × 8-pin PCIe_PWR
CPU Fan
1 × CPU Fan
Pump / System Fan
1 × Combo Fan
System Fans
5 × System Fan
ARGB
3 × Addressable V2 RGB
RGB
1 × RGB LED Connector
Thermal Sensors
Thermal Sensor Connectors
Front USB-C
1 × USB 20Gbps Header
Front USB 5Gbps
4 × USB Type-A Ports
Front USB 2.0
4 × USB 2.0 Ports
Cooling & Thermal Design
VRM Cooling
Extended VRM Heatsink
VRM Heatpipe
Extended Heatpipe Design
M.2 Cooling
EZ M.2 Shield Frozr II
M.2 Installation
EZ Magnetic M.2 Shield Frozr II
Chipset Cooling
Chipset Heatsink
Fan Headers
CPU / Pump + 5 System Fan
Fan Control
Smart Fan Mode
MSI Features & EZ DIY
M.2 Installation
EZ M.2 Shield Frozr II
M.2 Magnetic Shield
EZ Magnetic M.2 Shield Frozr II
PCIe Installation
EZ PCIe Release
BIOS Update
Flash BIOS Button
Diagnostics
EZ Debug LED
Debug Display
EZ Digit Debug LED
Smart Control
Smart Button
Software
MSI Center
RGB Lighting
RGB System
MSI Mystic Light
Addressable RGB
3 × Addressable V2 RGB Headers
RGB Header
1 × RGB LED Header
CORSAIR RGB
1 × CORSAIR LED Connector
Lighting Software
MSI Center / Mystic Light
Diagnostics & BIOS
Debug LED
4 × EZ Debug LED
Debug Display
1 × EZ Digit Debug LED
BIOS Update
Flash BIOS Button
CMOS Reset
Clear CMOS Button
BIOS Interface
MSI Click BIOS
Software & Features
System Software
MSI Center
RGB Software
Mystic Light
Hardware Monitoring
Hardware Monitor
Driver Management
MSI Driver Utility Installer
Gaming Features
MSI Game Boost
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7
Windows 11 Version 24H2 Ready
Physical Specifications
Form Factor
ATX
Dimensions
30.5 × 24.4cm
Dimensions
12 × 9.6 inches
Color
Black
Product Identification
Model
MSI MPG X870E CARBON WIFI
Chipset
AMD X870E
Platform
AMD AM5
Series
MPG CARBON
Form Factor
ATX
Color
Black
MSI MPG X870E CARBON WIFI AMD X870E • AM5 • DDR5 • PCIe 5.0 • 4× M.2 • Wi-Fi 7 • 5GbE + 2.5GbE • USB4 • ATX
