New
MSI PRO X870E-P WiFi 7 Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-60A SPS VRM, DDR5 Memory Boost (8200+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

MSI

MSI PRO X870E-P WiFi 7 Motherboard, ATX - Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-60A SPS VRM, DDR5 Memory Boost (8200+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

1 year warranty

  • Availability: In Stock
229.000 JOD
Get offer by email
  • SH Certified / inspected
  • Delivery across Jordan
  • 1 year warranty
  • Expert help on WhatsApp

Product Specifications

Full technical details for this system

MSI • PRO SERIES

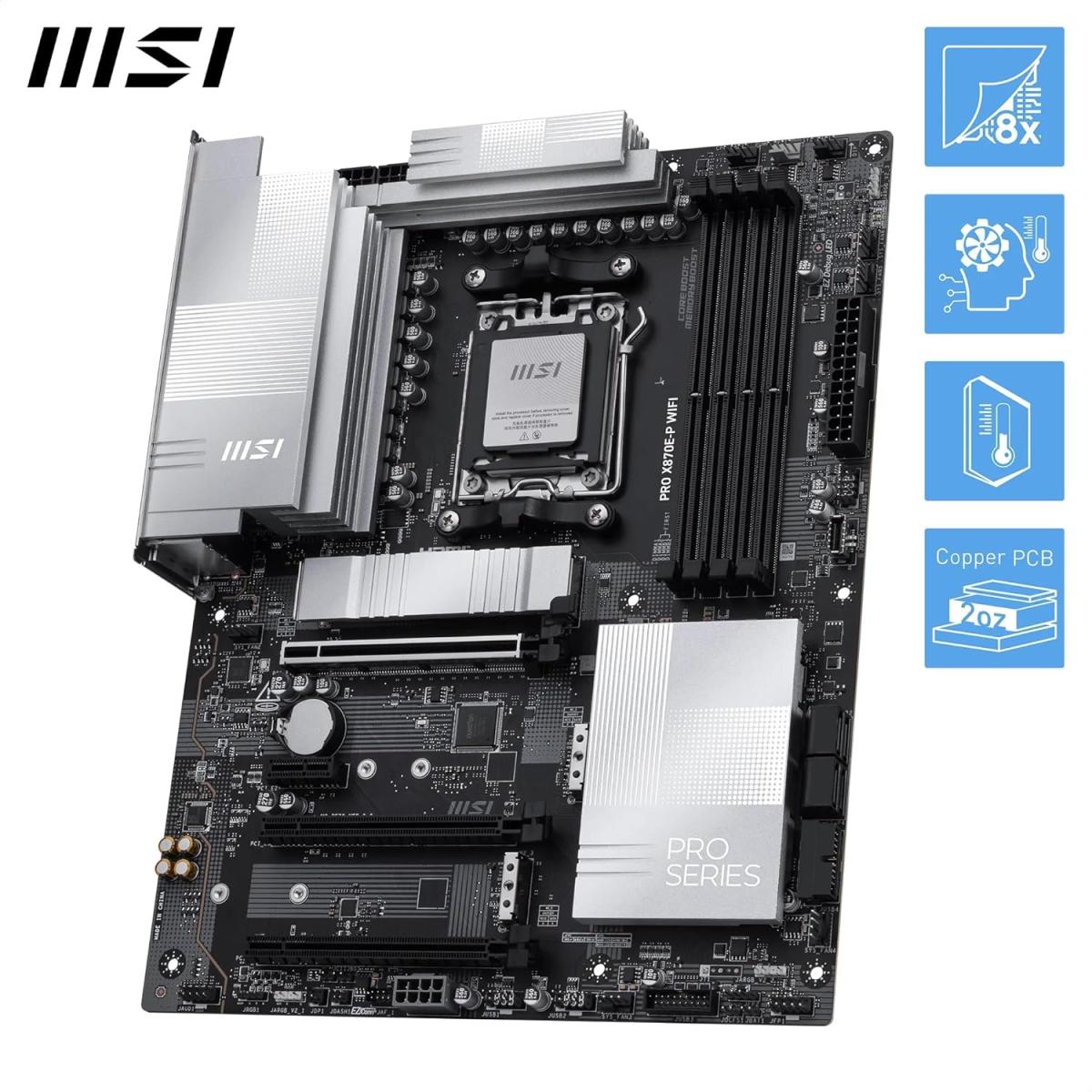

PRO X870E-P WIFI
AMD X870E • AM5 • DDR5 • ATX • Wi-Fi 7
A powerful AMD AM5 motherboard designed for Ryzen 9000, 8000 and 7000 Series processors, featuring high-speed DDR5, PCIe 5.0 graphics, PCIe 5.0 NVMe storage, Wi-Fi 7, 5G LAN and USB4 connectivity.
AM5 X870E DDR5 PCIe 5.0 Wi-Fi 7 5G LAN
AM5 CPU SOCKET
256GB MAX DDR5
3× M.2 NVMe
5GbE LAN
MSI PRO X870E PLATFORM

Professional Performance. Next-Generation Connectivity.

The PRO X870E-P WIFI combines AMD X870E platform technology with DDR5 memory support, PCIe 5.0 graphics, Lightning Gen 5 M.2 storage, USB4, 5G LAN and Wi-Fi 7 for a powerful foundation for modern gaming, productivity and high-performance systems.

01

14+2+1 Digital Power

A 14+2+1 Duet Rail Power System with 60A Smart Power Stages delivers stable and efficient power for demanding Ryzen processors.

02

PCIe 5.0 & Gen5 M.2

The primary PCIe slot supports PCIe 5.0 x16 while the primary M.2 slot supports PCIe 5.0 x4 for next-generation NVMe storage.

03

Wi-Fi 7 & 5G LAN

High-speed networking combines Wi-Fi 7 and Realtek 5GbE LAN with USB4 connectivity for fast data transfer and modern wireless performance.

MSI PRO SERIES

Designed for Powerful AMD Systems

From DDR5-8200+ overclocking and PCIe 5.0 to Wi-Fi 7, 5G LAN and USB4, the PRO X870E-P WIFI provides the connectivity and expansion required for high-performance builds.

4 DDR5 DIMM SLOTS
8200+ DDR5 MT/s OC
5.0 PCIe x16
5Gb LAN

Technical Specifications

Processor & Chipset
CPU Socket
AMD Socket AM5
Supported Processors
AMD Ryzen 9000 / 8000 / 7000 Series
Chipset
AMD X870E
Power Design
14+2+1 Duet Rail Digital Power
VCORE Power Stages
14 × 60A Smart Power Stage
SOC Power
2 Phases
MISC Power
1 Phase
CPU Power Connectors
2 × 8-pin
Memory
Memory Type
DDR5 UDIMM
Memory Slots
4 × DDR5 DIMM
Maximum Capacity
256GB
Memory Architecture
Dual Channel
Maximum OC Speed
DDR5-8200+ MT/s
Standard Speed
DDR5-5600 to DDR5-4800
Memory Profiles
AMD EXPO
Memory Type
Non-ECC Unbuffered
CUDIMM
Supported — Clock Driver Bypass Mode
Expansion Slots
PCIe x16 Slots
3 × PCIe x16
Primary PCIe
PCIe 5.0 x16
Secondary PCIe
PCIe 4.0 x4
Additional PCIe
PCIe 3.0 x1
PCIe Source
CPU + AMD X870E Chipset
Ryzen 9000 / 7000
PCIe 5.0 x16
Ryzen 8000
PCIe 4.0 x8 / x4 depending on CPU
Storage
M.2 Slots
3 × M.2
M.2_1
PCIe 5.0 x4 — CPU
M.2_2
PCIe 4.0 x4 — Chipset
M.2_3
PCIe 4.0 x4 — Chipset
M.2_1 Sizes
2260 / 2280
M.2_2 Sizes
2260 / 2280
M.2_3 Sizes
22110 / 2280
SATA
4 × SATA 6Gb/s
NVMe RAID
RAID 0 / 1 / 5
SATA RAID
RAID 0 / 1 / 10
RAID 5
Supported with Ryzen 9000 Series
USB Connectivity
USB 40Gbps
1 × USB Type-C — Rear
USB 20Gbps
1 × USB Type-C — Rear
USB 10Gbps Rear
2 × USB Type-A
USB 10Gbps Front
1 × USB Type-C
USB 5Gbps Rear
2 × USB Type-A
USB 5Gbps Front
4 × USB Type-A
USB 2.0 Rear
4 ×
USB 2.0 Front
6 ×
Networking
LAN Controller
Realtek RTL8126VB
LAN Speed
5Gbps
Wi-Fi
Wi-Fi 7
Wi-Fi Bands
2.4GHz / 5GHz / 6GHz
Wi-Fi Channel Width
Up to 320MHz
Maximum Wireless Speed
Up to 5.8Gbps
Wireless Standard
802.11 a/b/g/n/ac/ax/be
Bluetooth
Bluetooth 5.4
Wireless Features
MLO / 4KQAM / MU-MIMO
Audio
Audio Codec
Realtek ALC897
Audio Channels
7.1-Channel High Definition Audio
Audio Technology
MSI Audio Boost
Display Outputs
HDMI
1 × HDMI 2.1
HDMI Maximum
4K @ 60Hz
USB4 Display
1 × USB4 Type-C / DisplayPort 1.4
USB4 Display Maximum
4K @ 60Hz
Graphics Requirement
Processor with Integrated Graphics
Rear I/O
USB 40Gbps
1 × USB Type-C
USB 20Gbps
1 × USB Type-C
USB 10Gbps
2 × USB Type-A
USB 5Gbps
2 × USB Type-A
USB 2.0
4 ×
LAN
1 × 5GbE RJ-45
Wireless
Wi-Fi 7 + Bluetooth 5.4
HDMI
1 × HDMI 2.1
Clear CMOS
Clear CMOS Button
BIOS
Flash BIOS Button
Audio
HD Audio Connectors
Internal Connectivity
Main Power
1 × ATX_PWR
CPU Power
2 × CPU_PWR
PCIe Power
1 × 8-pin PCIE_PWR
CPU Fan
1 × CPU Fan
Pump / System Fan
1 × Combo Fan
System Fans
6 × System Fan
ARGB
3 × Addressable V2 RGB
RGB
1 × RGB LED Header
Front USB 10Gbps Type-C
1 × Internal Header
Front USB 5Gbps Type-A
4 × Internal Ports
Front USB 2.0
6 × Internal Ports
TPM
TPM 2.0 Header
Cooling & Thermal Design
Heatsink Design
Extended Heatsink Design
MOSFET Thermal Pads
7W/mK Thermal Pads
Choke Thermal Pads
Additional Choke Thermal Pads
M.2 Cooling
EZ M.2 Shield Frozr II
Fan Control
Hardware Monitor / Smart Fan Control
Fan Headers
8 × Fan / Pump Connections
MSI Features
PCIe Installation
EZ PCIe Clip II
M.2 Installation
EZ M.2 Clip II
M.2 Cooling
EZ M.2 Shield Frozr II
Wi-Fi Installation
EZ Antenna
BIOS Update
Flash BIOS Button
Debug
EZ Debug LED
Memory Detection
EZ Memory Detection LED
RGB
Mystic Light
Audio
Audio Boost
BIOS & Software
BIOS
UEFI BIOS
BIOS Update
Flash BIOS Button
Software
MSI Center
RGB Software
MSI Mystic Light
Overclocking
AMD EXPO / MSI EZ OC
Operating System
Supported OS
Windows 11 64-bit
Wi-Fi 7 Requirement
Windows 11 24H2
Physical Specifications
Form Factor
ATX
Dimensions
304.8 × 243.84mm
Dimensions
12 × 9.6 inches
Color
Silver / Black
Product Identification
Model
MSI PRO X870E-P WIFI
Chipset
AMD X870E
Platform
AMD AM5
Series
MSI PRO Series
Form Factor
ATX
MSI PRO X870E-P WIFI AMD X870E • AM5 • DDR5 • PCIe 5.0 • Wi-Fi 7 • 5GbE • USB4 • ATX
